4-36

SPARC Enterprise M8000/M9000 Servers Service Manual • August 2009

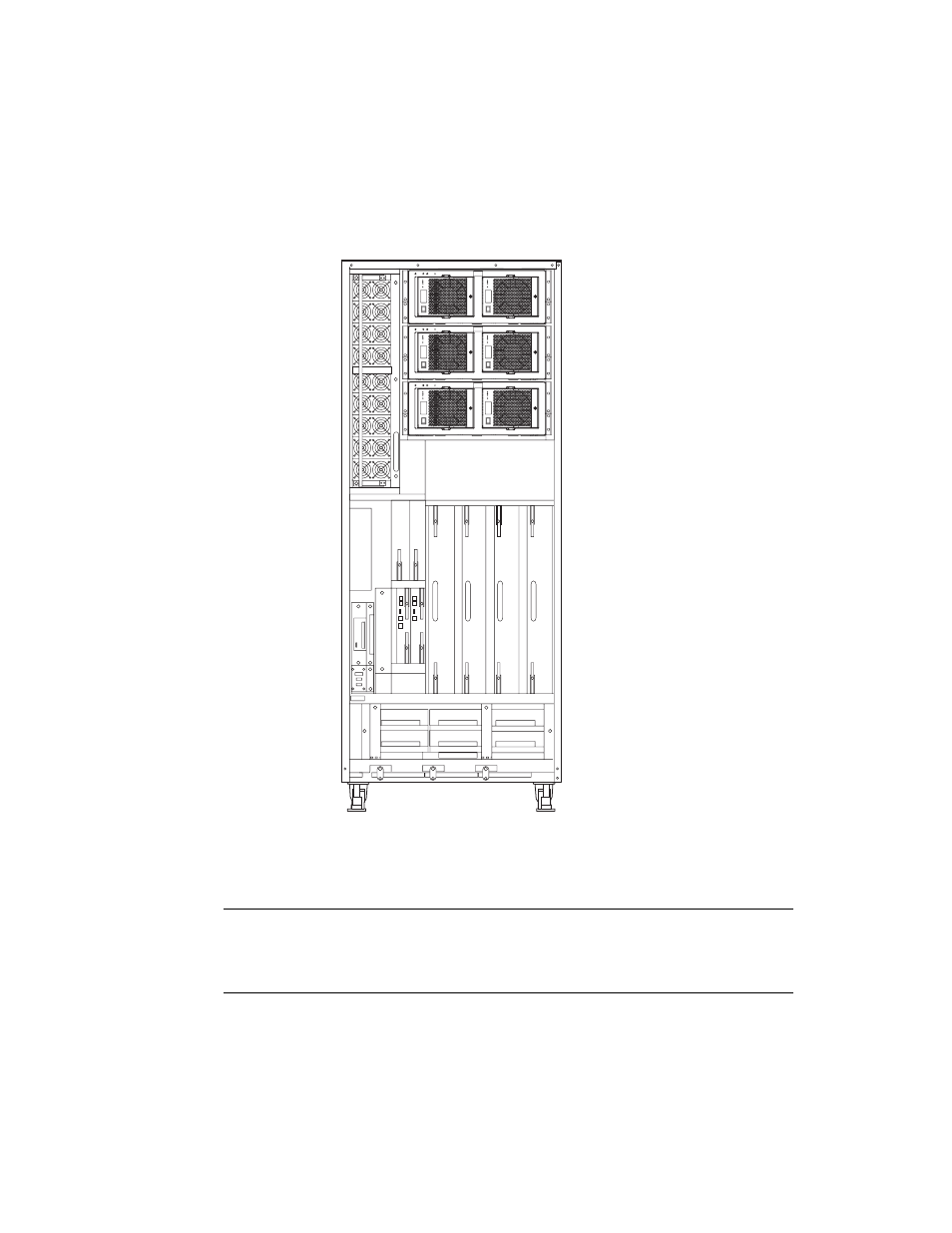

FIGURE 4-10

Example of the External I/O Expansion Units Mounted in the Rack Space for
the SPARC Enterprise M8000 Server (front)

4.7.1.1

Precautions For Cable Routing

Note –

In principle, run LAN cables to the external I/O expansion units along the

route on the right side of the rack (right route). If the total number of LAN cables
exceeds 72, place only 72 of the LAN cables along the right route, and place the
remaining LAN cables along the route on the left side of the rack (left route).
