System Configuration and Startup
3-8
Profile LVS Event Management System Instruction Manual
Resource Setup Tab
In the Resource Setup tab, you can:
H Set the assignment of RS-422 ports and audio banks with crosspoints.
H Enter a compression target value .
H Assign (if desired) a resource for direct playback for the Library Window.
The selected Resource Groups will reflect the decisions made in the Resource
Assign Tab. To enable a Port, Library Playback, or Audio Bank, click on the
corresponding crosspoint check box.

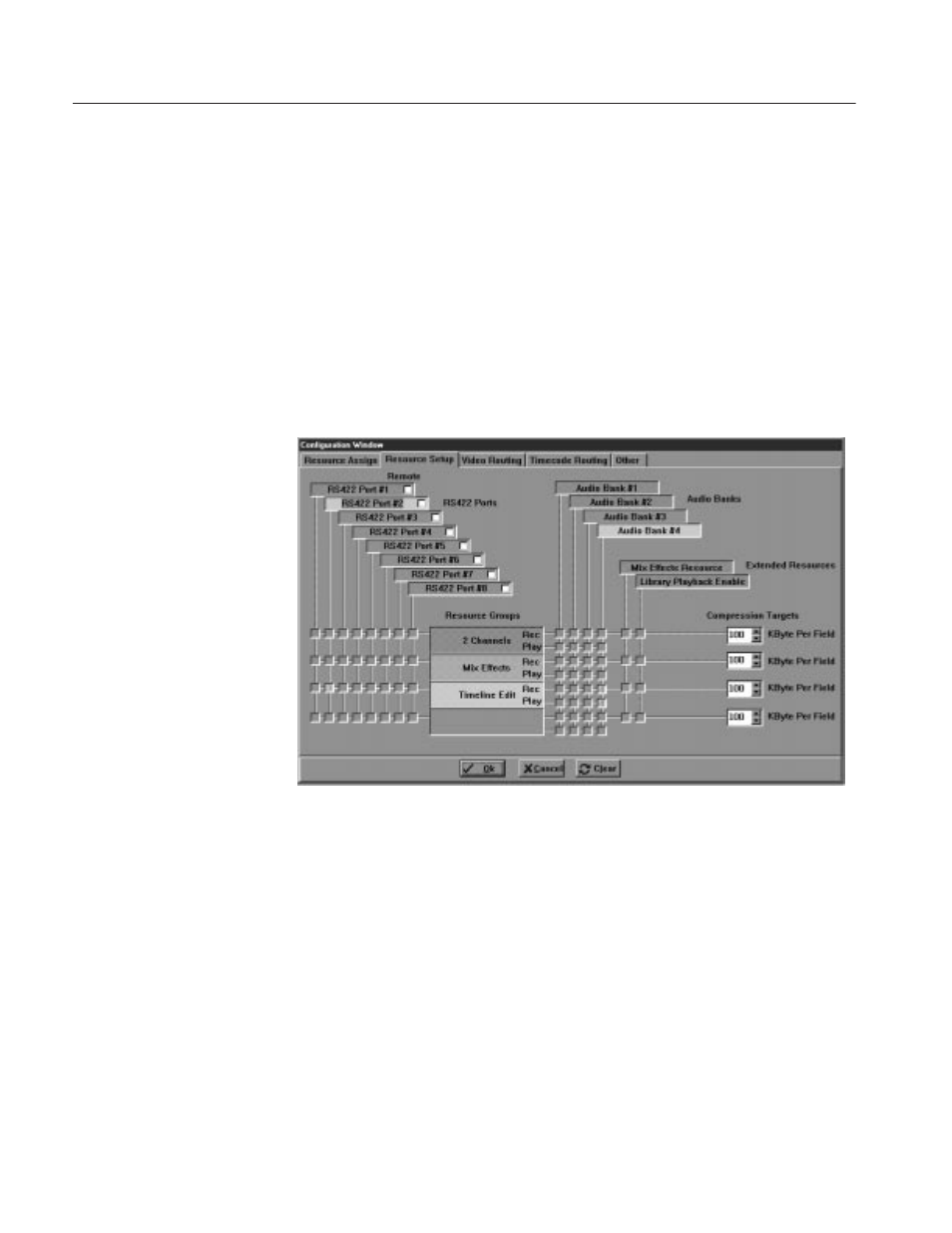

Figure 3-3: Resource Setup Tab
Multiple RS-422 ports can be assigned to one resource. However, commands are
executed from each port in the order in which they were given. For example, the
play function is executed when a Play command is received from one Live
Controller but it immediately stops playing if a Stop command is received from
another Controller. Up to two Live Controllers are allowed for one resource.
One RS-422 port can also be assigned to more than one resource. In this case,
multiple resources can be controlled by one Live Controller.
Assigning RSĆ422 Ports
