Keyboard Removal
With the operation panel open, you can remove the keyboard (A20) without
removing any other modules per the following (see Figure 9–5):
NOTE. If you are using the Live Controller with a serial number J310130 or
higher and if you did not remove the encoder, avoid contact between the
keyboard and the encoder module when you remove the keyboard.
1. Disconnect the cable at J100 on the A20 keyboard.
2. Use the 6 mm Phillips screwdriver to remove the eleven screws securing the
keyboard (A20).
3. While avoiding contact between the keyboard and the encoder unit, remove
the keyboard completely.
J100
A20 Keyboard
Screws M3 6MM,
PNH 11
Cable going to J112 on the CPU board
(W003)
Encoder
(New Type)

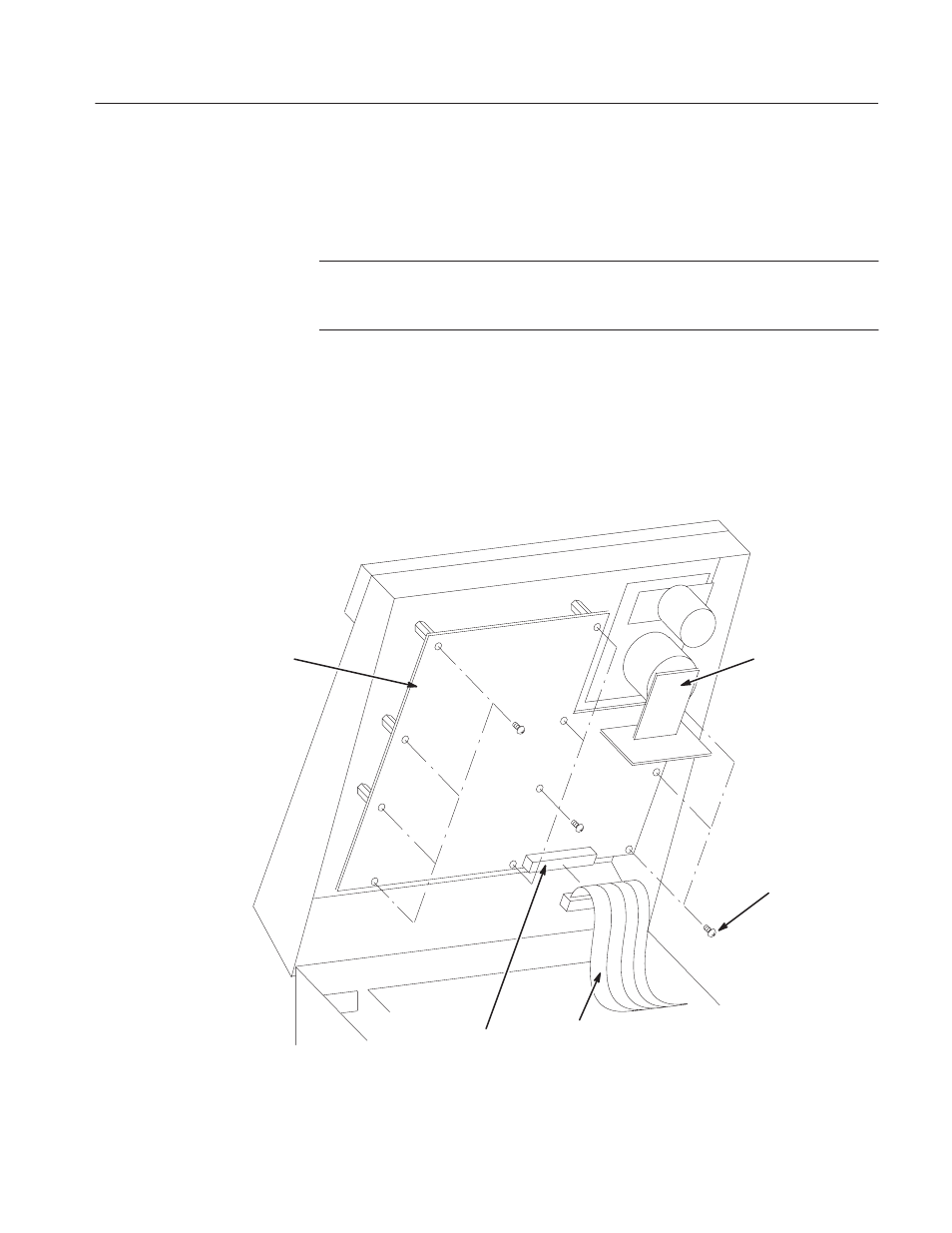

Figure 9-5: Keyboard Removal
