Grass Valley LVS 100 v.3.15 - Manual (Page 84)

Tutorial
2-28
Profile LVS Event Management System Instruction Manual
Target time is a desired total duration of a timeline list. You can set the total
timeline duration and fill empty space with BLACK on each track.
8. Set a target time by following these steps:
a. Click on the Set button. The Target Time Setting dialog box appears.
b. Enter a target time in the form Hours:Minutes:Seconds:Frames. In this
example, enter 00 23 00 00.
c. Click on the OK button.
A blue vertical bar appears on the timeline list, indicating the target time.
9. Fill space within the target time with BLACK.
a. Check the Insert box at lower left part of the window to enter into Insert
mode.
In this mode, empty space is filled with BLACK, and the single audio track
becomes four separate audio tracks. See Figure 2–29.

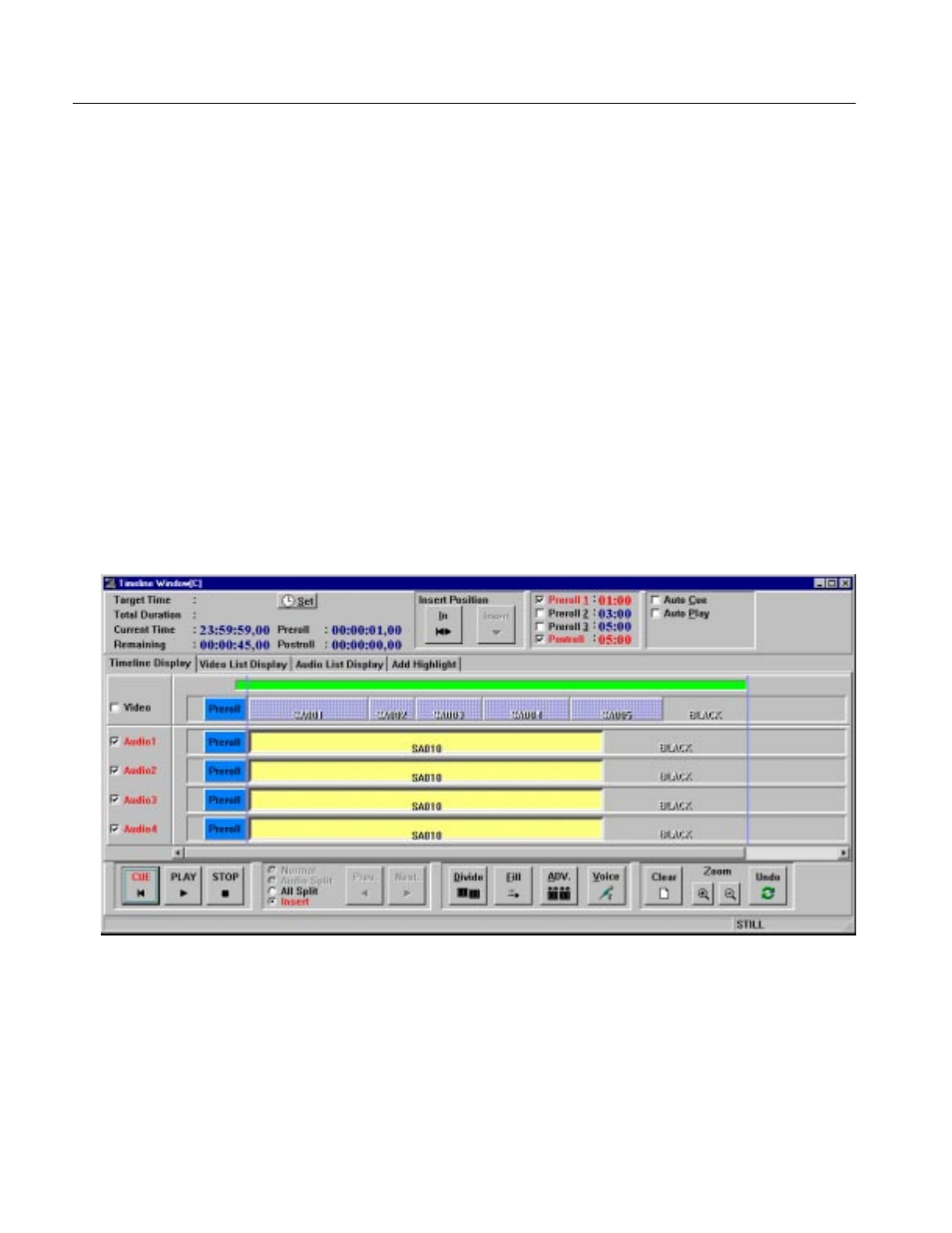

Figure 2-29: Timeline Window in Insert Mode
Remove all events in audio track 3 and 4, and replace with another scenes.
10. Since events cannot be edited in Insert mode, change the mode to All Split
edit by checking the All Split box.
Target Time and Insert
Mode
Editing in All Split Mode
