System Configuration Examples
1-8
Profile LVS Event Management System Instruction Manual
Figure 1–4 shows a configuration example where one operator records and plays
the scenes transmitted synchronously from two cameras. Another operator can
perform timeline edit and video file functions with the GUI.
Input A
Input B
Output B
Output C
Output D
SVGA, Keyboard, Mouse
RS-422
Output C: Timeline edit
Output D: Video file
Input A, B: Recording
Output A, B: Slow–motion playing

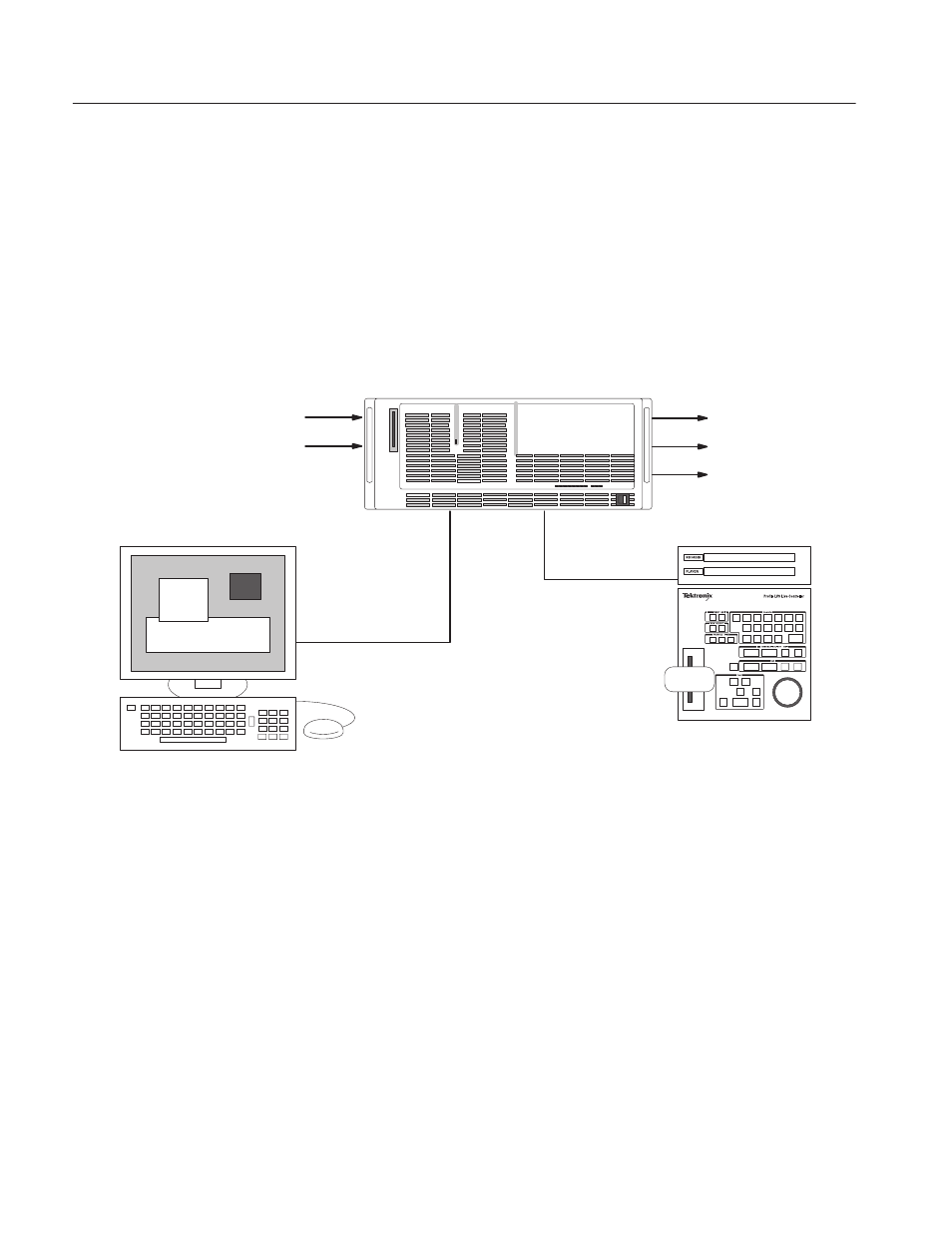

Figure 1-4: Configuration Example #4 (Two Operators)
The preceding examples show some of the flexibility of the Profile LVS Event
Management System. Many other configurations are possible.
