System Configuration Examples
1-6
Profile LVS Event Management System Instruction Manual

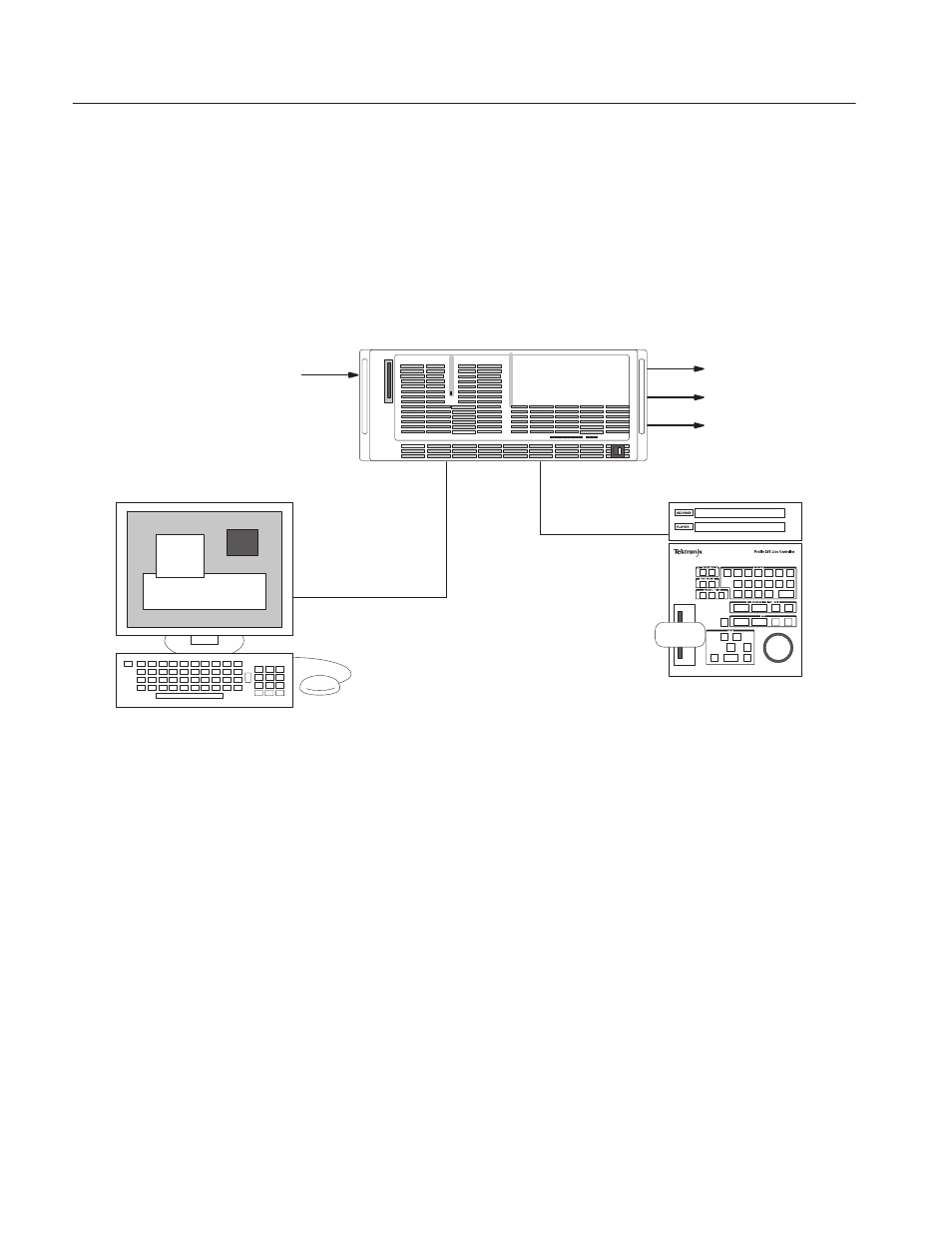

Figure 1–2 shows a configuration consisting of one Live Controller, one SVGA
monitor, one keyboard, and one mouse. In this configuration example, one
operator can be editing scenes on the SVGA monitor while performing record
and replay/slow–motion playback functions.
Input A
Output A
Output B
Output C
SVGA, Keyboard, Mouse
RS-422
Output B: Timeline edit
Output C: Video file
Input A: Recording
Output A: Slow–motion playing
Figure 1-2: Configuration Example #2 (One Operator)
