Profile LVS Event Management System Instruction Manual
8-1
Lever Adjustment
The Lever Unit is the only moveable module in the Live Controller. Periodically,
and after replacement, the procedures below should be performed to calibrate the
Lever’s mechanical and electrical positions.
For these adjustments, no external equipment or cable is required.
About Lever Operation
The lever (or slow–motion lever) is used to change the play speed according to
the position of the lever.

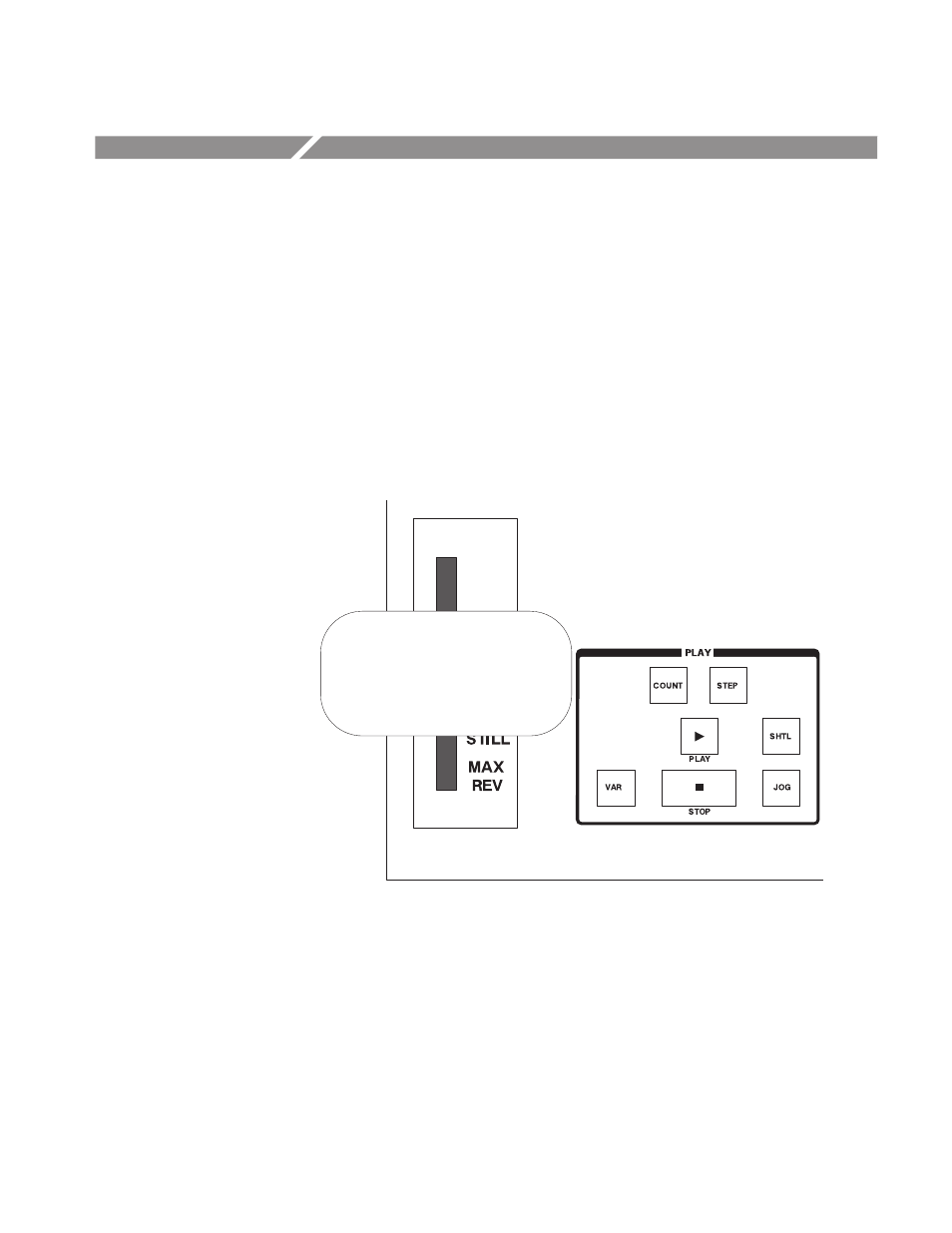

Figure 8-1: Slow-motion Lever
The lever has lock mechanisms which allow you to operate within a range
between 0 and +1.0 play speed, and spring mechanisms which allow you to
change the play speed within the range from –| Max Shuttle Speed |, –3.0 to 0
then to +3.0, +| Max Shuttle Speed |. These operations are illustrated as shown
in Figure 8–2.
