Figure 10-8: diagram – Grass Valley LVS 100 v.3.15 User Manual
Page 338
Replaceable Parts
10-12
Profile LVS Event Management System Instruction Manual
Replaceable Parts List
Component
Number
TektronixPart
Number
Serial No.
Effective
Serial No.
Discont'd
Qty Name & Description
W002
174-3701-00
1
CA ASSY,SP,ELEC: 6,22AWG 200MM
W003
174-3702-00
1
CA ASSY,SP,ELC:26,28AWG 250MM L,FLAT
W004
174-3703-00
1
CA ASSY,SP,ELEC:10,26AWG 450MM L
W005
174-3704-00
1
CA ASSY,SP,ELEC:10,28AWG 200MM L,FLAT
W006
174-3704-00
1
CA ASSY,SP,ELEC:10,28AWG 200MM L,FLAT
A50
A50

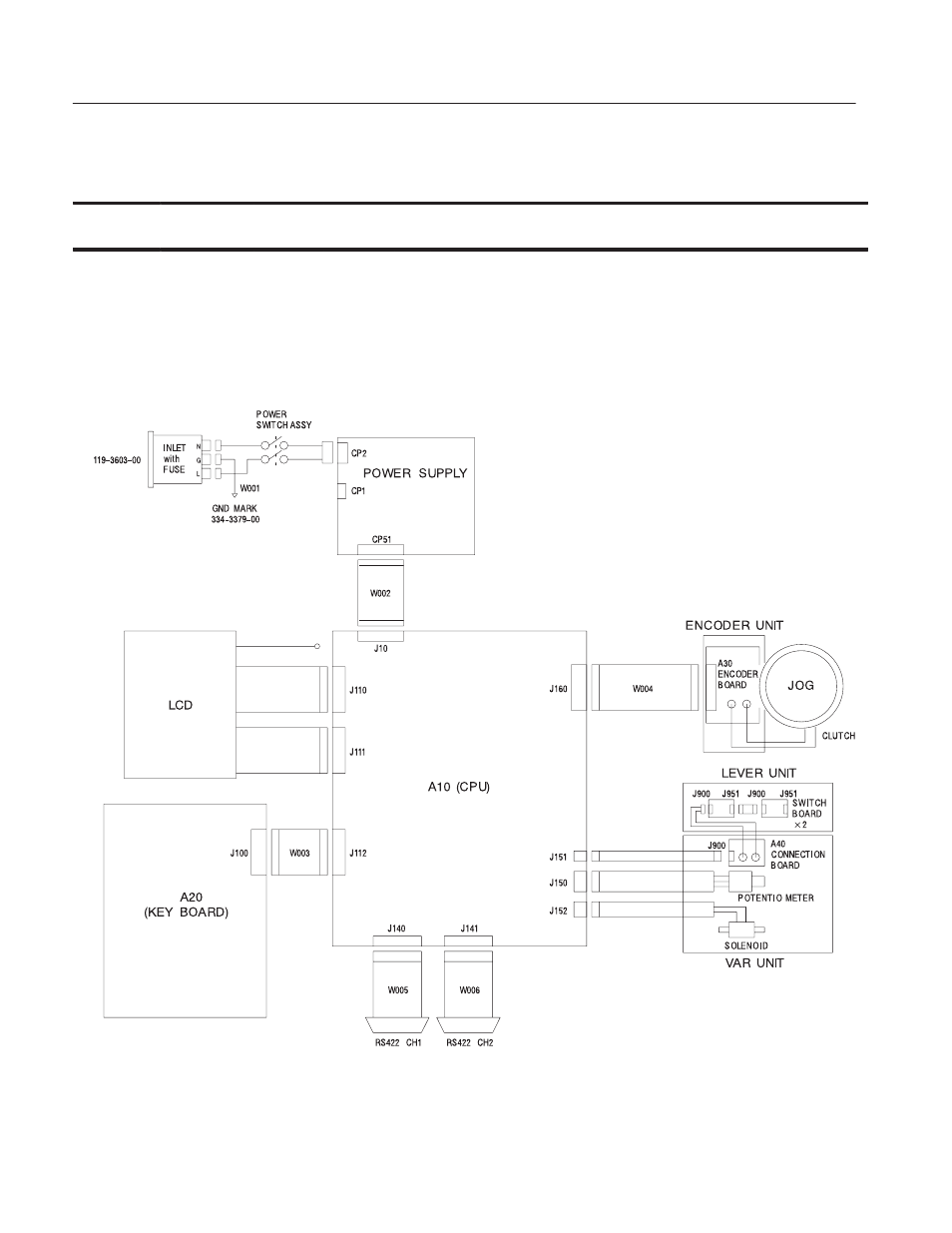

Figure 10-8: Diagram
