Tutorial
2-12
Profile LVS Event Management System Instruction Manual

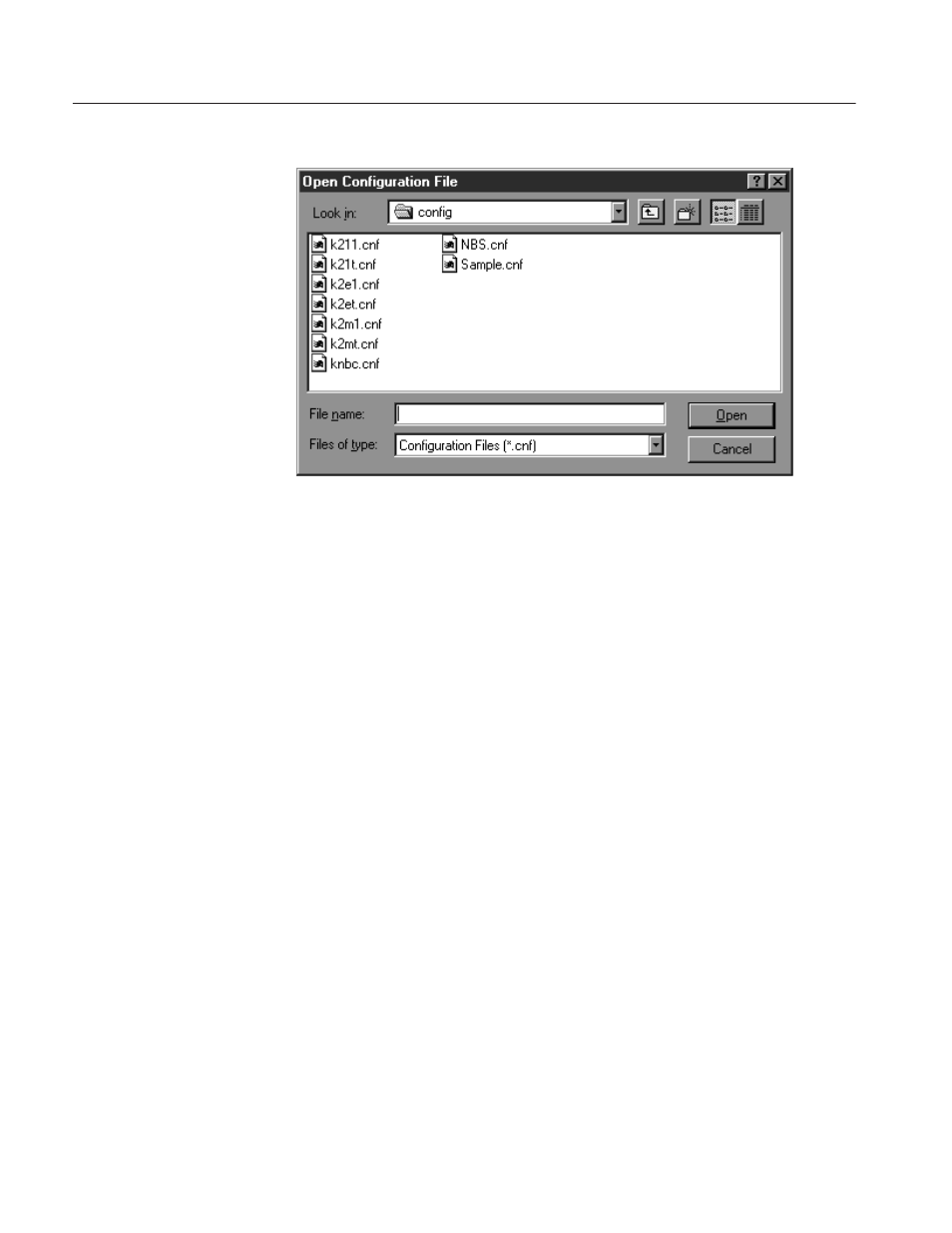

Figure 2-11: Open Configuration File Dialog Box
10. Click the OK button to open the file.
After clicking on the OK button, the Configuration Window will close and you
will return to the Main window (see Figure 2–1 ).
11. Click the Start button in the Main window.
The Timecode Preset dialog box, shown in Figure 2–12, appears.
12. Preset the time code for this session.
The Profile system’s internal timecode generator is used for the LVS Event
Management System. This dialog box allows you to set an initial value for
this internal generator.
When you check Manual Timecode Set, the value entered in the Preset
Timecode field is from the internal time code generator.
Checking the Auto Jam Timecode, configures the system to read an
external LTC input (LTC Port #1) on start–up. The value read from this
external LTC is used to initiate (or jam) Profile’s internal time code
generator. This is useful for syncing the system up to a time-of-day signal in
a broadcast facility. Accuracy may be a few frames from house time-of-day.
In this example, the time code starting from 00:00:00:00 is used for
simplicity.
a. Confirm that the Manual Timecode Set is checked. If not, check it.
b. Click on the OK button.
Start Operation
