Audio Monitor Window
4-88
Profile LVS Event Management System Instruction Manual
Tuning Audio Level
1. Click on the
B button at lower left part of the window to reveal the level
controls when you want to adjust the levels.
2. Adjust the level independently on each track by dragging the faders or
clicking on the UP and DOWN arrow buttons.
Selecting Group Control allows you to control four tracks together.
Clicking the 0 button to the left of the faders resets the levels to 0 dB.
3. Click on the
Y button to hide the faders and return the extended window to
its original size.

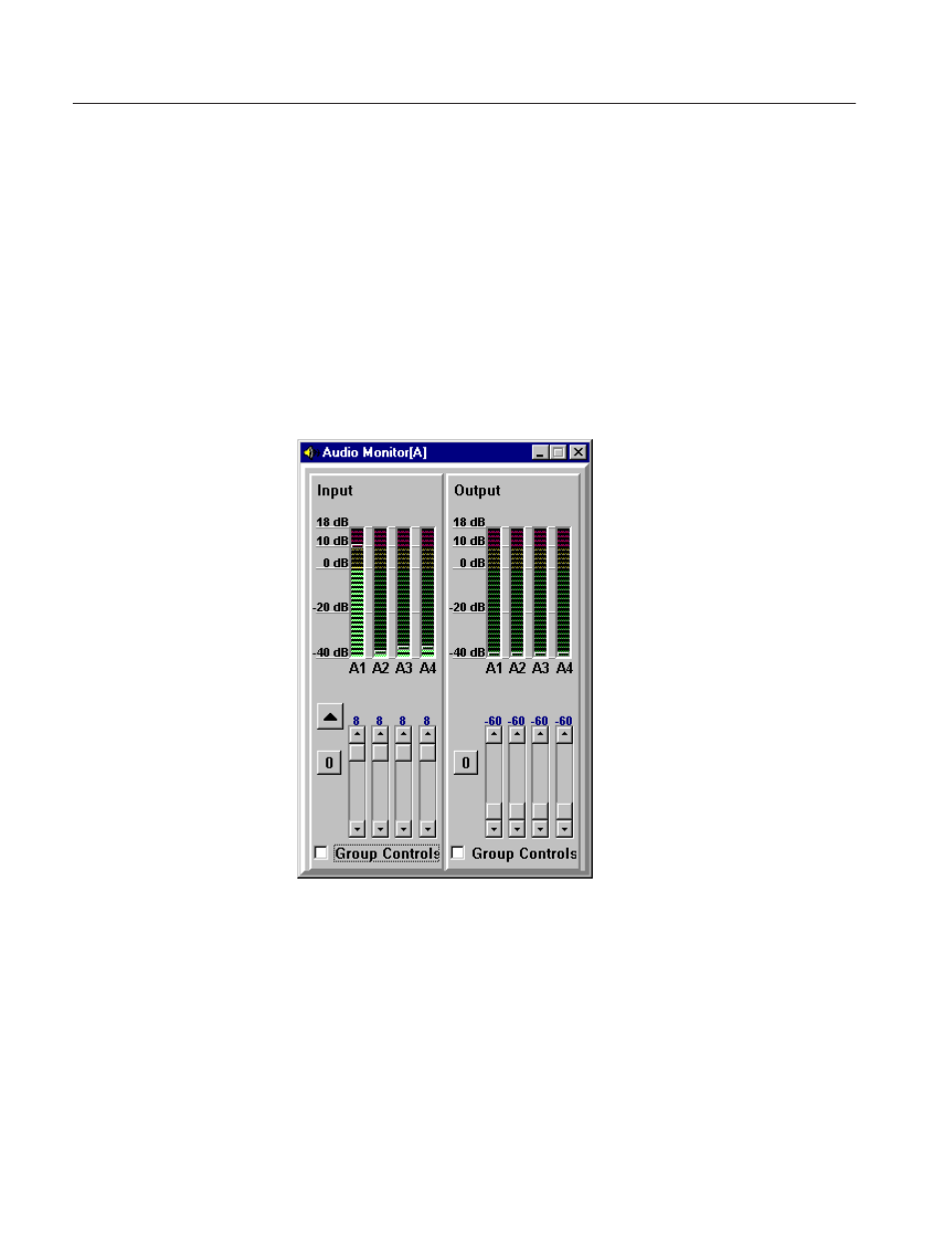

Figure 4-48: Audio Monitor Window with Faders
