Profile LVS Event Management System Instruction Manual
5. Assign video inputs and outputs.
a. Click Video Routing to open the Video Routing tab (see Figure 2–7).
b. For each resource, click on a crosspoint and assign a video input and
output.
In the example in Figure 2–7, input from the Composite-InA-J5 is
distributed to: the 2 Channels resource (A group), the Extra Channel
resource (B group), and the Timeline Edit resource (C group), at the
same time.
The outputs are distributed as follows:
D From the 2 Channels resource (A group) to the Composite-OutA-J11
and Composite-OutB-J11.
D From the Extra Channel resource (B group) to Composite-OutC-J11.
D From the Timeline Edit resource (C group) to Composite-OutD-J11.

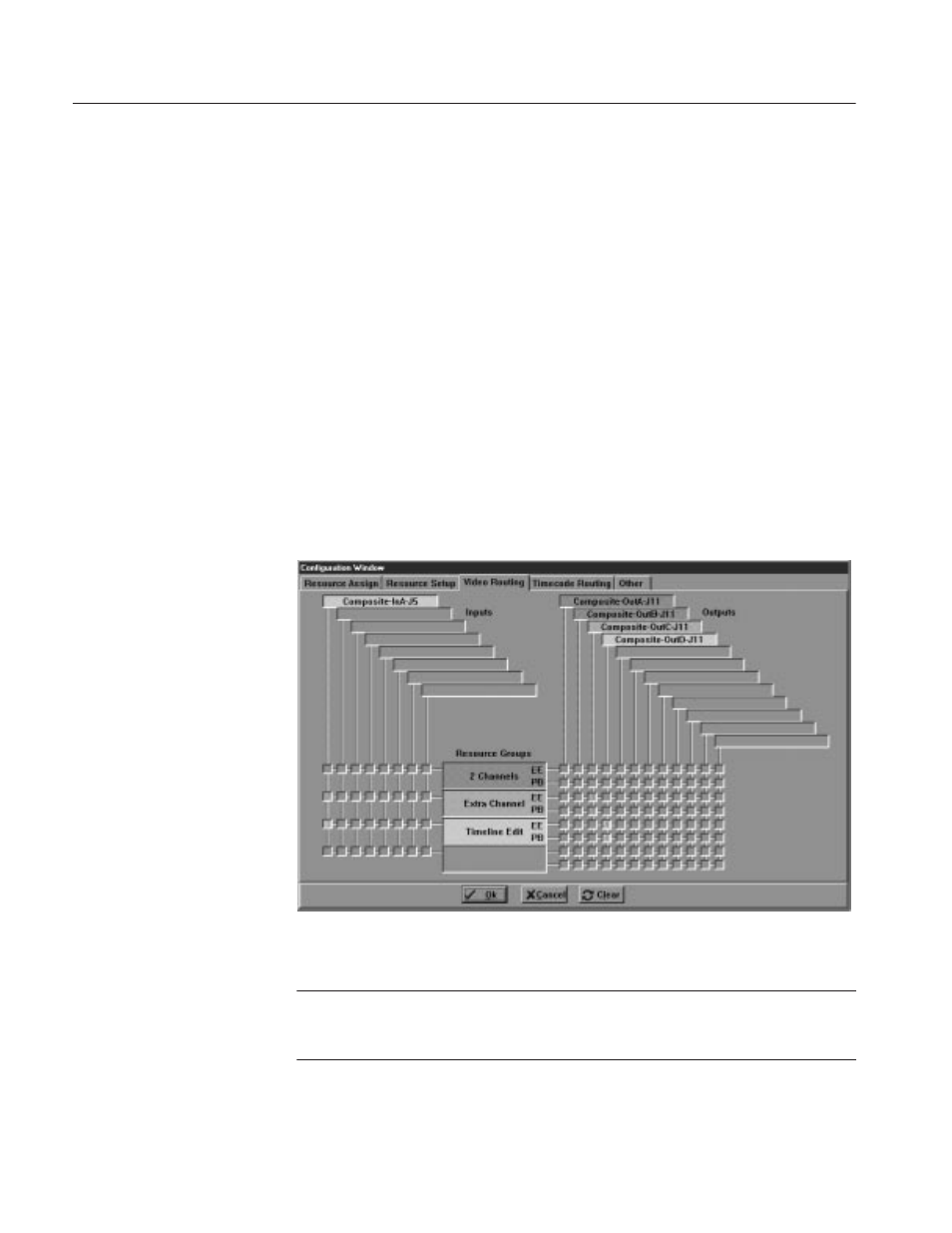

Figure 2-7: Video Routing Tab  Configuration Window
ACG.. More than one output connector can be assigned to one resource. The
video from the specified resource will be present on all the selected output
connectors.
Input and Output
