Lever Adjustment
8-2
Profile LVS Event Management System Instruction Manual
MAX
FWD
N (Lock) STILL
(Lock)
MAX
REV
Spring
Area
Spring
Area
+1 to 0
Speed Area
FWD
SPRING
REV
SPRING

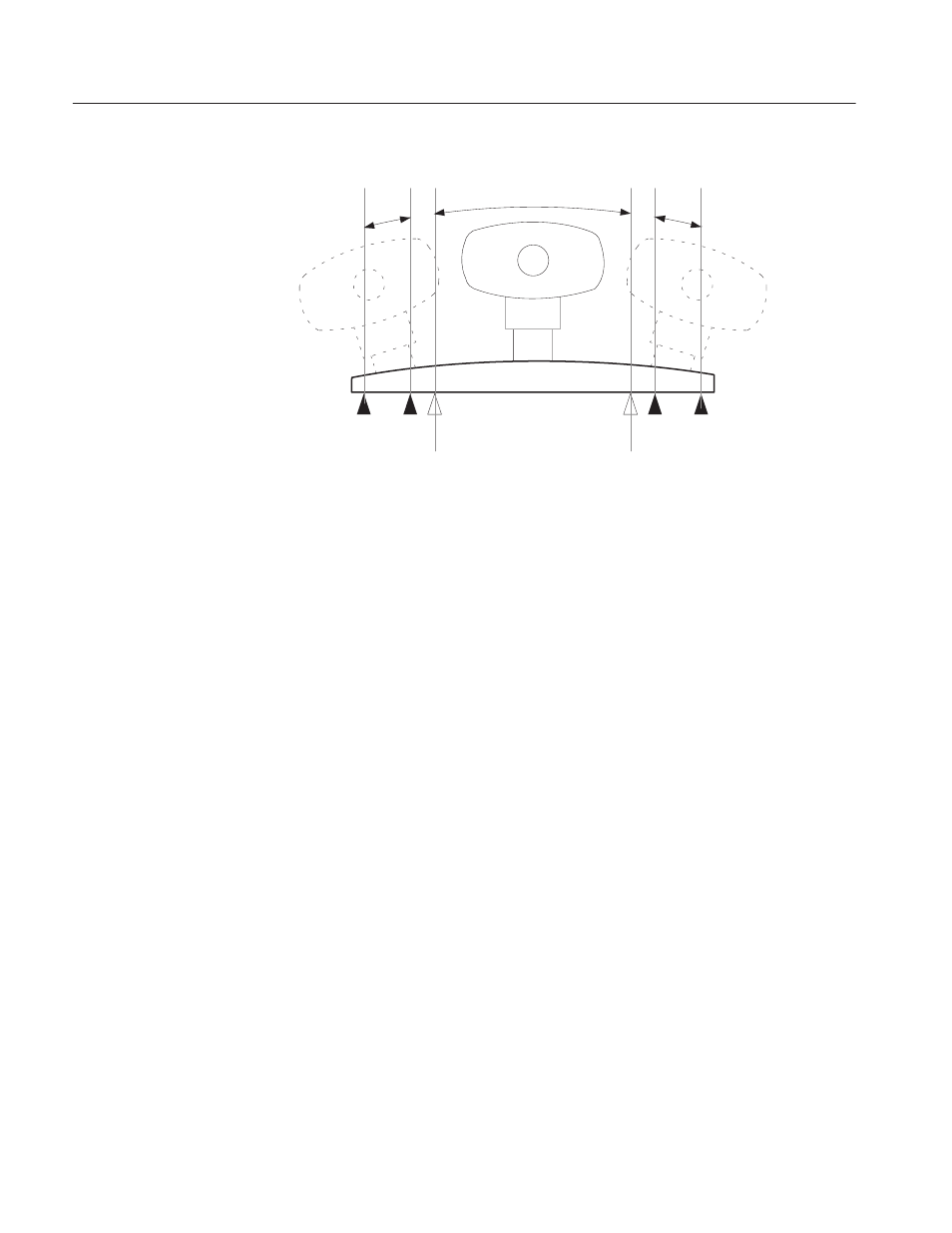

Figure 8-2: Lever Position and Control of Play Speed
The Live Controller controls the play speed by electrically detecting the lever
positions as you move it. To control play speed correctly, the electrical positions
of MAX FWD, FWD SPRING, N (Lock), STILL (Lock), REV SPRING and
MAX REV have to be adjusted to match those mechanical positions.
Before Starting the Adjustment
A 20 minute warm up period is required prior to performing the adjustment.
Warm up
