Removal and Installation Procedures
9-10
Profile LVS Event Management System Instruction Manual
CAUTION.
When you install the lever, do not over tighten the screw securing the lever.
Otherwise, the screw head may be broken when you try to remove that screw in the lever
removal procedure.
NOTE. The current lever type (serial number J310130 or higher) can be used on
all Live Controllers. However, the early lever type (before serial number
J310130) cannot be used for Live Controllers serial number J310130 and higher.
If you are using the early type Live Controller and want to replace the lever,
order the current lever type. For more details, refer to Replaceable Part Lists
starting on page 10–1.
Bracket which supports the operation panel (top
cover) to leave it open. When you remove the
LCD module, you also remove this bracket. Refer
to Procedures for LCD Module on page 9-18.

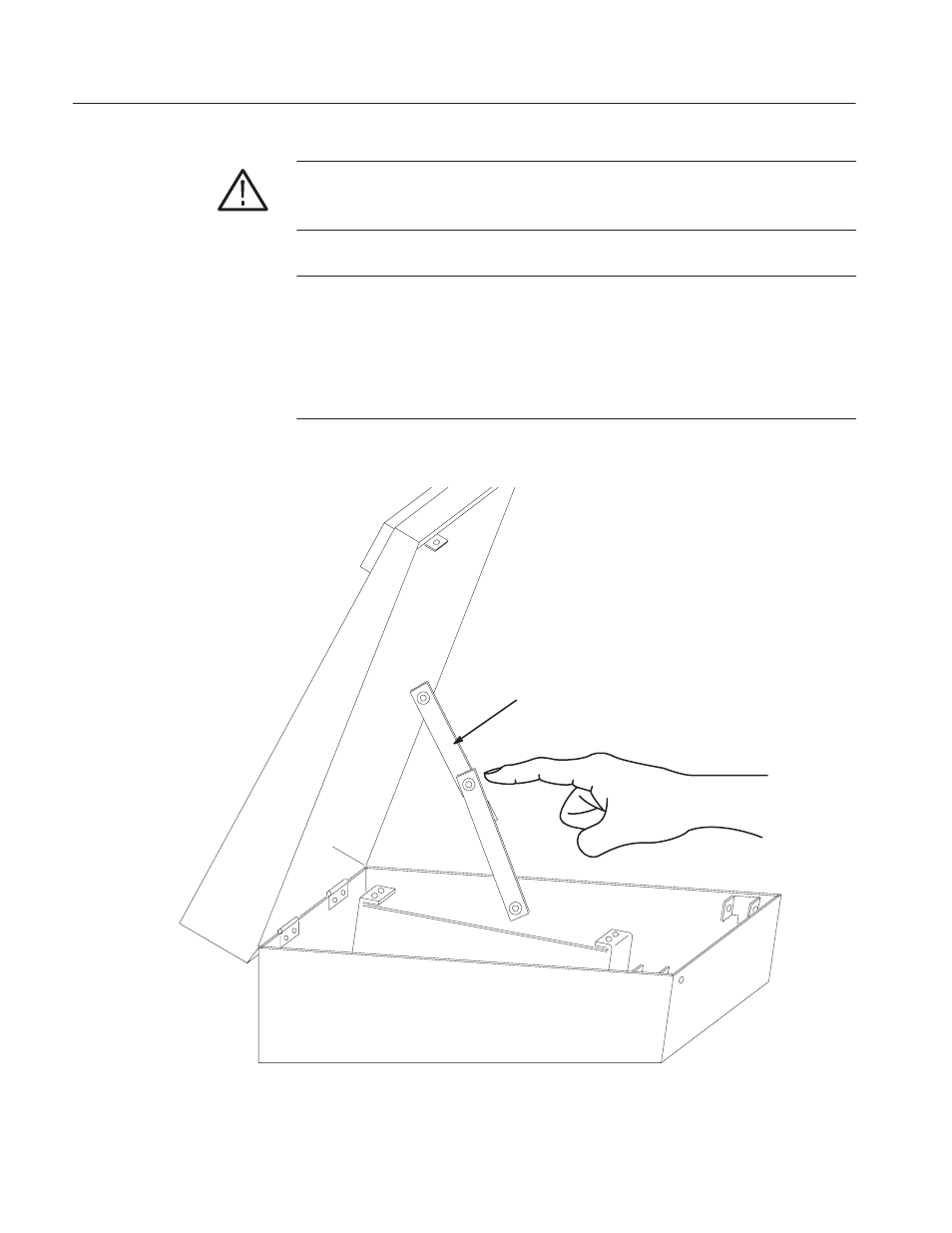

Figure 9-3: Open the Operation Panel and Straighten the Bracket
