Profile LVS Event Management System Instruction Manual
2-11
8. Click on the Save button to open the Save Configuration File dialog box as
shown in Figure 2–10.
To save the current configuration settings:
a. Select the drive and then the directory where you are going to save the
configuration file.
b. Enter file name in the File name text box. The file name extension must
be .cnf.
c. Click on the Save button.

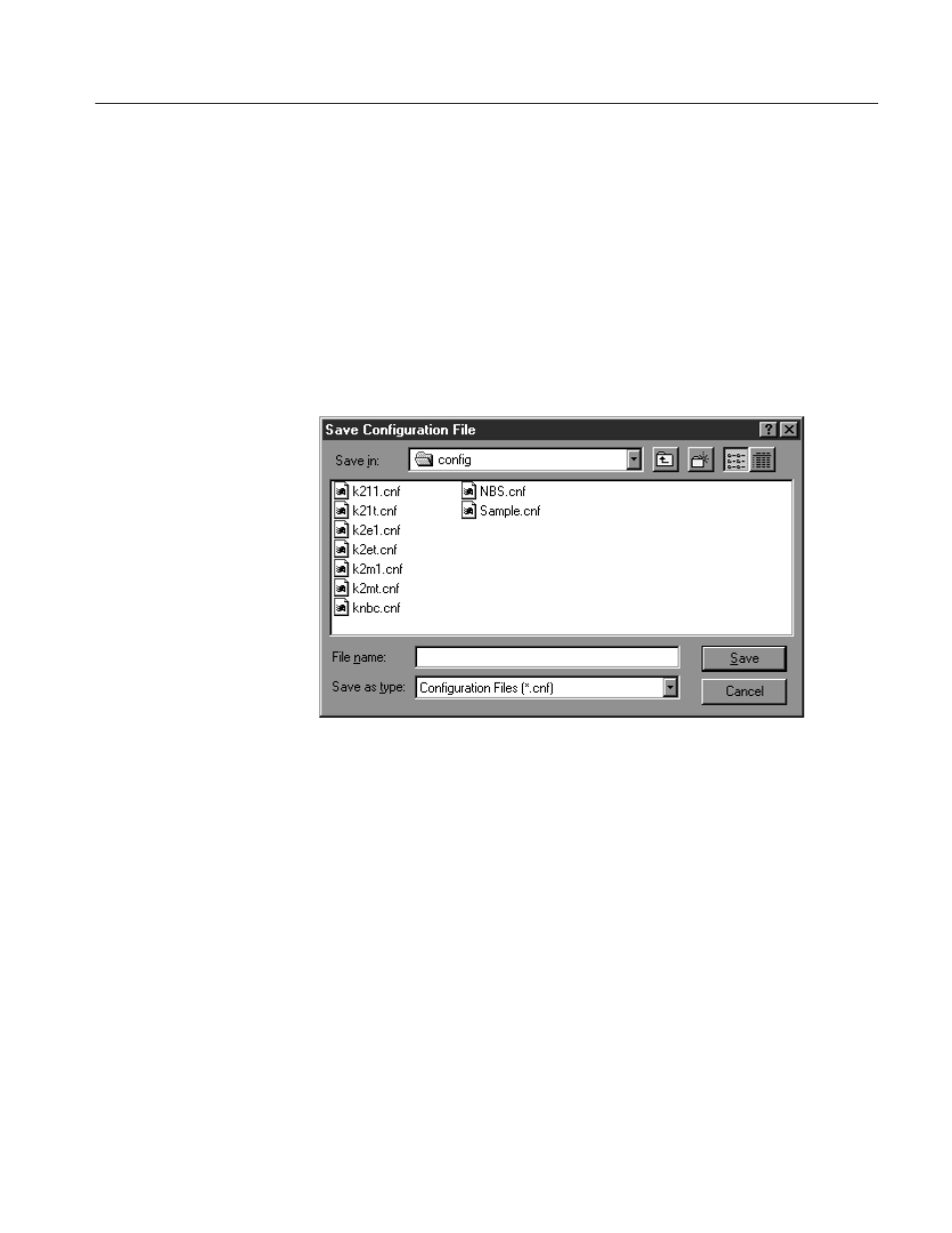

Figure 2-10: Save Configuration File Dialog Box
9. Click on the Load button to open the Open Configuration File dialog box as
shown in Figure 2–11.
To recall a configuration file:
a. Select the drive and then the directory containing the configuration (.cnf)
file you wish to recall (load).
b. Select the configuration file.
c. Click on the Open button.
After clicking on the Open button, the settings in the Configuration window
will be replaced with the settings in the file.
Save
Load
