System Configuration Examples
Profile LVS Event Management System Instruction Manual
1-7

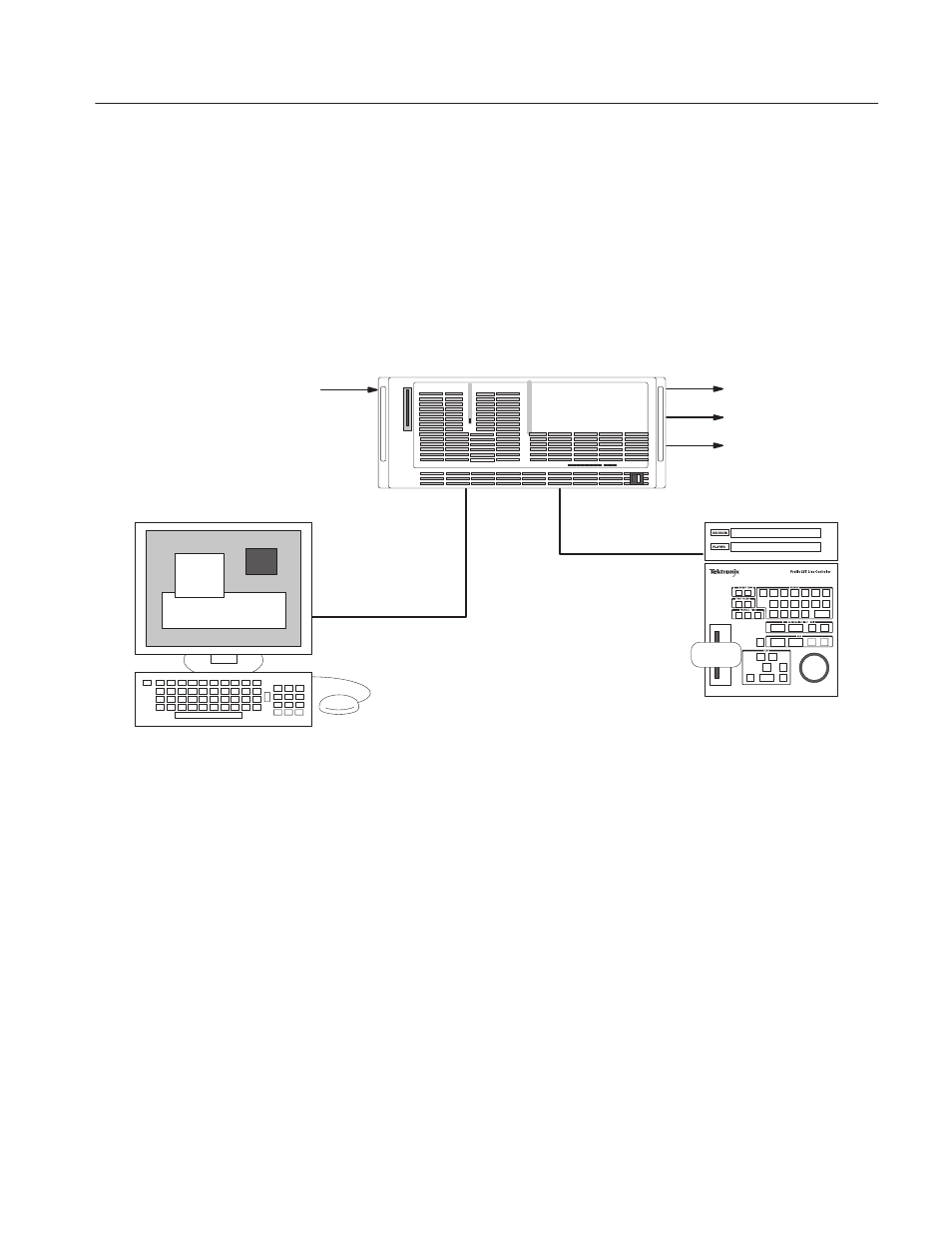

Figure 1–3 shows a configuration example where replay/slow–motion playback
and edit operations are assigned to two operators.
Input A
Output A
Output B
Output C
SVGA, Keyboard, Mouse
RS-422
Output B: Timeline edit
Output C: Video file
Input A: Recording
Output A: Slow–motion playing
Output A: Operations for events
Operator A Operator B
Figure 1-3: Configuration Example #3 (Two Operators)
