System Configuration and Startup
Profile LVS Event Management System Instruction Manual
3-11
Timecode Routing Tab
The Timecode Routing tab allows you to select the timecode types for each
resources.

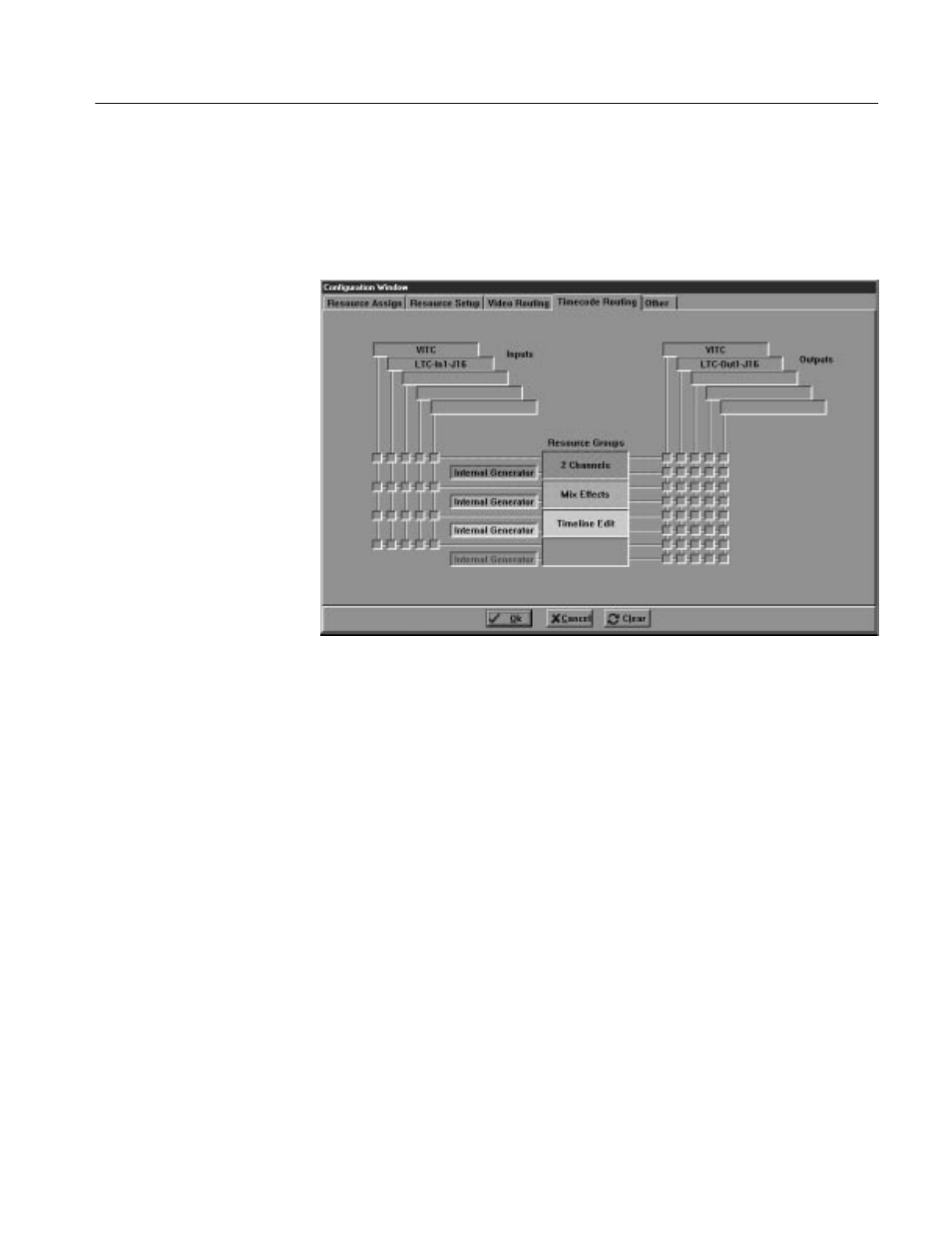

Figure 3-5: Timecode Routing Tab
About Timecodes
Use the Inputs crosspoints to select your external timecode source. This
timecode is used for operations described in the next section, External Timecode.
Timecode from the internal generator is used in situations described in Internal
Timecode.
Use the Outputs crosspoints to select the type of timecode output for each
resource.
Simple record and playback operations are performed based on the external
timecode. Select the desired external timecode source (VITC or LTC). This
timecode (original timecode) will be recorded and attached to the corresponding
video material.
The upper input line of each resource represents the external timecode channel.
External Timecode
