Timecode Offset Window
5-4
Profile LVS Event Management System Instruction Manual
Timecode Offset Window (Enhanced Feature Set Only)
The Profile internal timecode generator can be set to match the timecode of an
external source by enabling Jam Sync. However, there is usually an error of one
or several frames when setting the internal generator. To correct for this kind of
error on each channel, timecode offset can be set manually or automatically.
The timecode offset is used:
H To search by absolute timecode.
H To output timecode from the Profile system in sync with source timecode.
To open the Timecode Offset window, click on the Timecode Offset button in
the Launcher.
Timecode Offset
Button

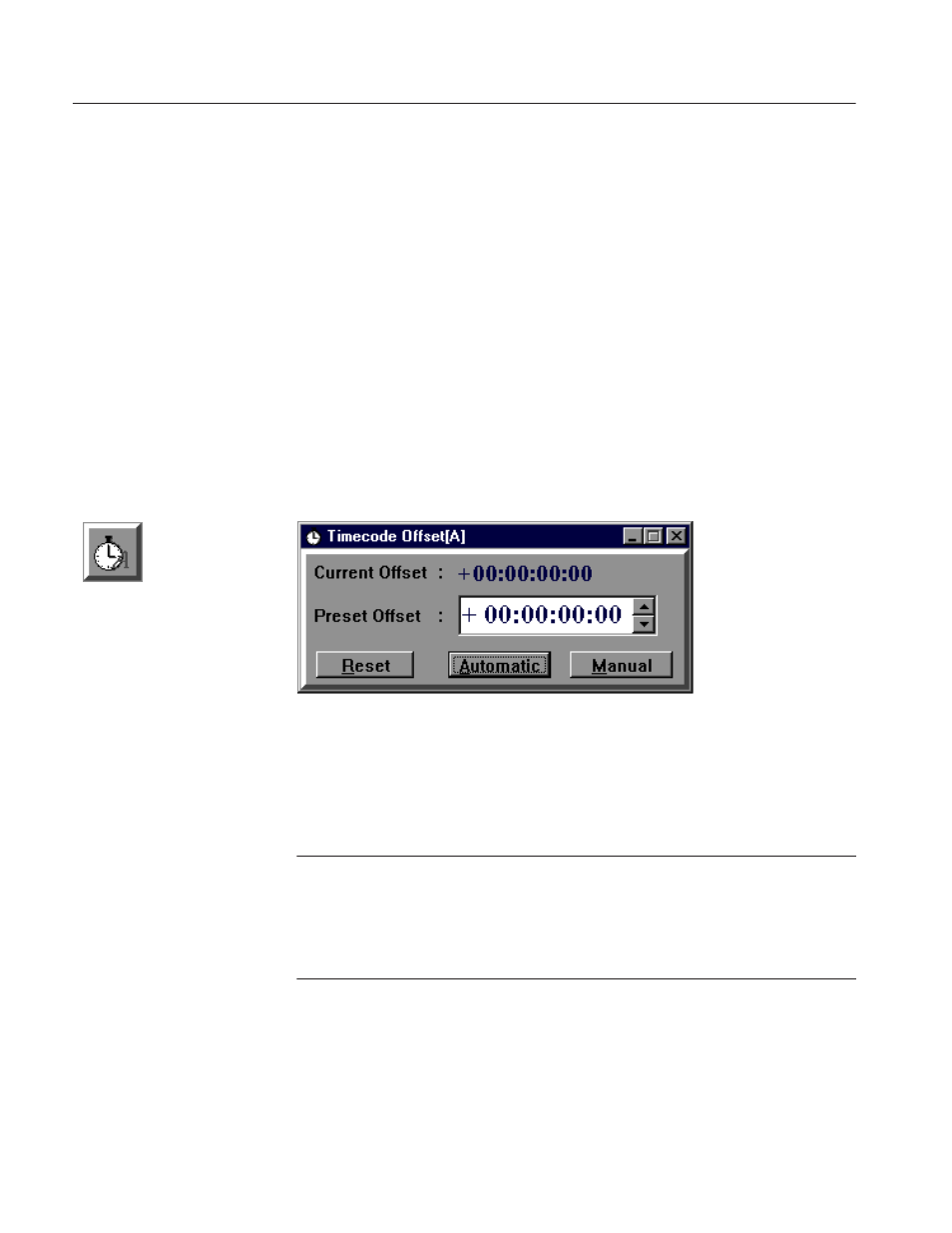

Figure 5-4: Timecode Offset Window
In LVS software calculates the difference between the internal and external
timecodes. This allows the system to locate recorded material based on external
timecode.
ACG.. This feature cannot be used for the Playlist, Library and Timeline
windows.
Even if you set a timecode offset, the timecodes displayed in the SVGA monitor
or monitor of the Live Controller are still internal timecode. The internal
timecode should be used to set an IN point when you desire to set it by timecode.
For a description of timecodes used for Profile operation, refer to Timecode
Routing Tab on page 3–11.
