Rockwell Automation 1336E IMPACT Adjustable Frequency AC Drive User Manual V 1-4.XX User Manual
Page 382

C-6
Using the Human Interface Module (HIM)
5. To change the value of bit 3 from a 0 to a 1, press either INC or
DEC:
6. Press ENTER to save your changes and exit the bit definitions.

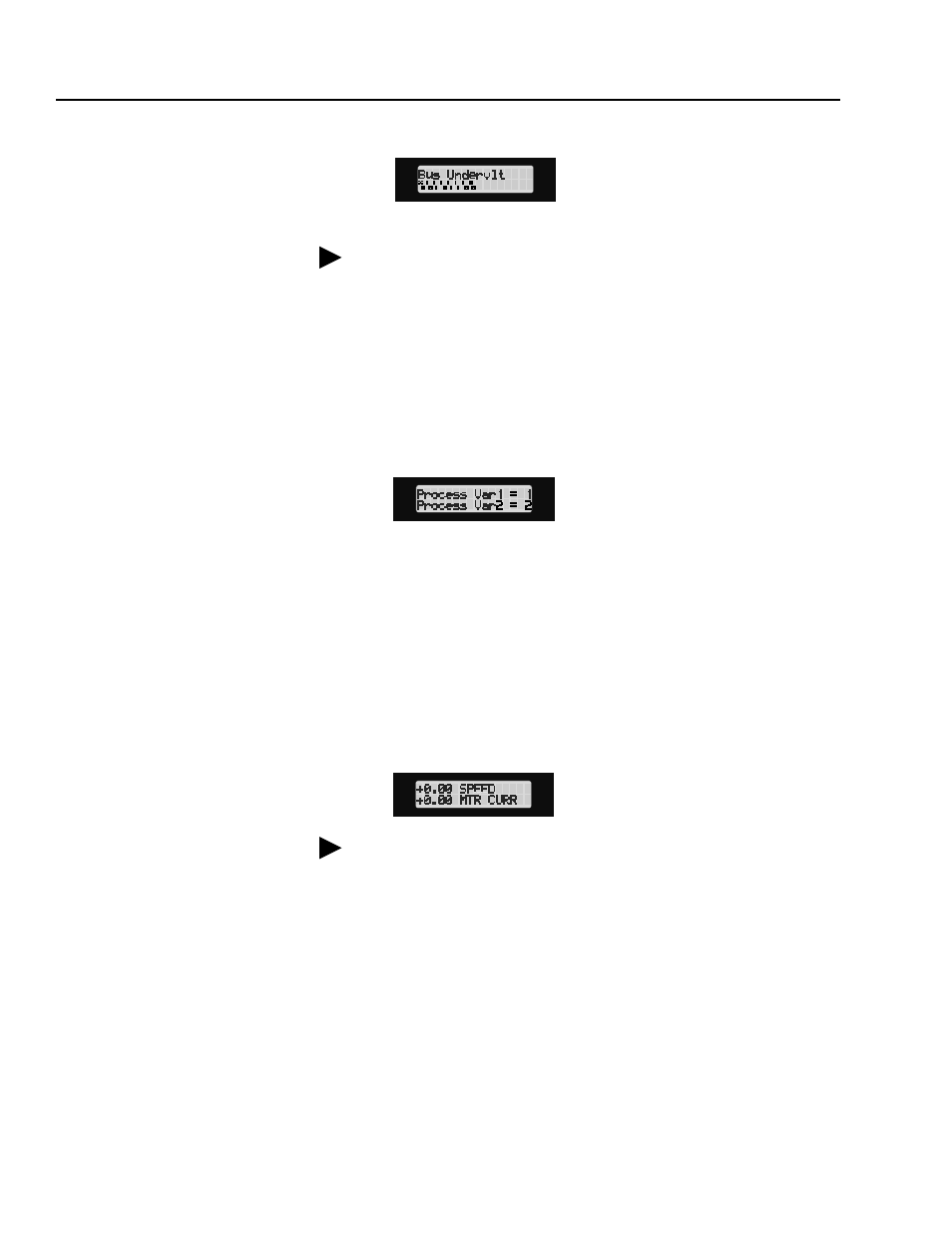

Using the Process Mode
Process mode lets you monitor the values of two processes at one
time. To use Process mode, you need to:
1. Press any key from the status display. Choose Mode is shown.
2. Press INC or DEC to show Process.
3. Press ENTER. The following is displayed:
4. Decide which two of the following processes you want to
monitor:
5. Press INC or DEC to change the value of process variable 1.
6. Press SEL.
7. Press INC or DEC to change the value of process variable 2.
8. Press ENTER. You should see a display similar to the following:
To exit Process mode, press the Escape key.
If the cursor is a blinking underline instead of a flashing character,
you are either in Display mode or are trying to change a read-only
parameter.
1
Speed
4
Power
2
Motor current
5
Torque
3
Motor voltage
6
Frequency
If you want the Process Display to appear when drive power is
applied, simultaneously press the increment and decrement keys
while the Process Display is active.
