Starting Up Your System
6-5

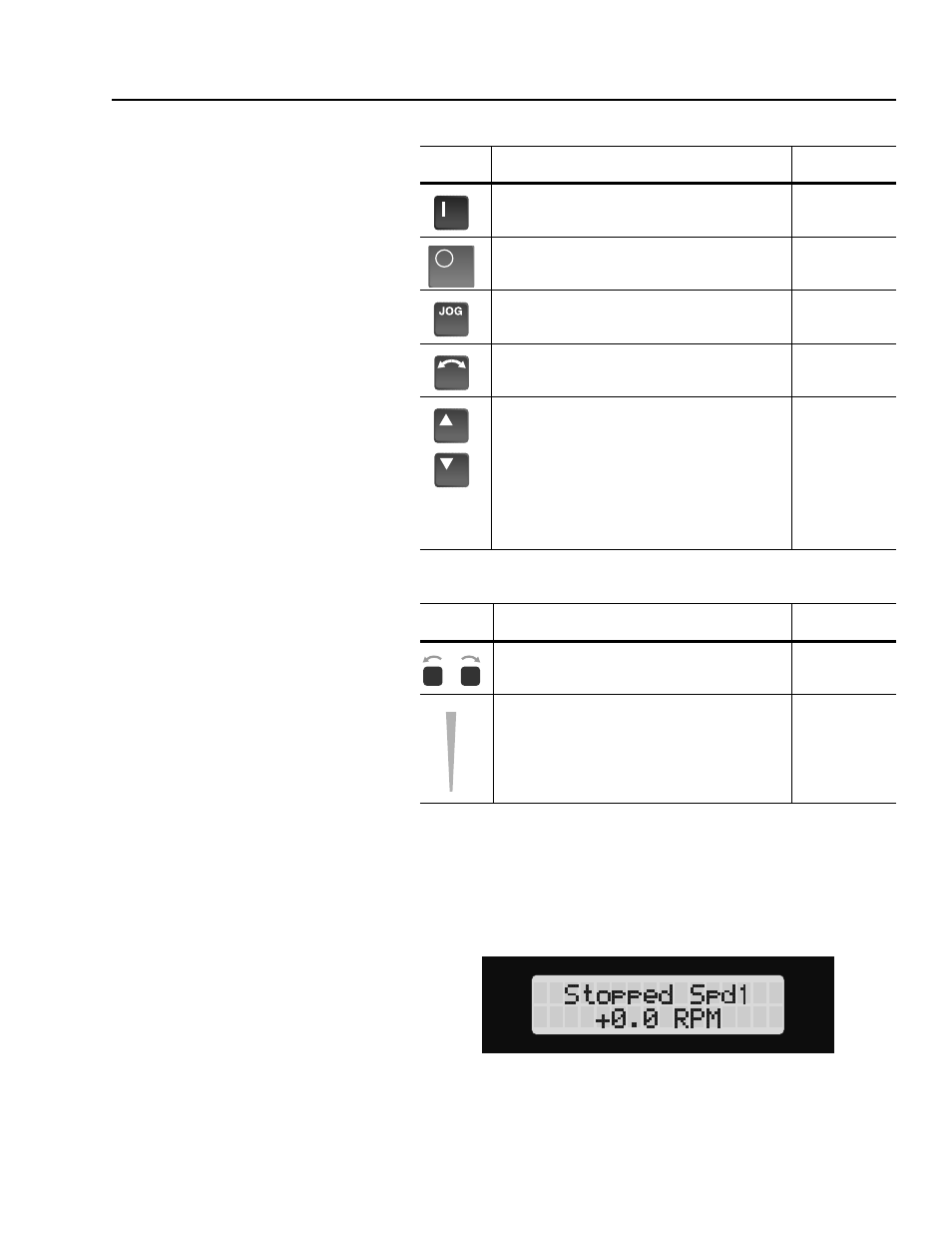

The HIM provides the following keys for the control panel section:
The control panel section also provides the following indicators:
When you first apply power to the 1336 IMPACT drive, the HIM
cycles through a series of displays. These displays show the drive
name, HIM ID number, and communication status. When complete,
the status display shown in Figure 6.2 is displayed.
Figure 6.2
Initial Status Display
The display shows the current drive status or any faults that may be
present. During the start up procedure, you will need to answer the
questions that are displayed in the status display area.
Press this
key:
To:
This key is
referred to as:
Start operation if the hardware is enabled and no
other control devices are sending a Stop command.
The Start key
Initiate a stop sequence.
The Stop key
Jog the motor at the specified speed. Releasing the
key stops the jog.
The Jog key
Change the motor direction. The appropriate
Direction Indicator light will light to indicate direction.
The Change
Direction key
Increase or decrease the HIM speed command. An
indication of this command is shown on the visual
Speed Indicator.
Pressing both keys simultaneously stores the current
HIM speed command in HIM memory. Cycling power
or removing the HIM from the drive sets the speed
command to the value stored in HIM memory.
These arrows are only available with digital speed
control.
The Up Arrow
and Down Arrow
keys
This
indicator:
Provides information about:
This is referred
to as:
The direction of motor rotation.
The Direction
LED
An approximate visual indication of the command
speed. This indicator is only available with digital
speed control.
The Speed
Indicator
