This works as shown in figure 10.7 – Rockwell Automation 1336E IMPACT Adjustable Frequency AC Drive User Manual V 1-4.XX User Manual
Page 177

Using the Function Block
10-7
Figure 10.5
Delayed Start with a Ramp to Speed Example
To set up this application, you need to enter the values shown in
Figure 10.6.
Figure 10.6

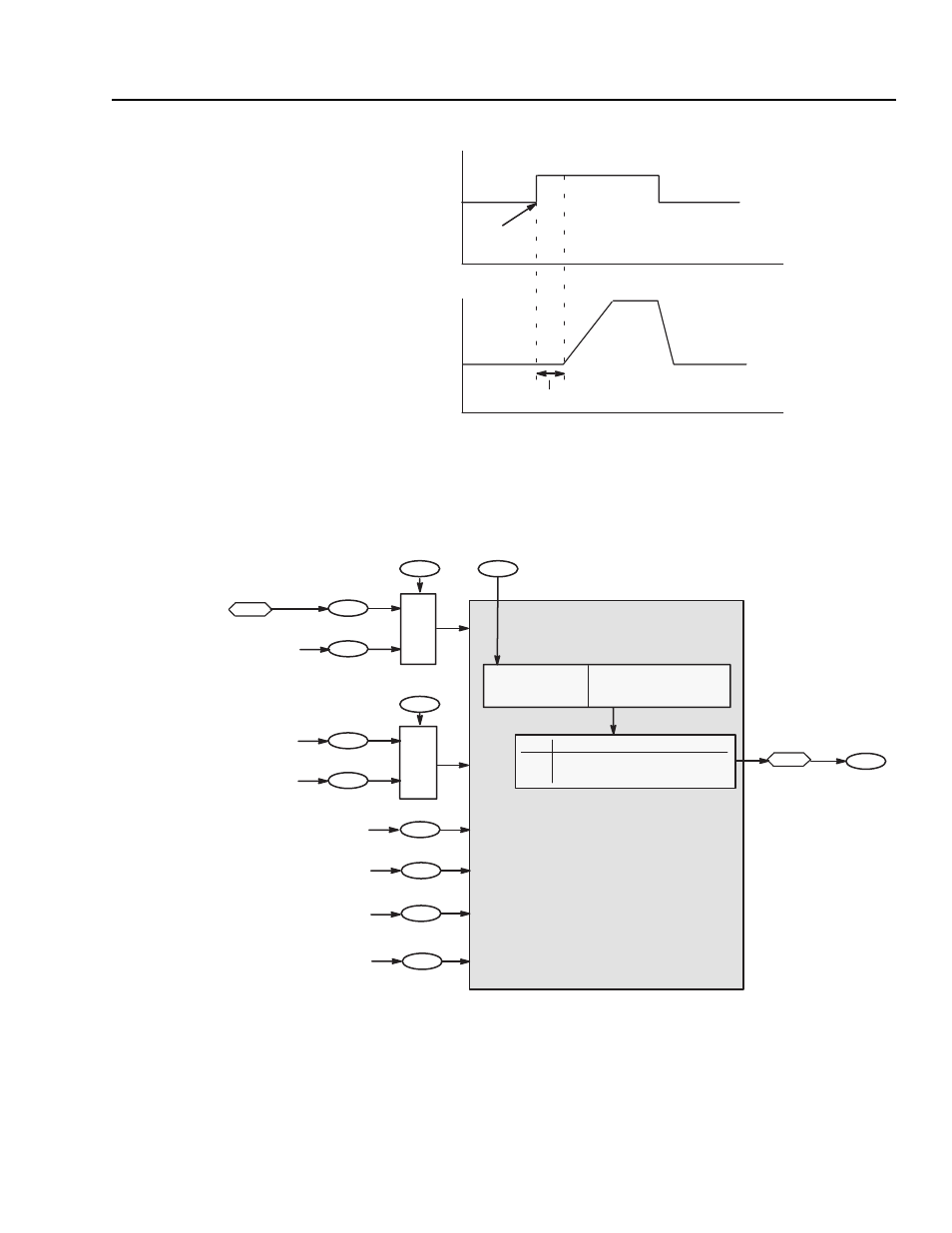

Timer Delay Function Block
This works as shown in Figure 10.7.
Timer On
Event
Occurred
Signal
Time
Time
Speed
0
0
0
0
200
Func 1 Eval Sel
2
198
Function In1
199
Func 1 Mask/Val
Enter: 00000001
Timer Delay Function Block
203
Func 2 Eval Sel
0
201
Function In2
202
Func 2 Mask/Val
Enter: 0
Enter: 0 This value is not used.
212
Function Sel
0
In1 Or In2
In4
0 minutes
In5
0.25 minutes
207
Function In4
208
Function In5
Enter: 0
Enter: 0.25 minutes (15 seconds)
213
Function
Output 1
117
L Option In Sts
209
Function In6
210
Function In7
Enter: 00000000.00000010
Enter: 00000010.00000001
197
Logic Cmd Input
If:
Then:
True
In6
00000000.00000010—>Out 1
False In7
00000001.00000001—>Out 1
Out1
Enter 0 for Function In3 (parameter 204), Func 3
Mask/Val (parameter 205), Func 3 Eval Sel
(parameter 206) and Function In8 (parameter 211) as
these parameters are not used for this function block.
