Using the logical multiply/divide function, Using the logical multiply/divide function -27 – Rockwell Automation 1336E IMPACT Adjustable Frequency AC Drive User Manual V 1-4.XX User Manual
Page 197

Using the Function Block
10-27

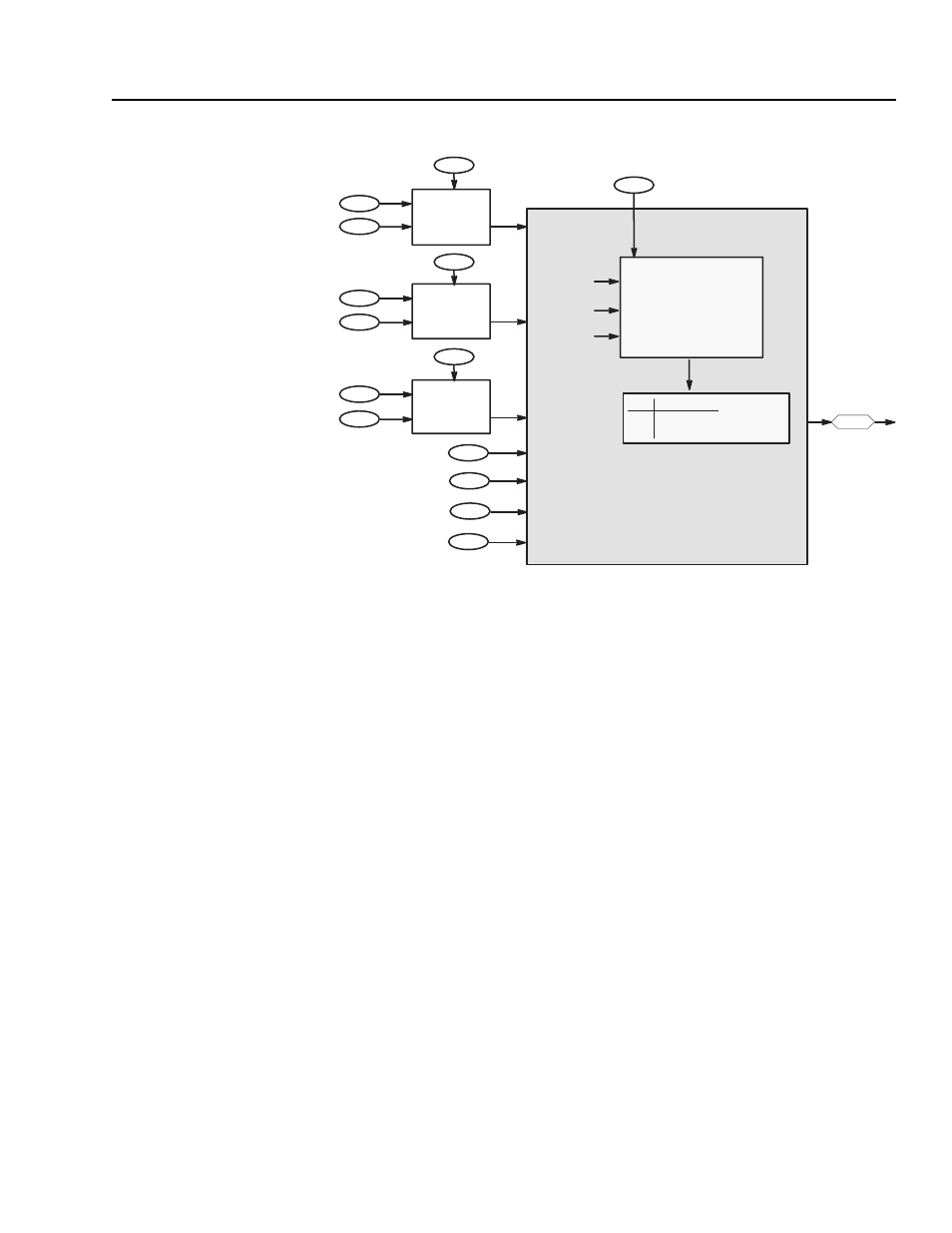

Figure 10.32
Logical Add/Subtract Function Block
Using the Logical
Multiply/Divide Function
The logical multiply/divide function lets you use a logical operator to
determine whether to multiply the value of Input 5 with the value of
Input 6 and then divide the result by the value of Input 7 or multiply
the value of Input 8 with the value of Input 9 and then divide the
result by the value of Input 10. Figure 10.33 shows the parameters
that are used for the logical multiply/divide function and how these
parameters are evaluated.
209
200
Func 1 Eval Sel
0 – 17
198
Function In1
199
Func 1 Mask/Val
I
V
Logical Add/Subtract Function Block
203
Func 2 Eval Sel
0 – 17
201
Function In2
202
Func 2 Mask/Val
I
V
212
Function Sel
16
In1 Or In2
17
In1 Nor In2
18
In1 And In2
19
In1 Nand In2
20
(In1 Or In2) And In3
21
(In1 And In2) Or In3
In1
In2
206
Func 3 Eval Sel
0 – 17
204
Function In3
205
Func 3 Mask/Val
I
V
In3
208
Function In5
Function In6
In5
In6
213
Function
Output 1
If:
Then:
True
In5 + In6 —> Out1
False In8 + In9 —> Out 1
In1
In2
In3
211
Function In8
In8
Function In9
In9
232
