2-14
Mounting and Wiring Your 1336 IMPACT Drive
Grounding Your Drive
You need to properly ground your 1336 IMPACT drive. Figure 2.3
shows the grounding recommendations for the 1336 IMPACT drive.

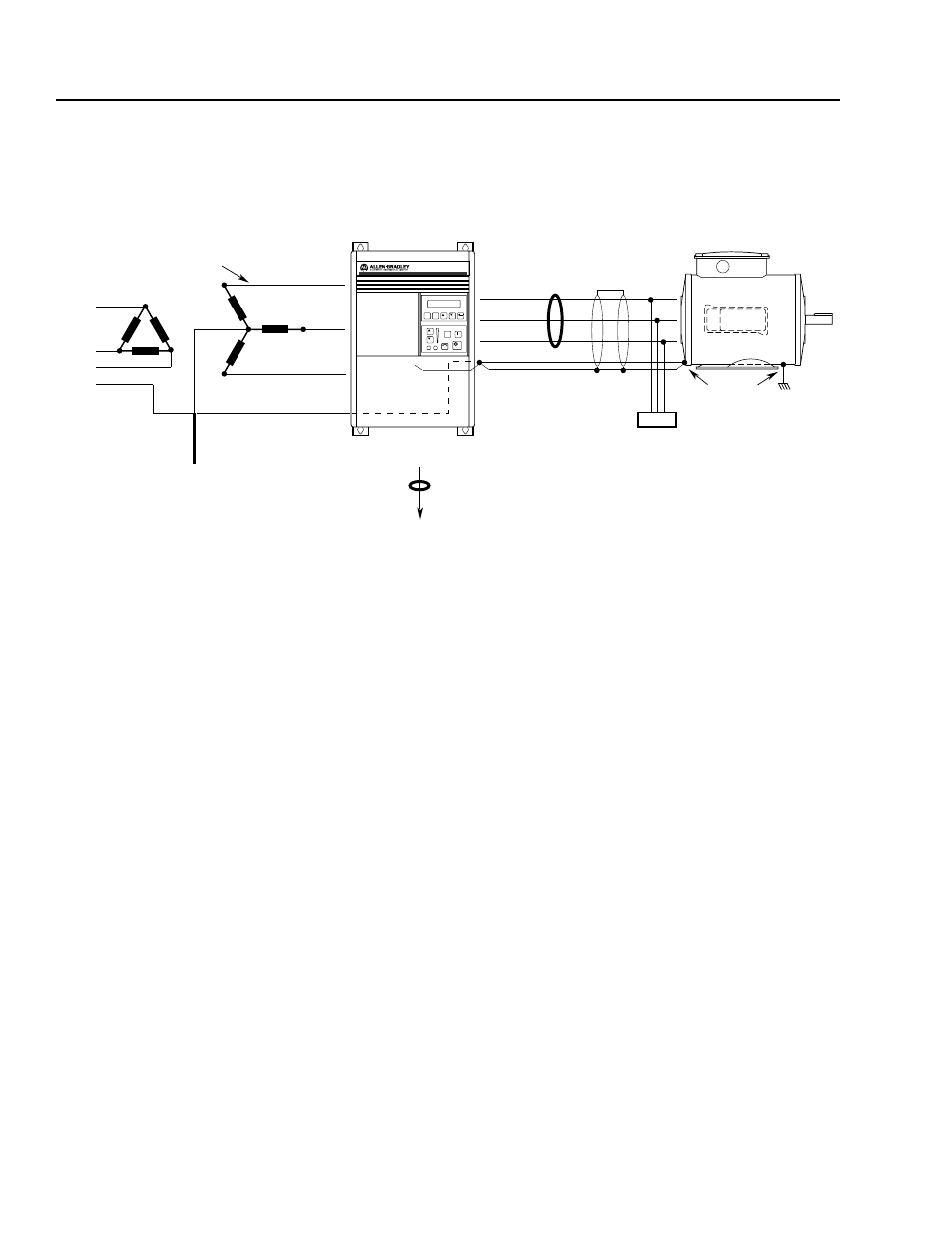

Figure 2.3
Recommended 1336 IMPACT Drive Grounding
To ground your 1336 IMPACT drive, you need to:
1. Connect the drive to the system ground at the power ground (PE)
terminal provided on the power terminal block (TB1).
2. Define the paths through which the high frequency ground
currents flow.
3. Connect the ground conductor of the motor cable (drive end)
directly to the drive ground terminal, not to the enclosure bus bar.
4. Ground the encoder connections (if you are using an encoder).
5. Ground the control and signal wiring.
6. Connect the TE terminal block.
7. Connect the ground bus to adjacent building steel or a floor
ground loop.
8. Solidly ground the RFI filter, if you need to use one.
These steps are explained in greater detail in the following sections.
JOG
ESC
SEL
R (L1)
S (L2)
Ground Rod/Grid
or Building Structure Steel
T (L3)
PE
U (T1)
Shield
RIO/DH+
or Analog
Shield
Common
Mode
Core
Common
Mode Core
Conduit/4-Wire Cable
To Computer/Position Controller
Ground per
Local Codes
Motor Frame
Motor
Terminator
PE
V (T2)
W (T3)
PE/Gnd.
TE
1 Options that can be installed as needed.
