Getting started
Parameterising drives via machine constants
Adapting machine constants in the ETC−MMI
2
2.8
2.8.5
l
42 EDSTCXN EN 2.0
2.8.5 Adapting machine constants in the ETC−MMI
1. In the ETC MMI window, press (diagnostics).
The MMI window opens in the "Diagnostics" operating mode.
2. Press (machine const.).
3. Press F6 (Change current MCs) again.
The current machine constants are loaded.

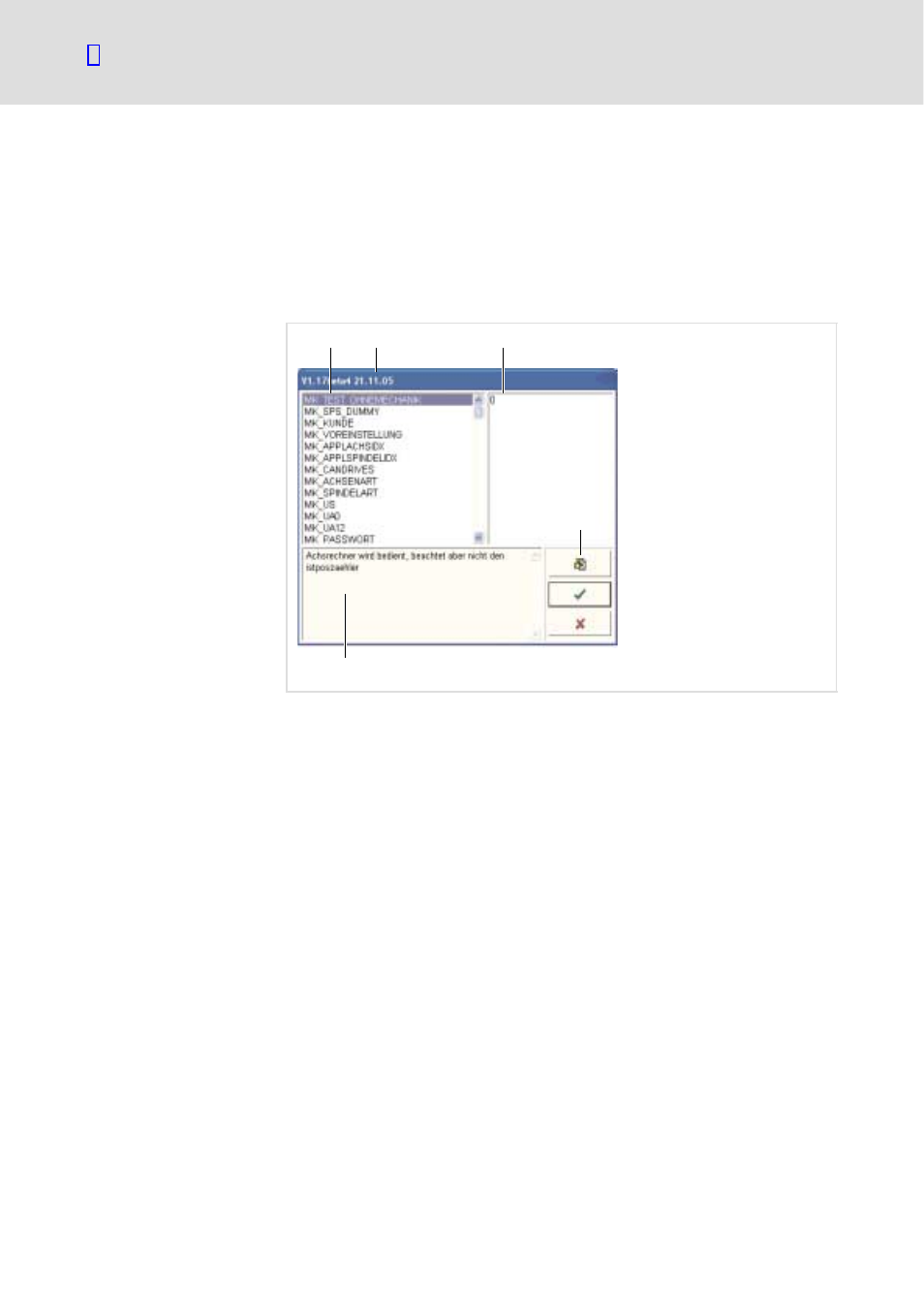

0 1
3
4
2
EETCN095
0: Available machine constants
1: Date and version of the NC firmware
2: Value of the selected machine constant
3: Accept changed value
4: Short description of the selected machine constant
4. In the field of the available machine constants
0, select the machine
constant that you want to adapt.
5. To change the value of the selected machine constant, press the
and enter the new value in the field
2.
6. To accept the value, press the key
3.
7. After you have made all changes, press .
The changes are transferred to the ETC and updated in the MK file.
