Getting started
System overview
Connecting ETCHx and PC
2
2.1
2.1.3
l
16 EDSTCXN EN 2.0
2.1.3 Connecting ETCHx and PC
Three types of connections are possible between the ETCHx and a PC.
Connection type Cable version Description
Serial connection System cable type EWL 0068
or a comparable RS232 cable
with double−sided 9−pin
SUB−D socket (for the pin
assignment see ETC Hardware
Manual) This connection is only
required for commissioning!
A free COM port at the PC is
connected with the RS232
interface of the ETCHx. The PC
communicates via a terminal
program with the monitor
interface of the ETCHx.
Local connection via Ethernet
(pear−to−pear connection) System cable type EWL 0065,
EWL 0066 or EWL 0067
(double−sided RJ45) A network card in the PC is
connected with the Ethernet
connection of the ETCHx via a
cross−over cable.
Communication takes place
via the TCP/IP protocol.
Network connection Ethernet patch cable STP Cat5
(double−sided RJ45) The ETCHx is connected to a
separate or existing network
(e.g. Intranet) via an Ethernet
connection. Communication
takes place via the TCP/IP
protocol.

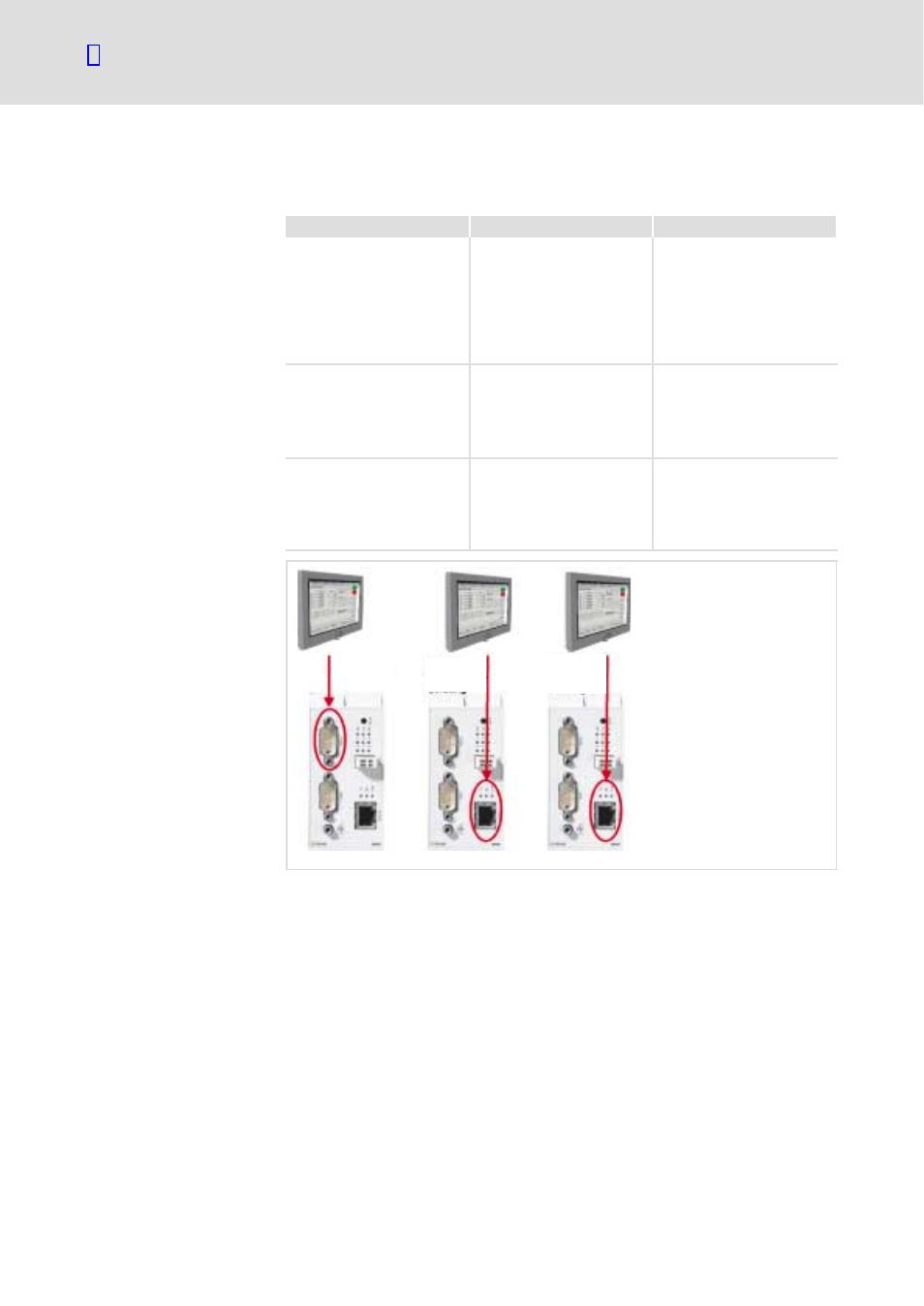

0 1 2
ETCM004
0 Connection via serial interface
1 Local TCP/IP connection
2 Network TCP/IP connection
