"Programming" operating mode
ASCI editor
7
7.6
7.6.1
l
306 EDSTCXN EN 2.0

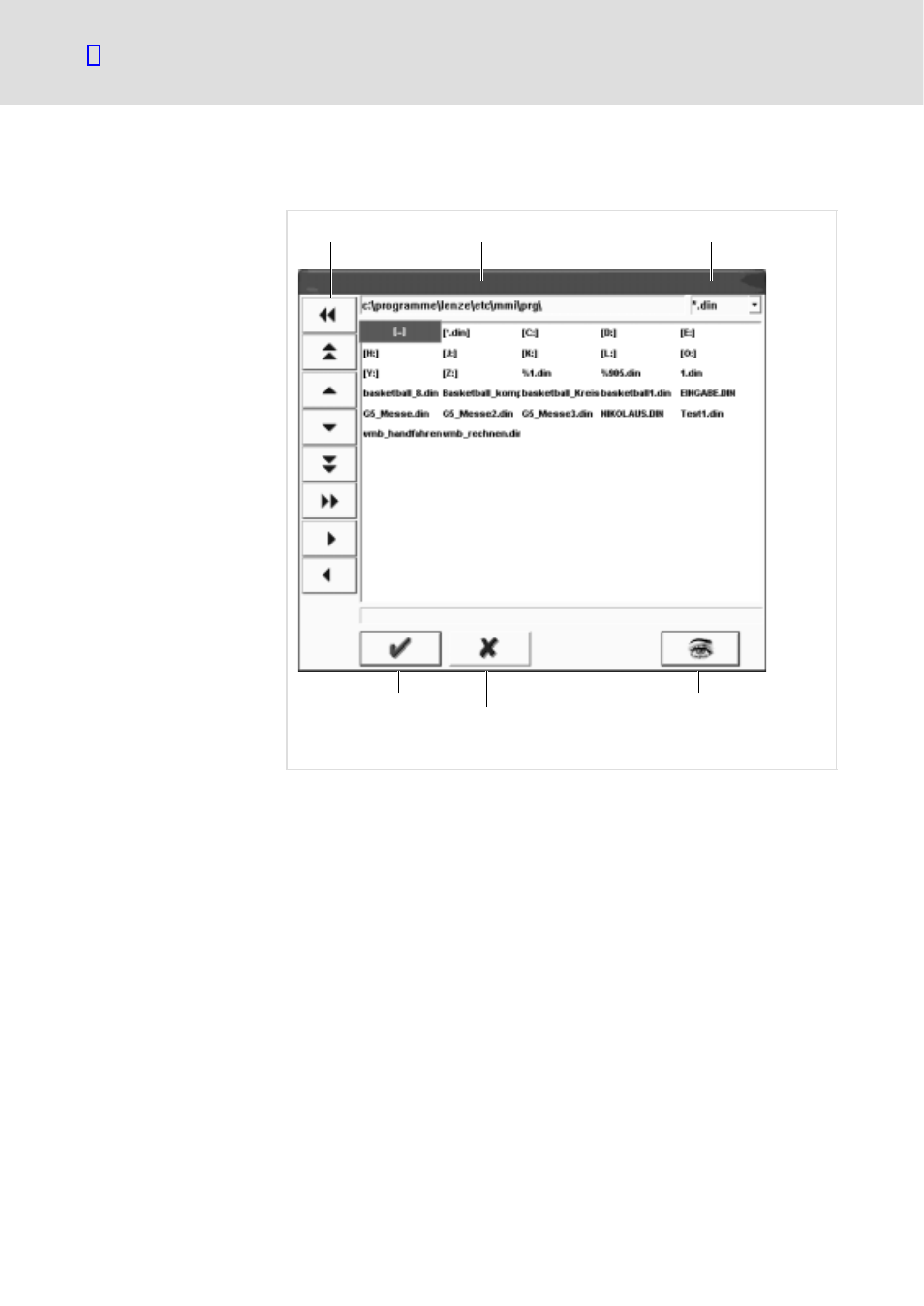

This dialogue box is used, among other things, for the selection of a program
for the editor and for the transfer to an NC computer.
Pathname Display filter Cursor keys
Display profile
of the program ESC
discard entry
ENTER
select file
ETCN076
ƒ A dialogue box (button, input field, selection list etc.) can be selected
with the key.
ƒ By means of the keys, you approach an element in the
selected dialogue area (e.g. a certain file in the file selection area).
ƒ With the key, you execute an action. With , you cancel
the action.
1. Press the key several times, until the display and input field of
the directory name is selected.
2. If you want to change the file path, press and enter a new
path. Press to confirm the entry or to discard it.
3. Press the key several times until the file selection field is
selected.
4. Select the file by means of the keys. Press to select
the file.
Dialogue box for file selection
General functions
Select file
