ETC−MMI
"Programming" operating mode
7
7.6
l
302 EDSTCXN EN 2.0
7.6 "Programming" operating mode
ETCN073
In the "Program" operating mode, you edit CNC programs or any text files.
The operating mode offers a file management system for copying, printing
and deleting files (
¶ 308) and an ASCII editor (¶ 305) for editing programs.

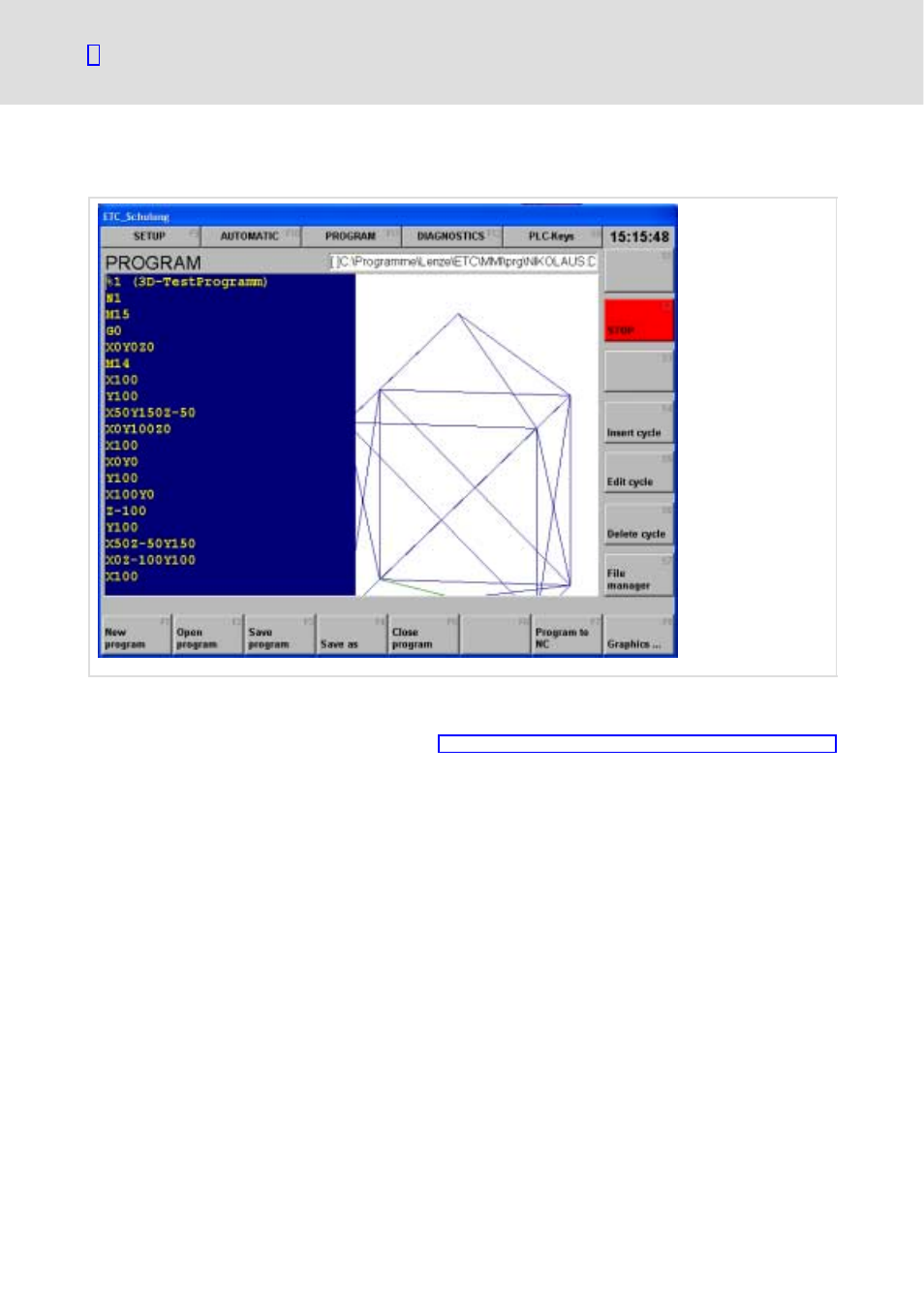

The name of the file being edited is displayed in the upper right. In the editor
field (in the illustration on the left), the contents of the file are displayed and
edited. For a CNC program, a graph can be optionally displayed (in the
illustration on the right).
Up to eight files can be opened at the same time. The names are entered in
a list. By means of the key and the keys, the files are selected.
By means of the key, they are brought to the foreground.
The operation of the editor is described in a separate section.
