Lenze ETC Motion Control - Manual (Page 317)

ETC−MMI
"Diagnostics" operating mode
7
7.7
l
317 EDSTCXN EN 2.0
Enable PLC The Enable PLC function is used for checking the most
important interface signals between PLC and NC.

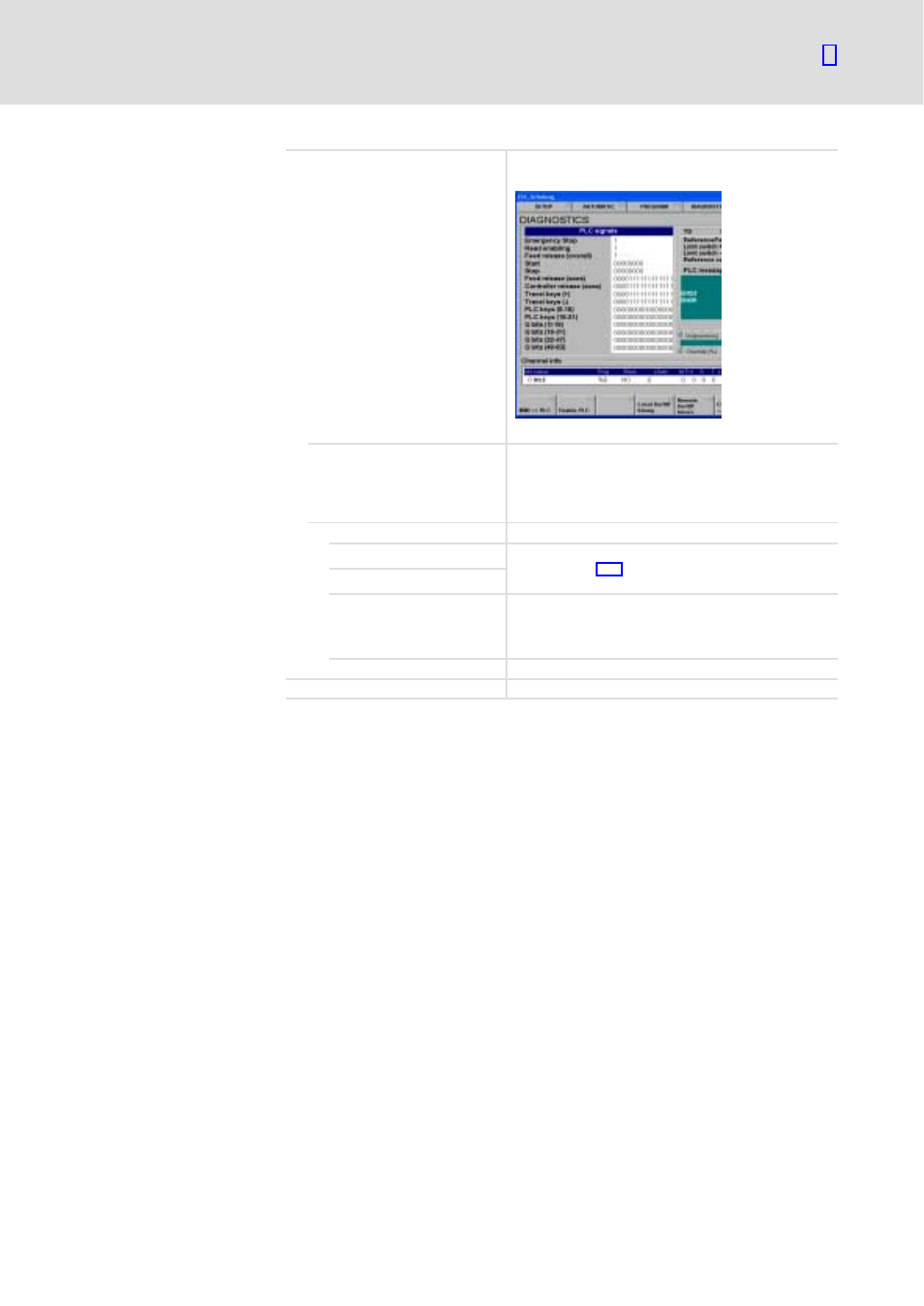

ETCN092
Remote On/Off binary Displays the input and output statuses of the external
I/O modules connected via CAN bus in binary form (0 =
input/output not set). This function is only significant if
the system is equipped with the corresponding
hardware.
Cards On/Off ...
Local dig. I/O In the language file, a text can be saved for each input
and output (
^ 321). If an input is set, it is displayed in a
different colour.
local anal. I/O
Remote I/O Shows a list of the configured CAN bus modules. A
module can be selected by means of the keys.
Press to display the inputs and outputs of this
module.
back... Back to the previous level.
