Operating ETC−MMI
7.3.1

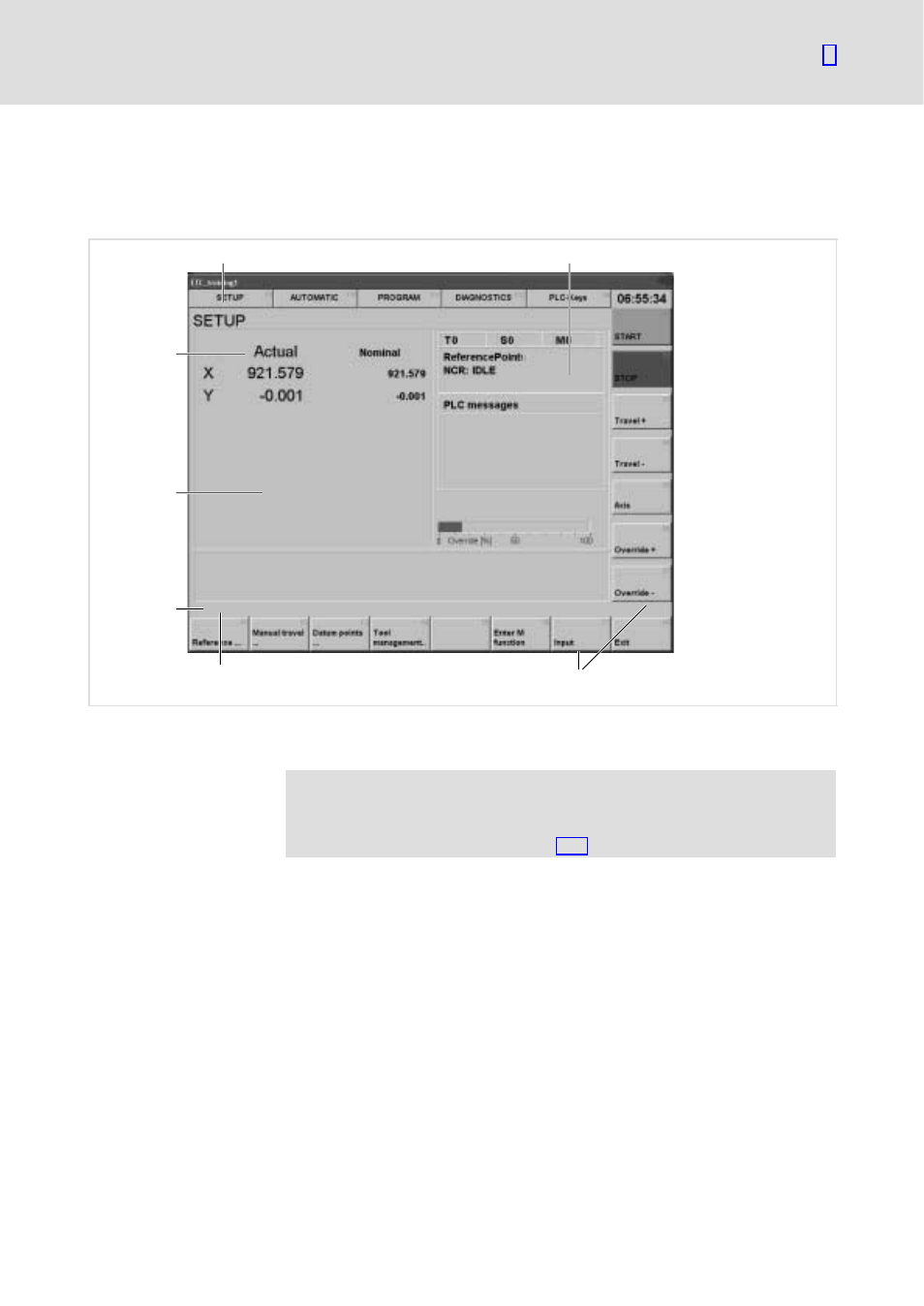

Display elements of the program interface
Bar display
Actual value
display
Status display
Operating mode
Status line
Input line
Softkeys
ETCN063
Operating modes: Displays the currently selected operating mode ("Setup",
"Automatic", "Programming" or "Diagnostics") and, if selected, a sub mode.
)
Note!
It can be defined which operating mode is displayed when the
user interface is started. (
¶ 327).
Actual value display: This area shows the actual and desired positions of the
configured axes.
Status display: The status fields display current program statuses, such as
the current program, T, S, and M number. Moreover, information on the
currently edited parts program and PLC error messages are displayed here.
Softkeys: The horizontal and vertical softkeys are located at the lower and
right window edge. Their labelling and function depends on the selected
operating mode or sub mode.
Input line: The input line is used for special inputs. If the line is active, it is
displayed in white
.
Status line: Notes and general statuses are displayed here.
Bar display: In addition to the standard bar display for "Override" and
"V
actual
", additional displays can be configured.
