ETC−MMI
"Automatic" operating mode
7
7.5
l
300 EDSTCXN EN 2.0
Start Starts the selected program or blockwise processing in
single block operation.
Stop Immediately stops program execution. All axes are
stopped with the set deceleration ramps. After a restart,
processing is started again.
Feed stop If "Feed stop" is activated, the axes are no longer
traversed, until the function has been deactivated. The
axes are stopped with the set deceleration ramps. The
current traversing speed and the set override value are
displayed in the status field.
The function must be executed via the PLC. Either "Feed
stop" or "Optionally stop" is active.

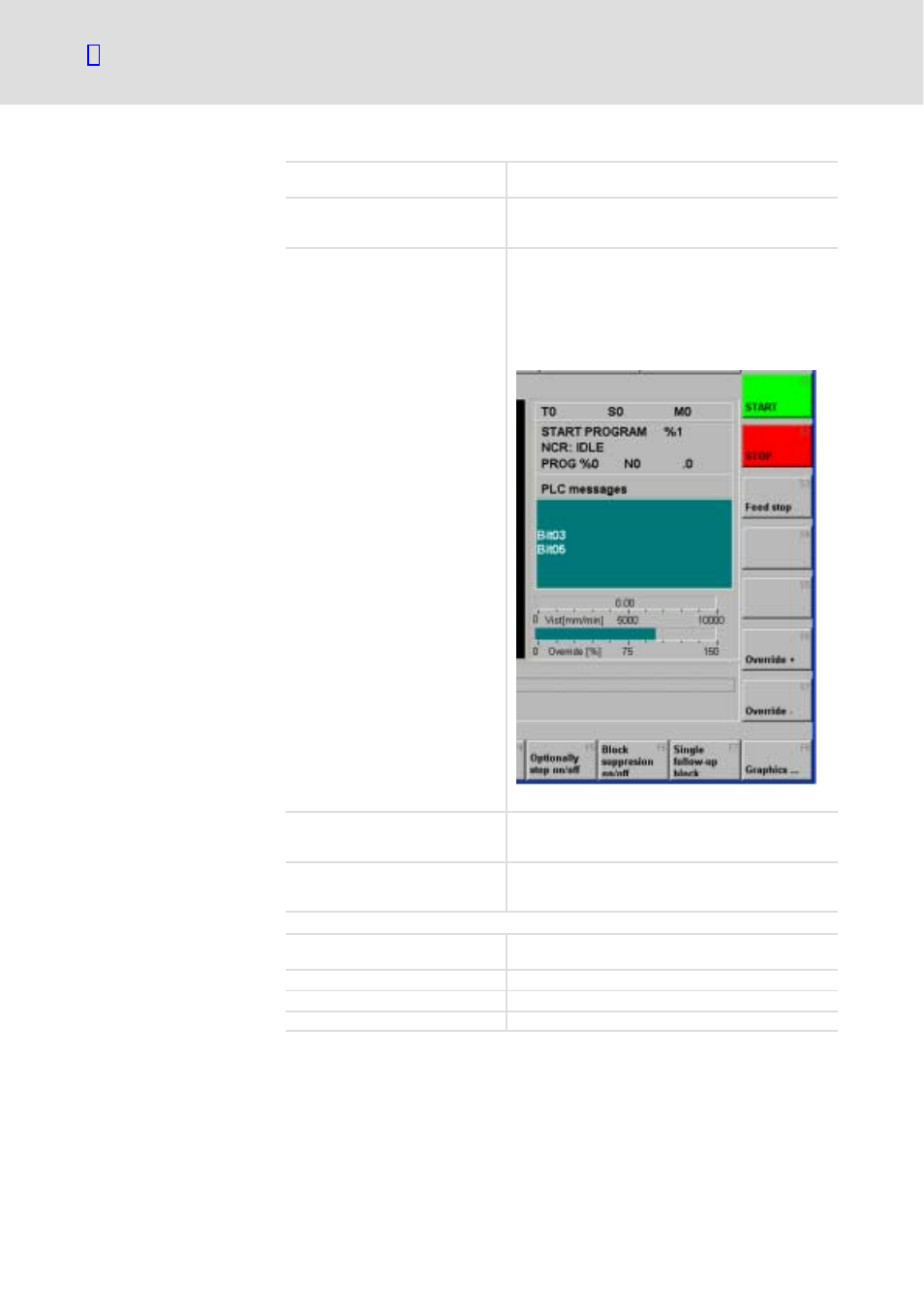

ETCN072
Override+ Increase the axis or path speed of the selected axis (in
percent of MK_VMAX). Over 10%, the value is changed
in steps of 10%, below 10% in steps of 1%.
Override− Reduce the axis or path speed of the selected axis (in
percent of MK_VMAX). Over 10%, the value is changed
in steps of 10%, below 10% in steps of 1%.
Drawing − border A frame is drawn around the DIN program and
dimensioned in the input units.
Enlarge Zoom into the profile
Reduce Zoom out of the profile.
Zoom The graphic is maximised. All other displays are hidden.
Vertical function keys
Horizontal function keys for
graphics "on"
