ETC−MMI
"Diagnostics" operating mode
7
7.7
l
316 EDSTCXN EN 2.0

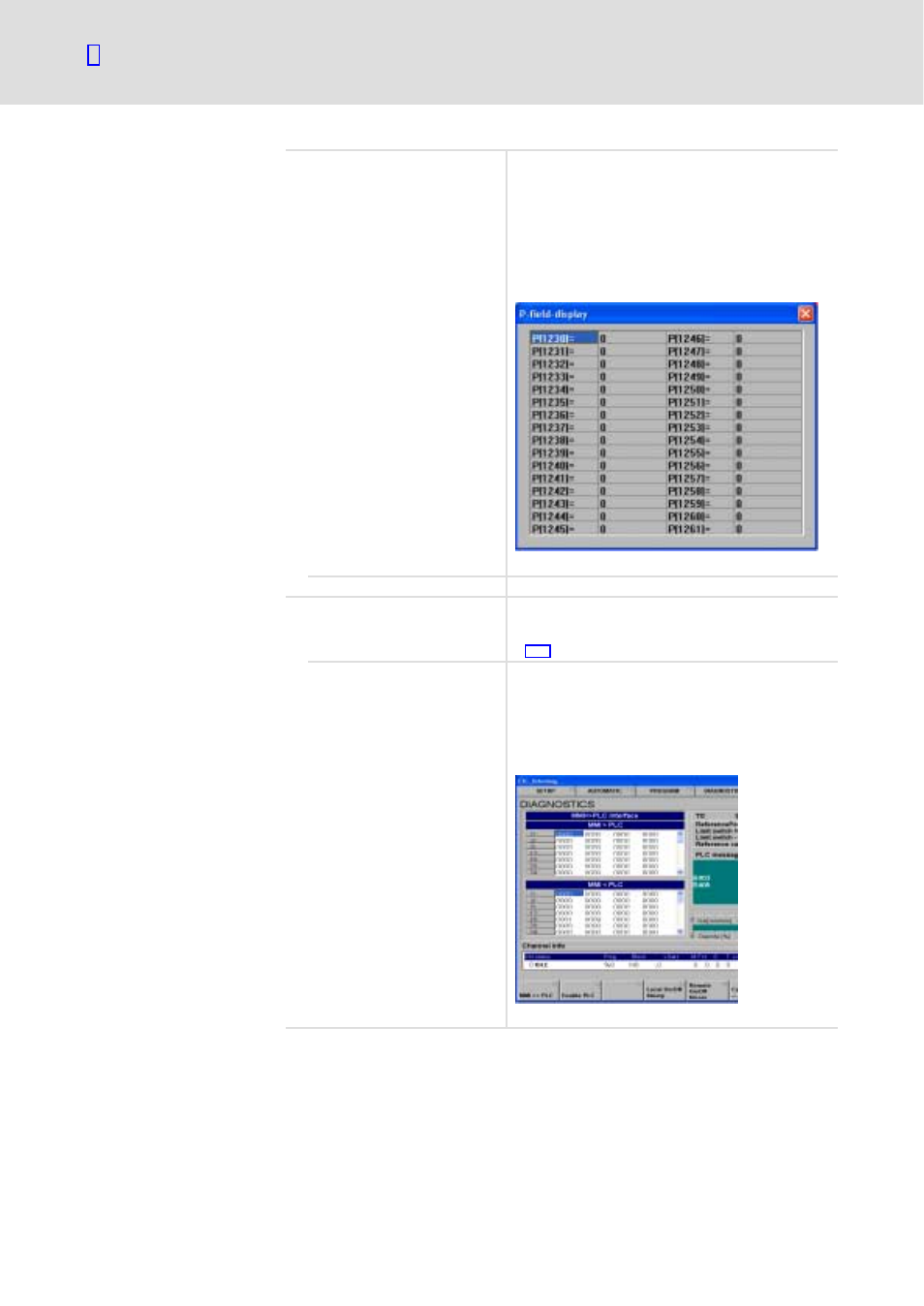

P field display Opens a separate window with a list of 32 successive
parameters. The start parameter can be entered by
pressing the or key. When the last
P field is selected, the P field index is displayed. Press
to display this index in the first field.
This function can be used to browse 31 fields up. If
is pressed on a field with value of the P field,
this value can be changed via an entry block.
The dialogue can be closed with .
ETCN090
back... Back to the previous level.
PLC signals This function offers different options of checking the
communication between MMI and PLC and monitoring
the statuses of the inputs and outputs of the PLC.
^ 240.
MMI <> PLC Opens two windows showing the data exchange
between the MMI and the PLC via the data block DB2.
The upper window shows data sent by the MMI
program to the PLC. The lower window displays data
sent by the PLC to the HMI.
Use the key to switch between the windows and
use the keys to scroll down the display.
ETCN091
