ETC−MMI

"Programming" operating mode

Cycle programming

7.6

7.6.3

311

EDSTCXN EN 2.0

ETCN081

P1203=20.0000
P1206=0.0000
G22 L3501
G99

P1204=20.0000
P1200=90.0000

P1205=1.0000

ETCN082

After a function or a cycle has been selected, the respective entries are made
in the DIN file.

If the cursor is positioned on a line starting with "G22 Jxxxxx", the cycle can
be edited and the data changed as long as all information is available.

If the cursor is positioned on a line "G22 Jxxxxx" in the editor, the cycle (call
and parameter part) can be removed from the DIN file.

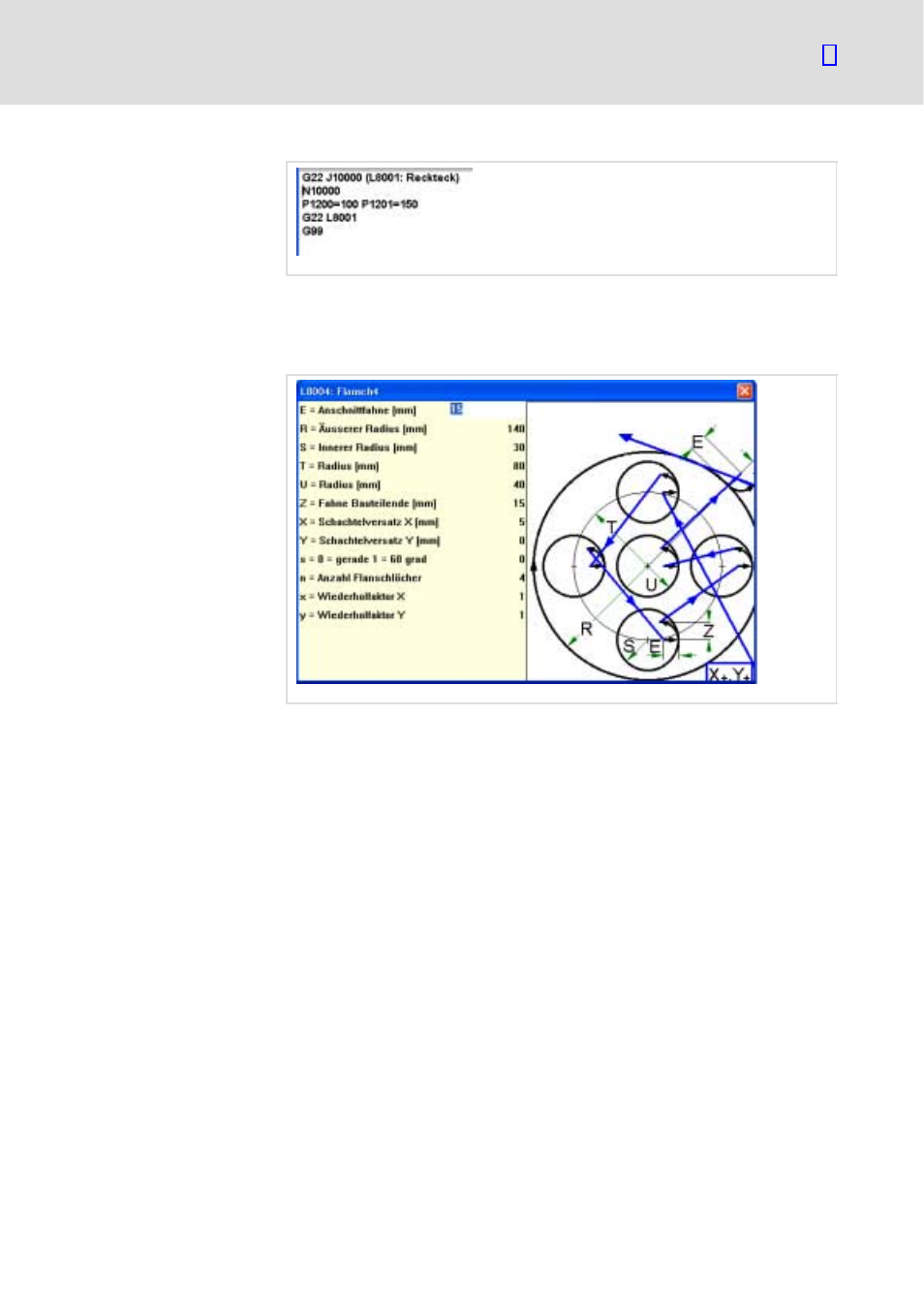

Representation of the cycle in
the DIN program

Edit cycles

Change cycle

Delete cycle
