7.4 "Setup" operating mode
ETCN068

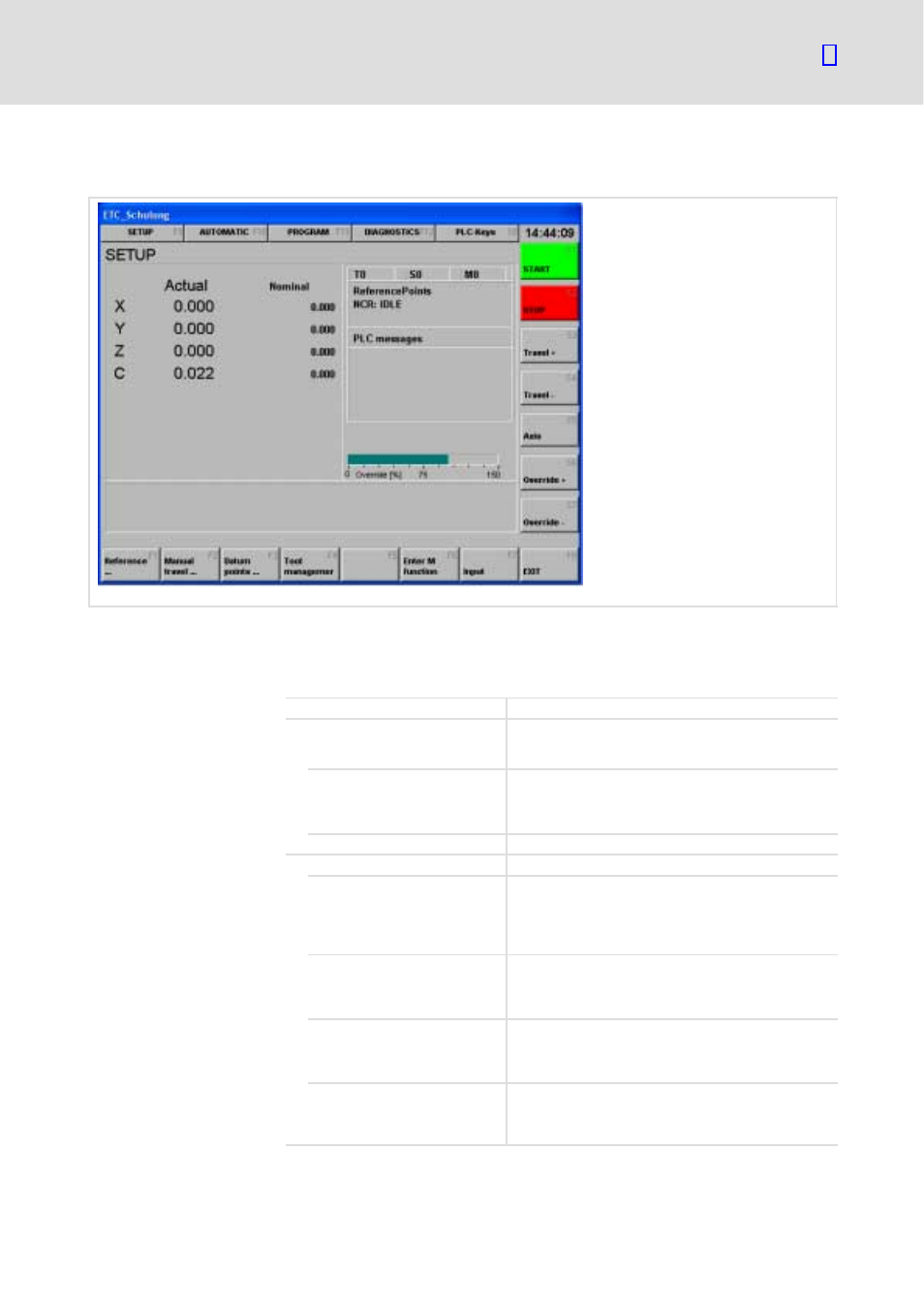

The "Setup" operating mode contains functions for setting up the plant.
Among other things, you can carry out homing and manual travel and
manage tools.
Reference...
automatic Via the key, an automatic home position
approach can be initiated. All axes are referenced in the
configured sequence.
manual A manual home position approach can be initiated. You
can select the desired axis by means of the key
(or keys) and traverse the axes with the
/ or key.
back... Back to the previous level.
Manual travel... Here you can manually traverse the axes.
Modal travel The axis selected with the key (or keys)
is traversed as long as the / key is
pressed. The speed at which the axes are traversed is
determined by MK_MODVMAX. It can be influenced via
the / key.
Step travel The selected axis is traversed by the specified increment
(see below). The direction is determined by the +> / keys. During "step travel", the axes are
traversed at high rate.
Increment Increment in mm for traversing the selected axis. The
entry must be completed with . The function
key is only labelled and enabled if the key
has been pressed.
Target point travel The "Target point travel" function refers to all axes. If
you press the key, all axes whose actual and set
position is not identical are traversed. During "Target
point travel" the axes are traversed at high rate.
