Getting started
Starting ETC−MMI
Establishing a connection between ETC−MMI and ETC
2
2.7
2.7.2
l
34 EDSTCXN EN 2.0
2.7.2 Establishing a connection between ETC−MMI and ETC

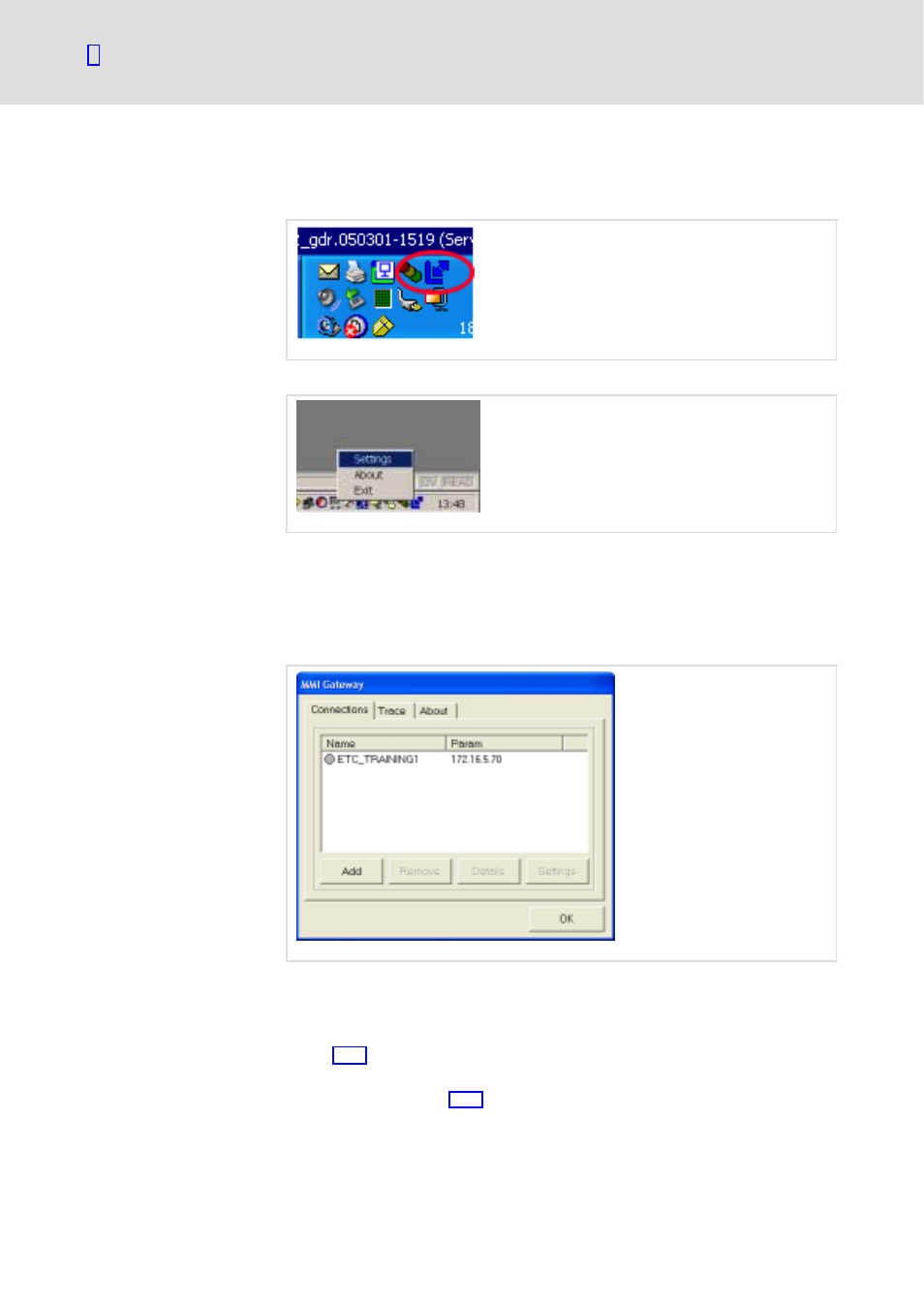

1. On the task bar, click on the ETC−MMI Gateway icon.
ETCN001
A menu opens.
ETCN002
Settings: Start configuration interface.
About: Display version and manufacturer information.
Exit: Close gateway (if there are active connections to an application, a
warning is displayed).
2. Click on Settings.
ETCN003
Connections: List of the already configured connections. A green LED next
to the connection name indicates an active connection, via which the
messages and/or cyclic data are transferred. Via the Settings button, you
can edit the communication parameters of the selected connection
(
¶ 278).
Trace: In the case of faults in the communication, you can activate trace
logs on this tab (
¶ 281).
About: Display version and manufacturer information.
