MSC X Recovery Tool
MSC X Recovery Tool

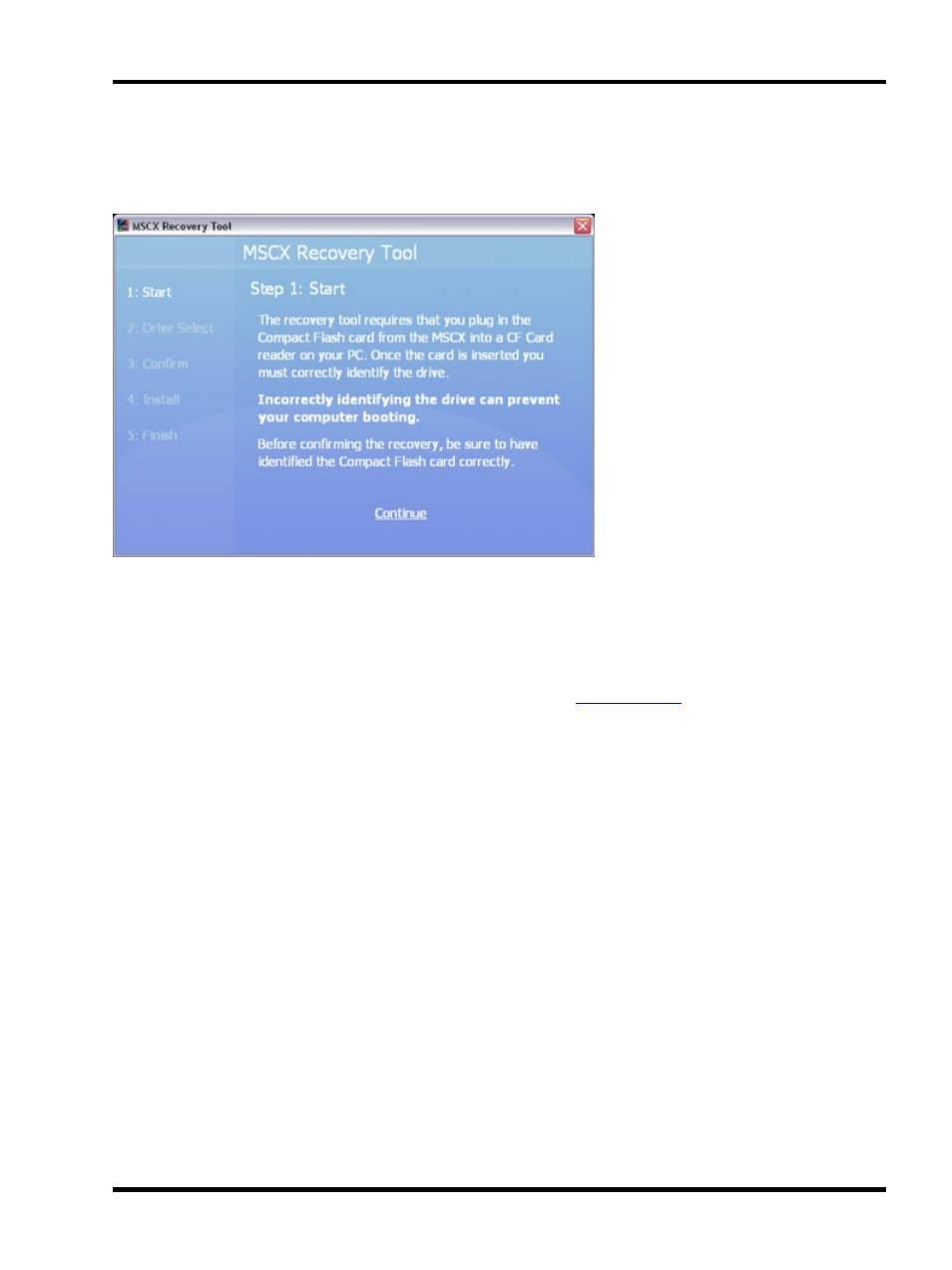

The MSC X Recovery Tool is a standalone utility for updating the MSC X's firmware:
When to use it
To recover corrupt firmware
It is possible, although rare, for the firmware to become corrupt when updating using the Designer software. An
MSC X with corrupt firmware (as indicated by the status LEDs, see
) can not be updated using the
Designer software and so the MSC X Recovery Tool must be used instead.
To install a new or larger capacity card
Should you wish to use a new or larger capacity Compact Flash card then you must first run this tool to format the
card and install the MSC X firmware.
How to use it
Remove the MSC X's Compact Flash card
Disconnect the MSC X from the mains supply.
Remove the right hand front panel of the MSC X (socket screw top and bottom) and press the card release button
to access the Compact Flash card.
Plug the Compact Flash card into a CF card reader on a PC
Insert the card into a suitable card reader on your PC.
