Network - controller configuration, Network, Logging – ETC Unison Mosaic Designer v1.11.0 User Manual
Page 145: Controller configuration
Network - Controller configuration
Network - Controller configuration

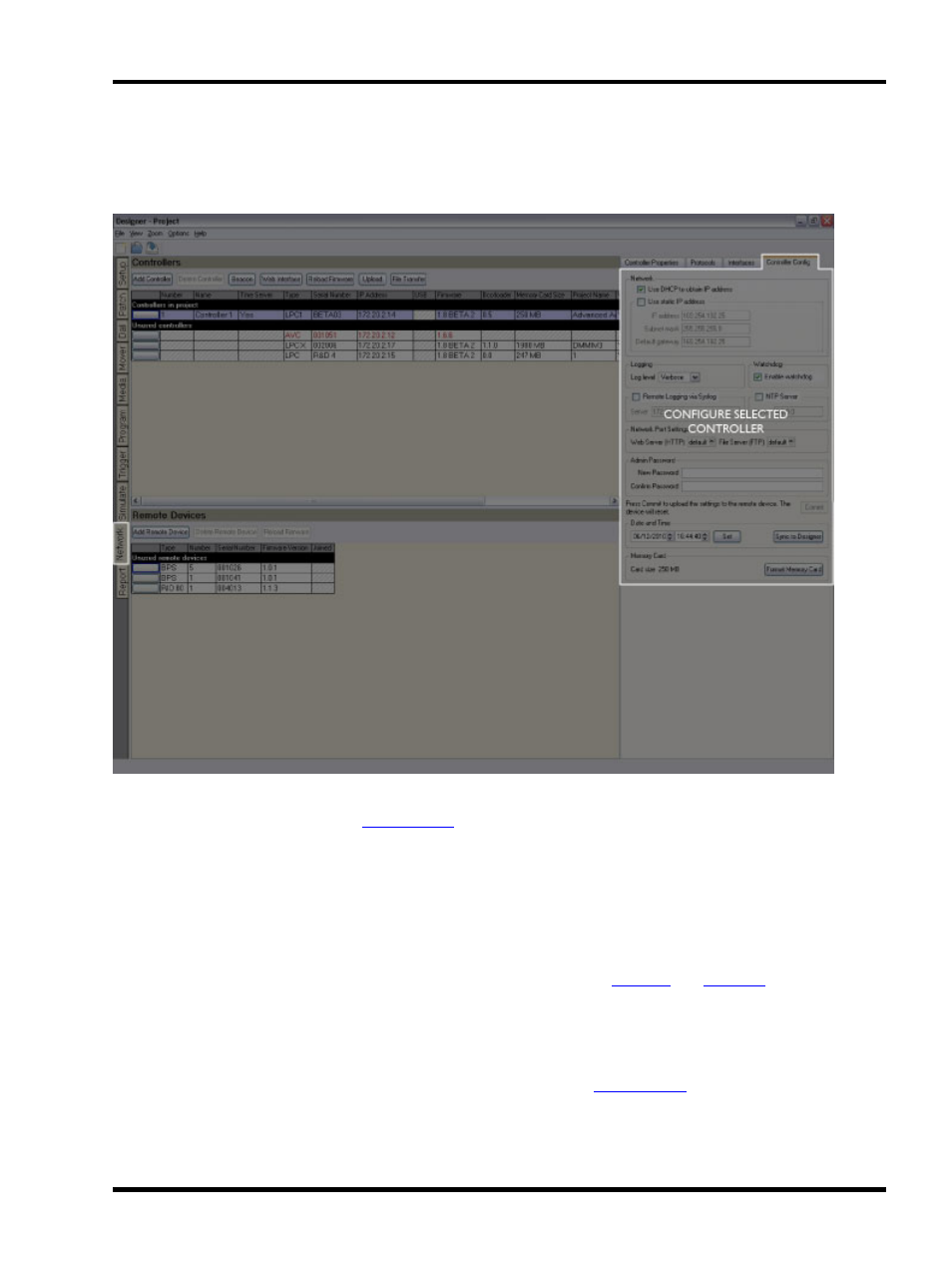

With a Controller selected, choose the Controller Config tab:
Uniquely, these settings are stored on the Controllers themselves, not in the project or as part of the upload. They
can be changed here or by using the
. The Controller does not have to be associated with a project
Controller to do so.
Network
Use these fields to set a static IP address for the Controller, by default the Controller is set to receive an IP
address from a DHCP server.
If the IP settings have been stored on the Controller's memory card as a "
" or "
" file then these
fields will be greyed out.
Logging
Select the verbosity (detail) of the log that can be viewed either via the
or from within Designer
using View > Controller Log and selecting a Controller (which can be connected via Ethernet or USB):
- 145 -
