Apple Logic Pro 9 - Manual (Page 673)

For more information on the Functions > Note Events > Assign Channels Based on Score
Split command, see
Using a Split Point .
Using Hyper Draw in the Piano Roll Editor

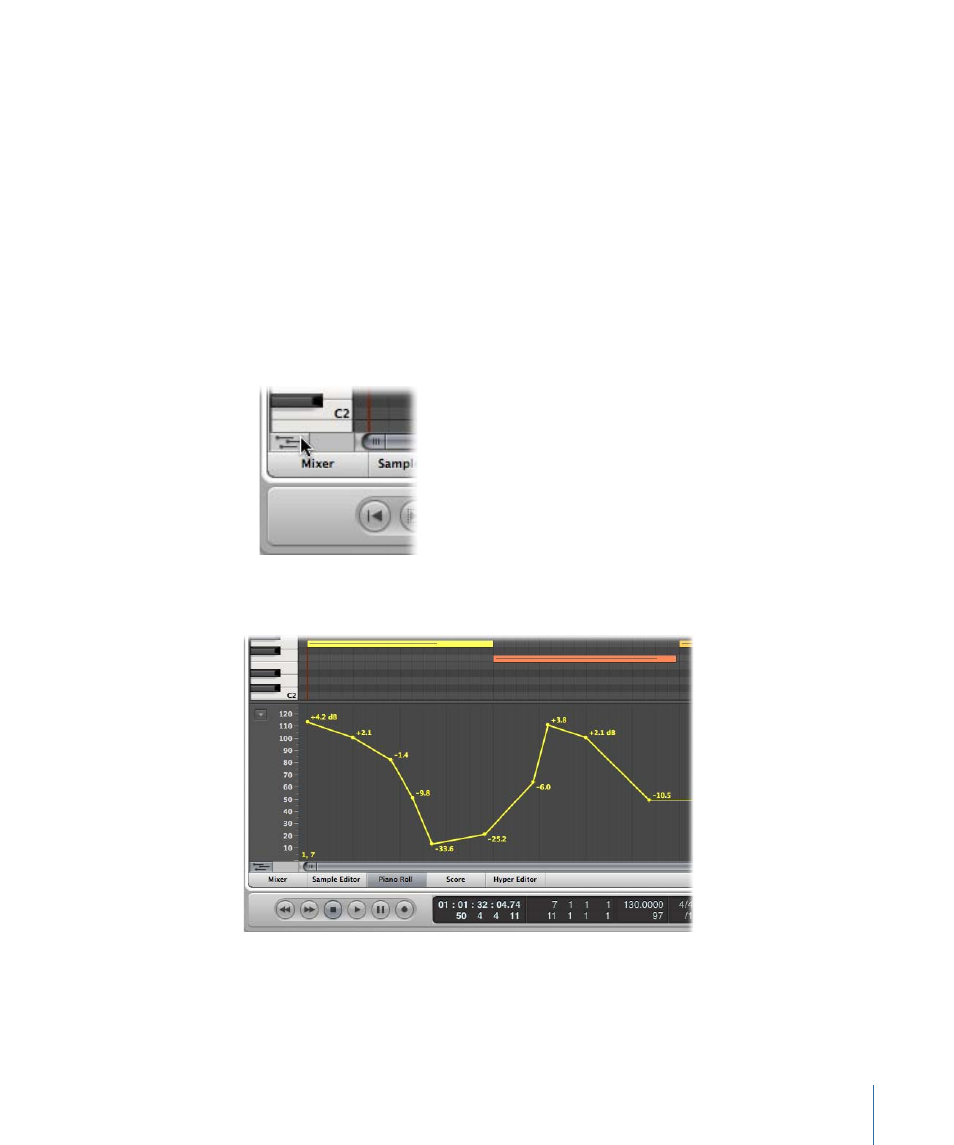

You can directly create and edit MIDI controller information in the Piano Roll Editor. These
types of edits are made easier when you can see the notes that will be affected.
To view and create controller events
1 Open a Hyper Draw display in the Piano Roll Editor by doing one of the following:
• Choose a View > Hyper Draw command.
• Click the Hyper Draw button at the lower-left corner of the Piano Roll Editor, then
choose a MIDI controller by clicking the arrow button to the left.
The selected controller type (volume, for example) is shown in a gray field below the
Piano Roll grid.
673 Chapter 23 Editing MIDI Events in the Piano Roll Editor
