47
Using the Web Server

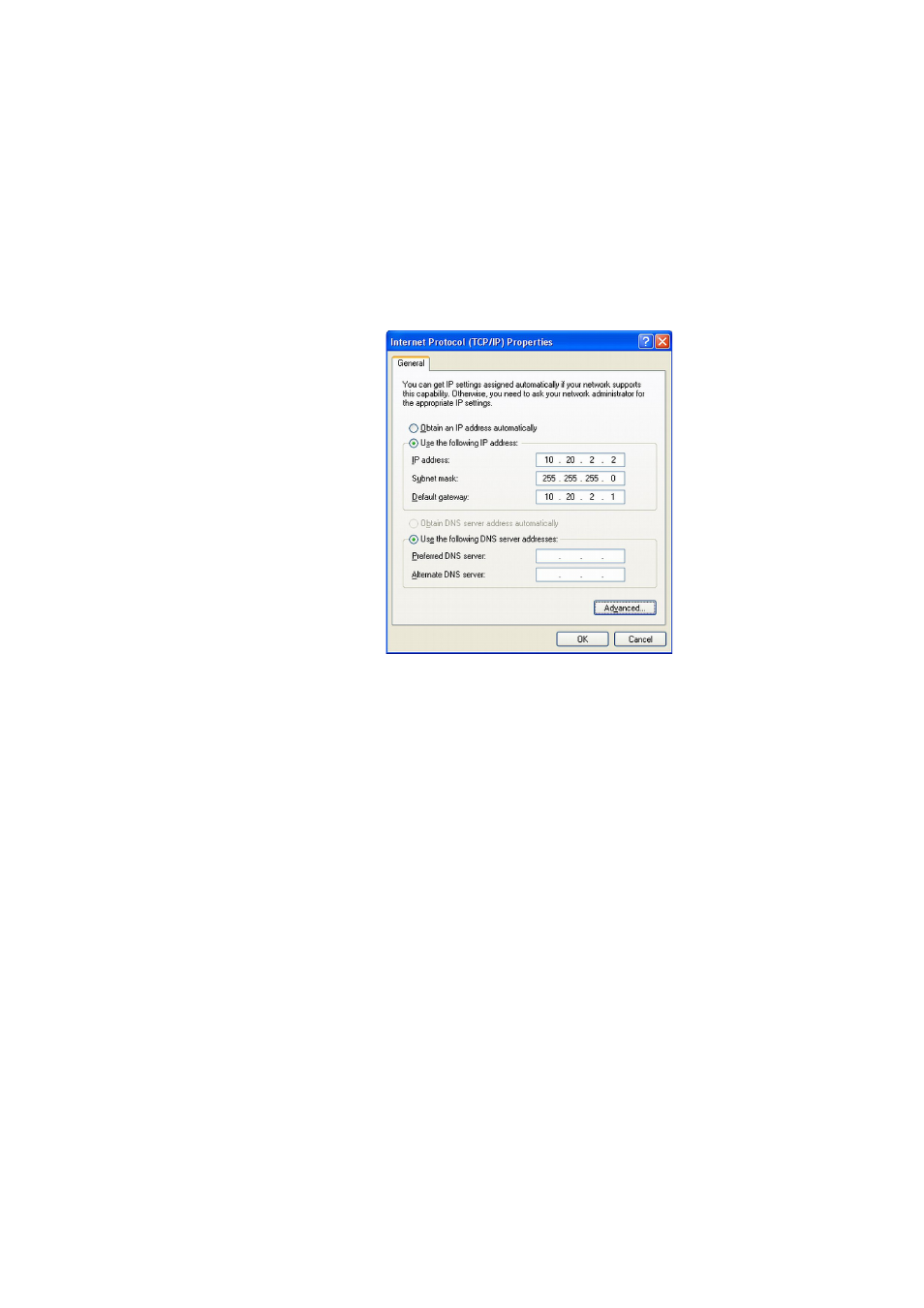

10.Enter a different IP address for the computer (e.g.
10.20.2.2). Enter the same subnetwork mask and
gateway as those entered above in the receiver through the
$PASHS,ETH,PAR command.
11.Click OK twice to close the windows.
12.Connect the crossover cable between the receiver and the
computer.
13.Check that the new IP address displayed on the receiver
screen is the expected one.
14.Open the web browser on the computer.
15.Type the receiver IP address in the address box. This
launches the Web Server in the receiver.
NOTE: With Vista, select successively the following options to
change the computer IP address:
Start>Control Panel>Network
and Sharing Center. On the left, click on Manage Network
Connections. Right-click on Local Area Connection and select
Properties. Select Internet Protocol Version 4 and click on
Properties. You can now change the IP address.
