113
Web Server Help Files Collection
External Radio:

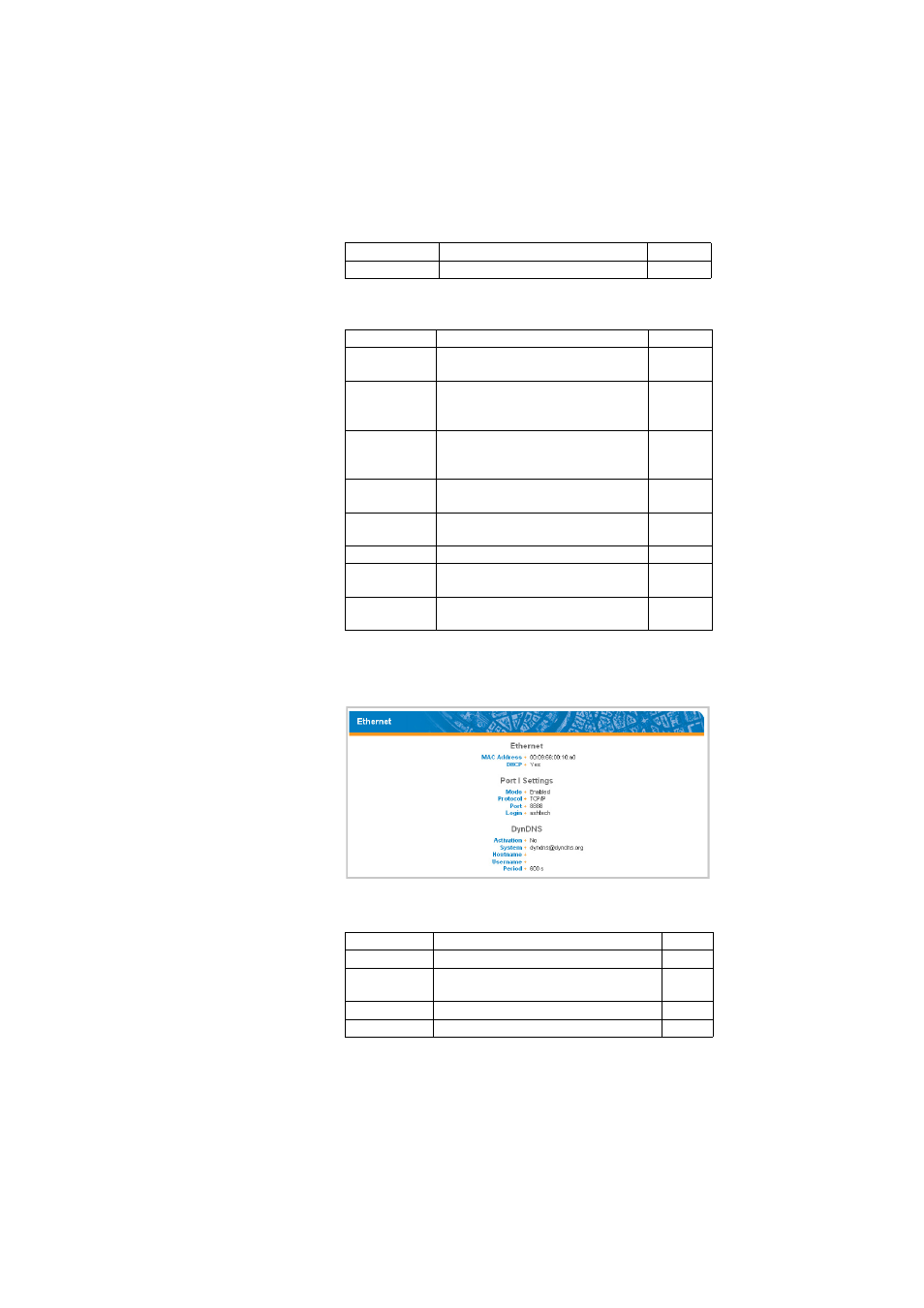

Ethernet The Ethernet page provides the current configuration of the
Ethernet port in the receiver.
Ethernet:
Current Power Current radio transmission power (in mW). RDP,PAR
Parameter Designation $PASHQ
Type
Indicates the model of radio used by the
receiver through one of its external ports.
RDP,PAR
Channel
Gives the channel number corresponding to
the carrier frequency the radio is currently
transmitting or receiving.
RDP,PAR
Protocol
Indicates the protocol used to demodulate the
received data or modulate the transmitted
data.
RDP,PAR
Airlink Speed
Indicates the speed at which the data are
modulated or demodulated by the radio.
RDP,PAR
Serial Port
Indicates the serial port to which the external
radio is connected.
RDP,PAR
Serial Baud Rate Baud rate used on the port. PRT
Serial Mode
Type of serial link used on the port (RS232 or
RS422).
MDP
Serial RTS/CTS
Indicates whether the handshaking protocol is
enabled (On) or disabled (Off) on the port.
CTS
Parameter Designation $PASHQ
Parameter Designation $PASHQ
MAC Address Hardware identification of the Ethernet device. ETH
DHCP
Indicates whether the DHCP mode is currently
enabled (Yes) or disabled (No).
ETH
IP Address (If DHCP=No) Current IP address of the receiver ETH
Subnetwork Mask (If DHCP=No) Subnetwork mask ETH
