33
Receiver Description

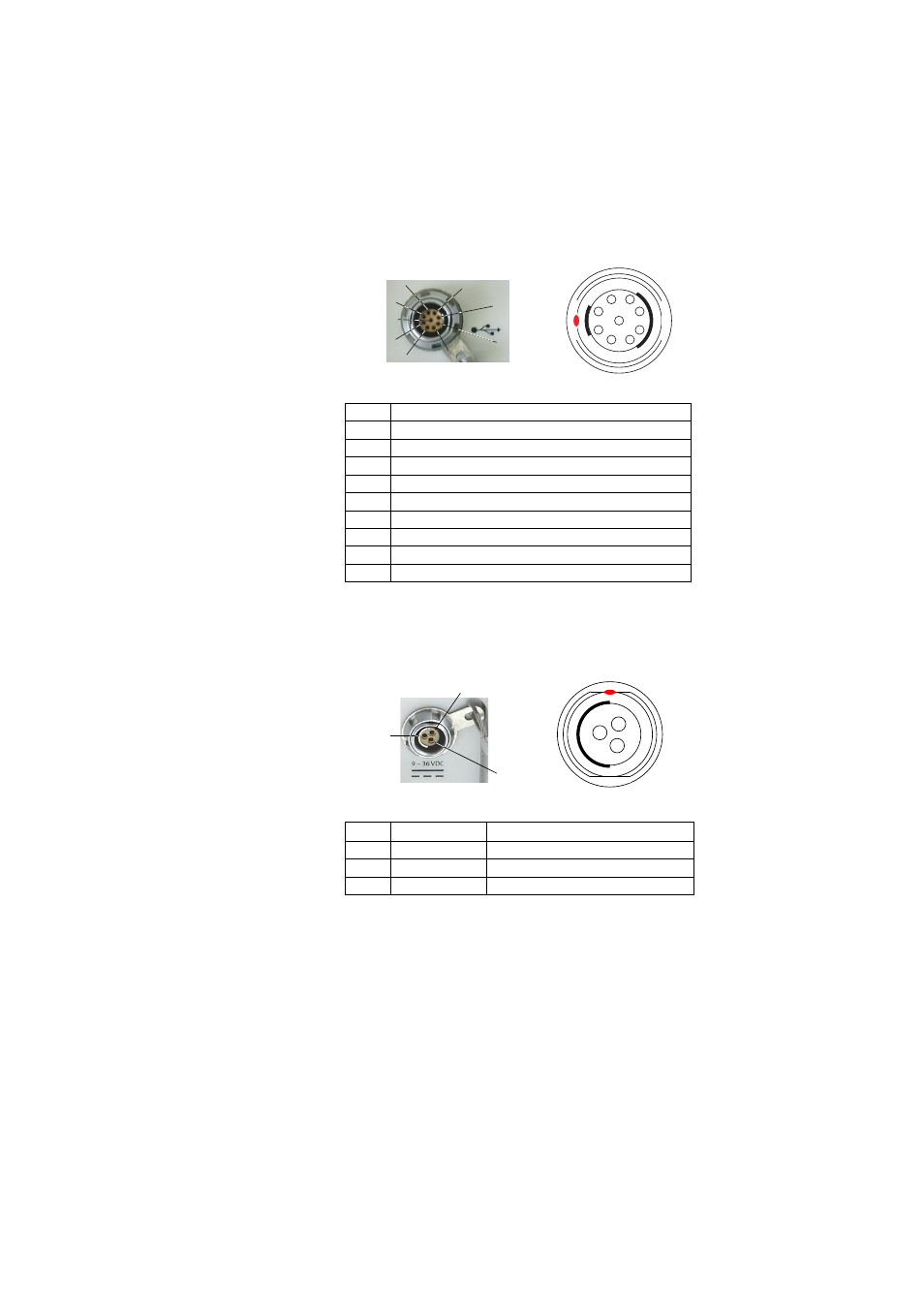

Power In On rear panel.
3-C Connector, Type: Fischer DPUC 102 A052-130, fitted
with sealing cap.
Serial Data Ports Ports A, B and F on rear panel.
Three 7-C connectors, Type: Fischer DPUC 102 A056-130,
each fitted with a sealing cap. (Port F shown on the picture
below. Ports A, B and F are similar.)
Pin Signal Name
1 NC
2 GND
3 Device (D+)
4 Device (D-)
5 Host (VBus)
6 Host (D+)
7 Host (D-)
8 Device Detection
9 NC
1
2
3 4
7 8
9 6
5
7
6
8
3
2
9
4
1
5
Pin Signal Name Description
1 GND External Power Ground
2 PWR External Power Input (9-36 V DC)
3 - NC
1
2
3
1
2
3
