19
Receiver Description
• Fourth line: Number of files currently stored on the USB
mass storage device.
Right screen:
• First line: Total space occupied by the files currently
stored in the internal memory.
• Second line: Nominal size of the internal memory.
• Third line: Total space occupied by the files currently
stored on the USB mass storage device.
• Fourth line: Nominal size of the USB mass storage device.
About the “*” symbol:
• It can only appear at the end of the first or third line.
• Where placed, it indicates that this storage medium is
used for data logging.
What if there is no USB mass storage device connected to the
receiver?
• Parameters relevant to the USB key size and space used
and available are void (three dots displayed instead).
• Number of files is forced to “0”.
Receiver
Identification
Screen

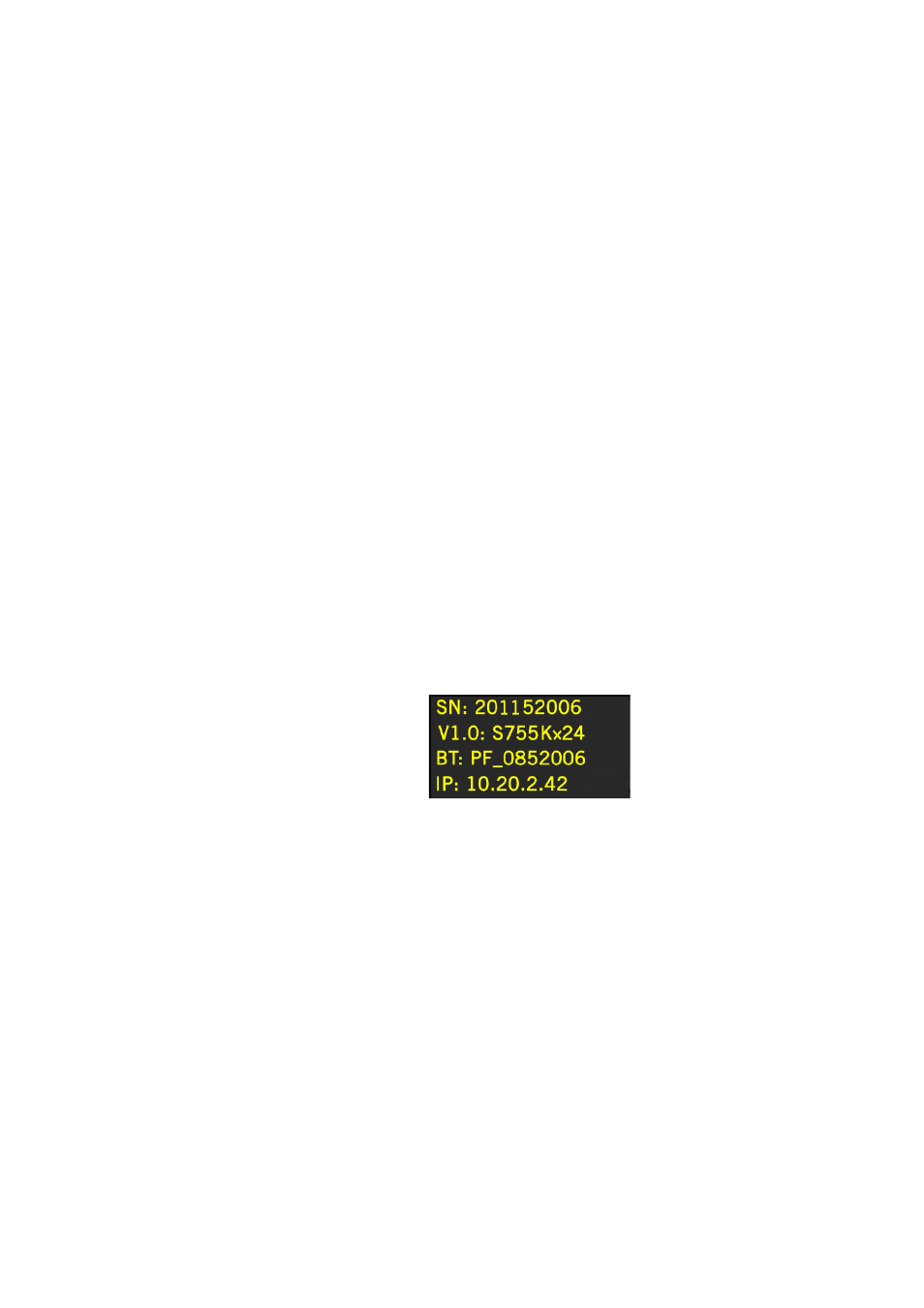

From any of the two Memory screens, press the Scroll button
to access the Receiver Identification screen. See example
below.
• Receiver Serial Number
• Firmware Version
• Receiver Bluetooth Identifier
• IP Address
Position
Computation
Screen
From the Receiver Identification screen, press the Scroll
button to access the Position Computation screen. This
screen displays the receiver position. The displayed
coordinates will be:
• either WGS84 coordinates (“W84” displayed at the
beginning of the last line; coordinates are latitude,
longitude and ellipsoidal elevation)
