Receiver Description
Follow the
instructions below to
charge a
battery. Removing
the Battery from
the ProFlex 800
Unless the battery has already been taken out, do the
following:

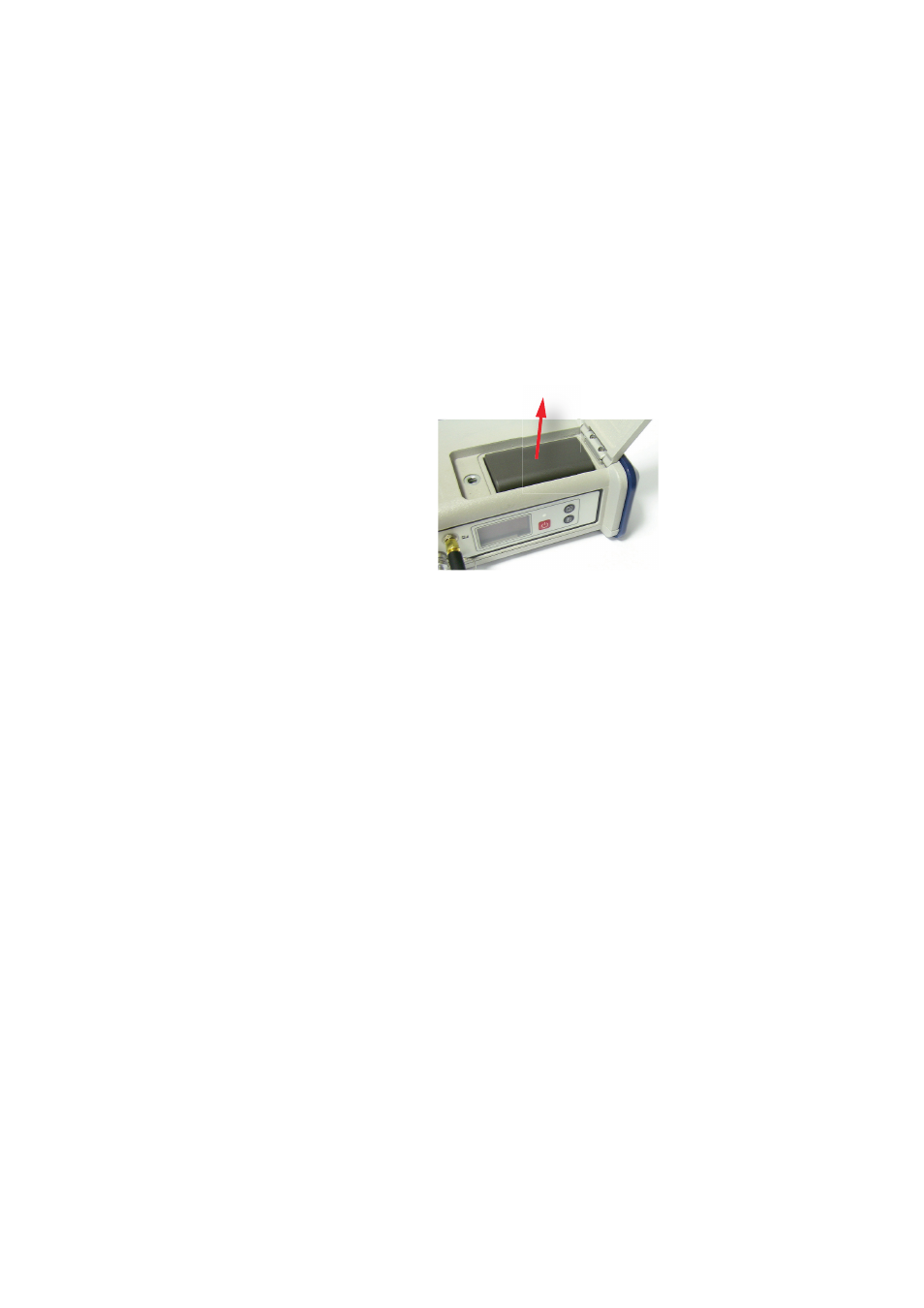

• Open the battery trapdoor, accessible from above the
ProFlex 800, by lifting and then turning the quarter-turn
finger screw anticlockwise. This releases the two springs
located under the battery, pushing the battery slightly
upward (see picture).
• Grab the battery and take it out of the compartment.
Charging the
Battery
The battery charger comes with a separate universal AC
adapter fitted with a 1.5-m output cable. The AC adapter
includes a choice of four different, detachable plug types.
Follow the instructions below to operate the charger.
• Choose the plug type that is suitable for your country.
• Secure that plug on the AC adapter.
• Connect the cable from the AC adapter to the battery
charger.
• Give the battery the right orientation with respect to the
charger [1] (the battery terminals should come into
contact with the two sets of connectors on the charger),
then push the battery against the plate and slide it forward
[2] until it locks into place.
