44
Using the Web Server
TCP/IP Connection
Through the Public
Internet
In this case of use, the receiver and the computer are
connected to different local networks. Here the
communication will necessarily take place through the public
Internet.

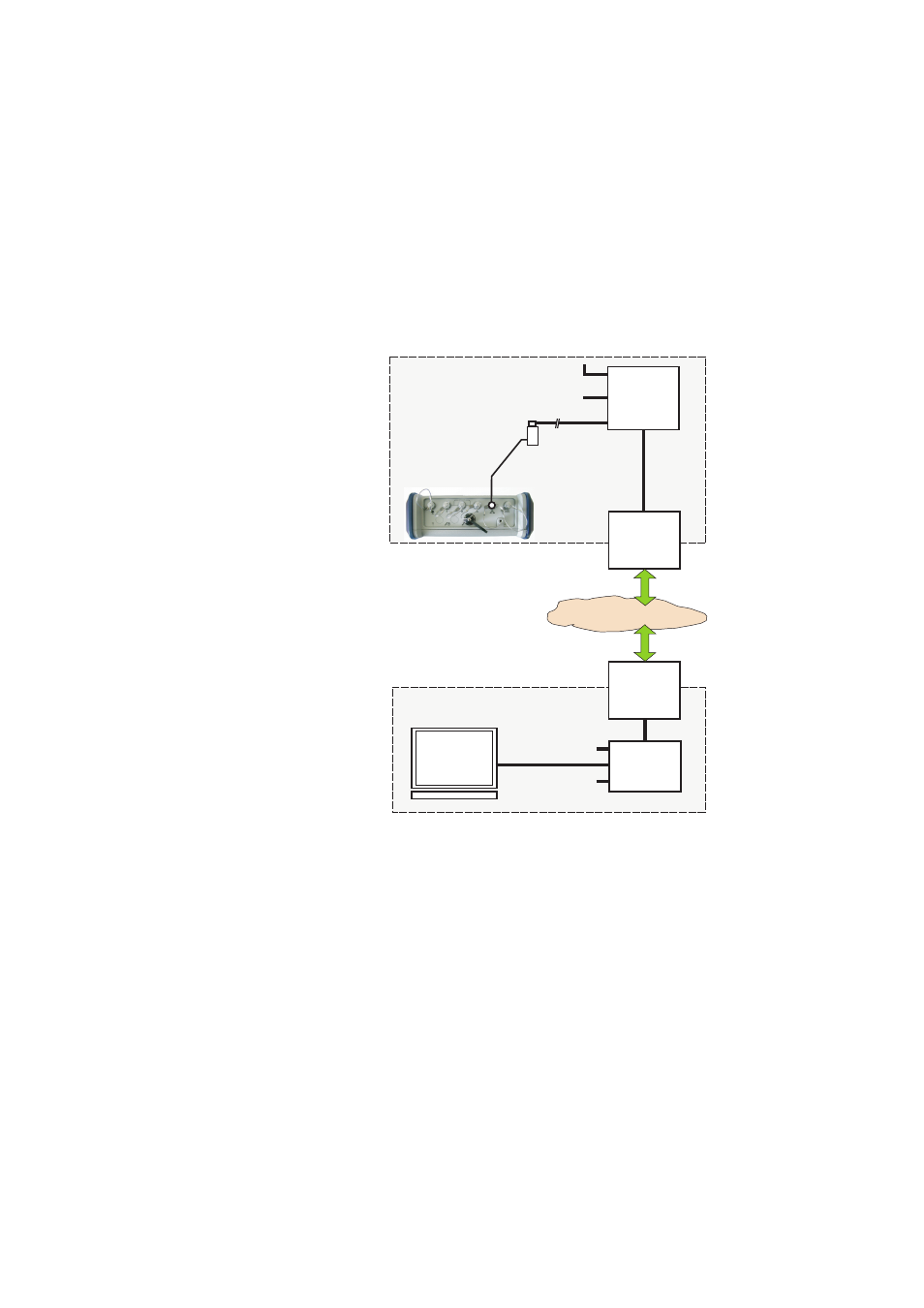

The connection diagram typically is the following.
In this configuration, the IT Manager should take all the
necessary steps for users to be able to access the ProFlex 800
through the public IP address of the local network. Obviously,
the IP address read on the receiver display screen is NOT the
one to be provided to users.
It will therefore be the responsibility of the IT Manager to
provide the receiver administrator with the appropriate
connection information ( or host
name).
Ethernet cable Hub or
Switch
Computer
Public IP address
Remote User
Local Network
Local Network
P/N 70242
6
Ethernet cable RJ45
Hub or
Switch
Public Internet
ProFlex 800
Gateway
or ADSL
Modem
Gateway
or ADSL
Modem
Ethernet port
