294
Using Serial Commands
Running a Series of Commands
First of all, you need to create a TXT file containing all the
commands you want the receiver to run. Save the file to the
“MyDevice/FAST Survey/Data/” folder. Then do the following:
• Use the Send File button in the upper part of the window
to select the TXT file and send it to the receiver.

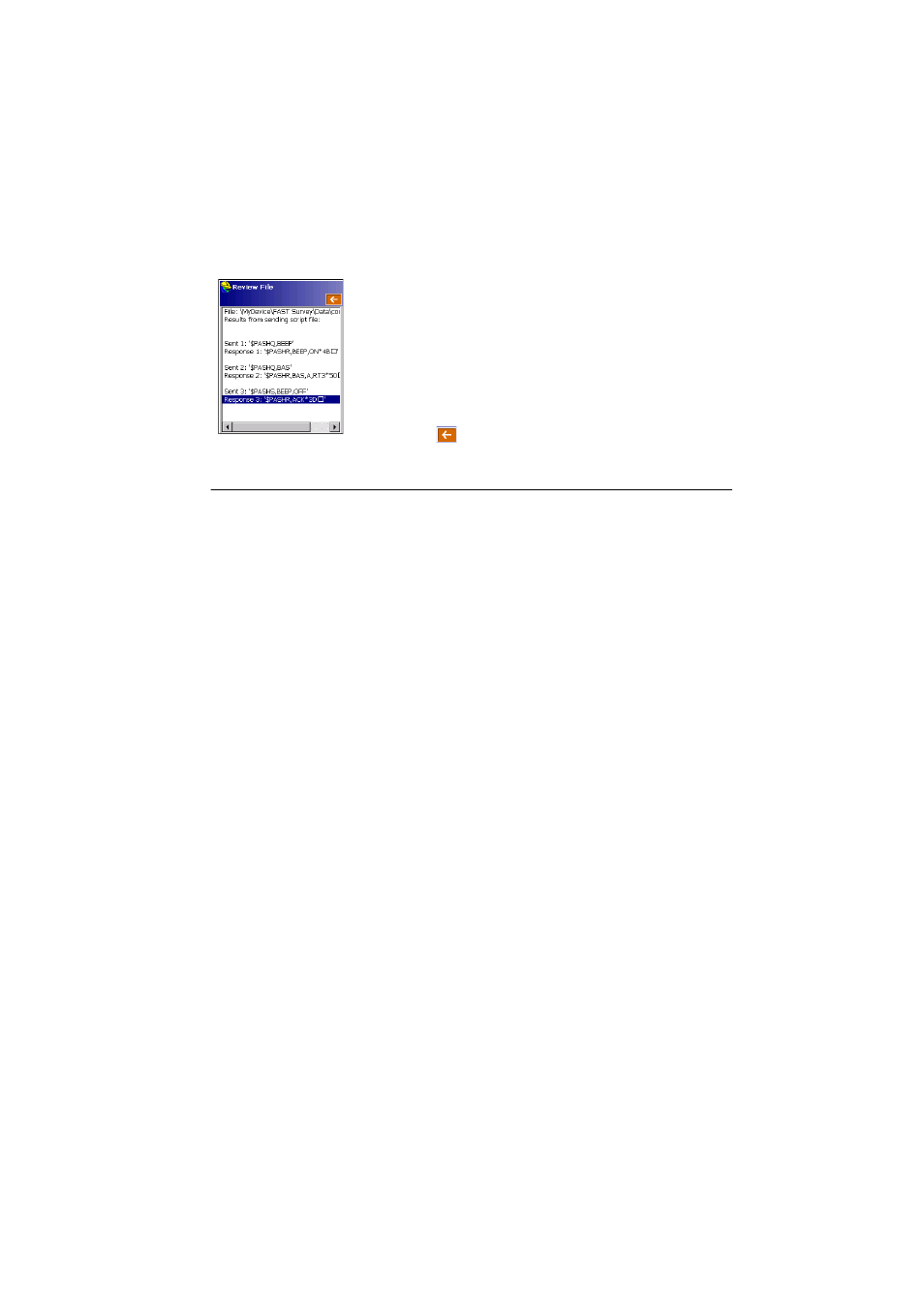

• Once the receiver has executed all the commands
included in the file, a new window is displayed listing
each of the commands run in the receiver as well the
resulting receiver response line(s).
• Tapping will take you back to the command window.
Applying Commands Through TCP/IP
The receiver can be remotely controlled through its Ethernet
port.
By default, the Ethernet port is on and a default configuration
allows you to connect to the receiver via a non-secured TCP/
IP connection. However, if the Ethernet port is off and the
TCP/IP function has been deactivated or needs new settings,
follow the instructions below to set the Ethernet port.
Setting the
Ethernet Port
Run the following three $PASH commands through one of the
receiver’s serial ports. The syntax of the commands
mentioned below is fully described in the Set Command
Library chapter.
The choices in the last two commands should be made in
collaboration with your local network administrator.
1. $PASHS,ETH,ON: This command allows you to power up
the Ethernet port. When the port is on, the Ethernet icon
appears in the lower-right corner of the receiver screen.
Script:
$PASHS,ETH,ON
$PASHR,ACK*3D
2. $PASHS,ETH,PAR: This command allows you to choose
either a static or dynamic (DHCP) IP address for the
receiver. If you choose DHCP, you don’t need to enter any
additional parameter.
Script:
$PASHS,ETH,PAR,DHP,1
$PASHR,ACK*3D
