98 USB Protocol Suite User Manual
4.7 Navigation Tools
You can zoom in and out, and wrap packets/transactions/transfers to fit within the
screen, using the following buttons:
4.7.1 Zoom In
Zoom In increases the size of the displayed elements, allowing fewer (but larger) packet
fields per screen.
 Click on the Tool Bar.
4.7.2 Zoom Out
Zoom Out decreases the size of the displayed elements, allowing more (but smaller)
packet fields per screen.
 Click on the Tool Bar.
4.7.3 Wrap
Select Wrap to adjust the Trace View so that packets fit onto one line. If a packet is longer
than the size of the window, the horizontal scroll bar can be used to see the hidden part
of the packet.
 Click on the Tool Bar or select Wrap under View on the Menu Bar.
4.8 CrossSync Control Panel
The CrossSync Control Panel allows you to select analyzers for synchronization and
manage the recording process.
4.8.1 Launching the CrossSync Control Panel
To launch CrossSync from the USB Protocol Suite software application, select the Setup >
Launch CrossSync Control Panel (see the screen capture below). Or, you can launch
CrossSync from the ‘Start’ menu.

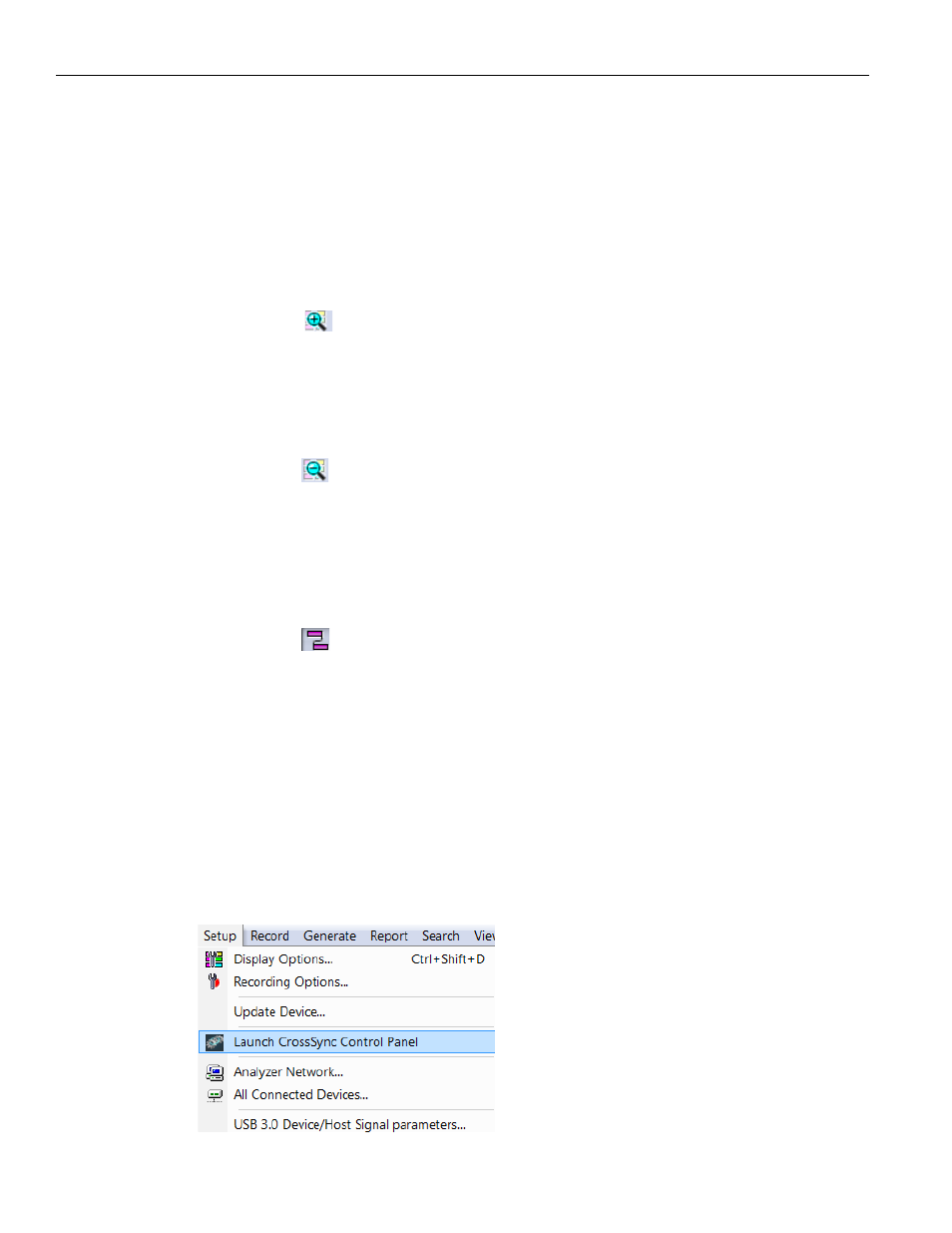

Figure 4.14: Launching CrossSync from the USB Protocol Suite Application
