USB Protocol Suite User Manual 67
Application Startup Teledyne LeCroy Corporation
 Input Signal Equalization (ISE) Settings: Short, medium and long time constant
(Current, Off, Minimum, Moderate, or Maximum)
 Pre‐Emphasis Settings: Short and long time level (0 to 15) and 
short and long time decay (0 to 7)
 Output Power Level: Current, or 213 mV to 1294 mV
You can also Load the default settings or Load the last applied settings.
Input Equalization
Depending on the hardware version of your system, there are two ways to control
input equalization. One method requires you to set three time constants, or use
the defaults. The other method allows you to select either Hi or Low, or use the
default. The method appropriate for your connected hardware is enabled.
For advanced users only: You can change the values for the “other hardware” by
checking Enable Both Eq modifications. For example, you might want to do this if
you use the same file for both Advisor T3 and Voyager M3i.
Voyager M3x
To add a device, click Add to display the USB 3.0 Device ‐> Analyzer ‐>
Host Signal Parameter Profiles dialog.

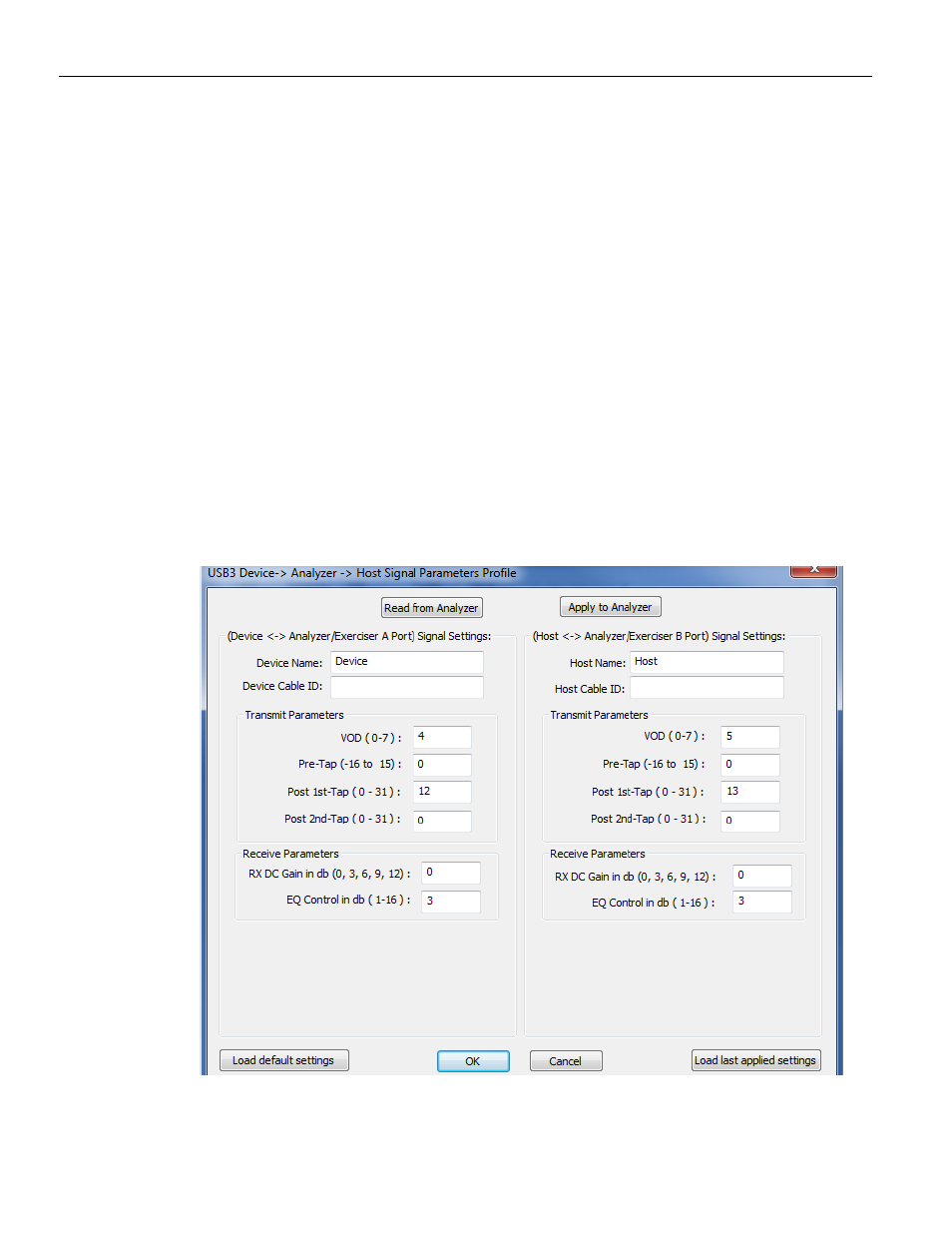

Figure 3.9: USB 3.0 Device Analyzer Host Signal Parameters Profile Dialog M3x
These signal conditioning values are similar to the ones used for M3i and AT3. Limits on
values accepted are shown in the dialog.
