Teledyne LeCroy Corporation Hide All Transactions Except Stream Id Numbers
132 USB Protocol Suite User Manual

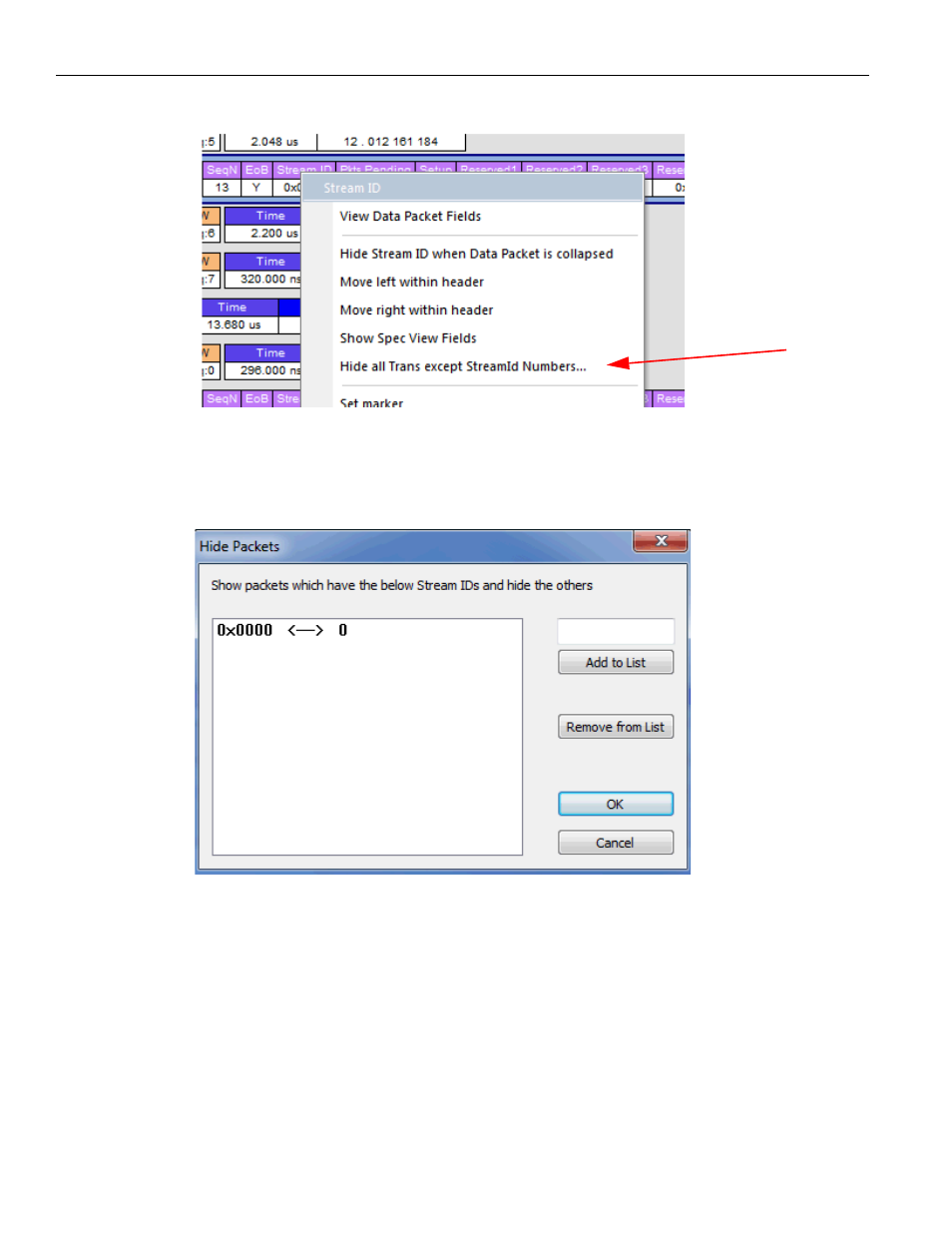

Figure 5.33: Right‐clicking on the Stream Id field of a USB 3.0 Data Packet
Right‐click on the Stream Id field of a USB 3.0 Data Packet and select Hide all Trans except
StreamID Numbers.... to display the Hide Packets dialog (see
Figure 5.34 on page 132 ).
Figure 5.34: Hide Packets Dialog
This allows you to select the stream Id's you want to display. Add the items to the list that
you want to show, and remove Stream Id's that you want to hide. Selecting the ones you
want to see is done because the range of Stream Id's is much too large to specify the ones
you want to hide explicitly.
