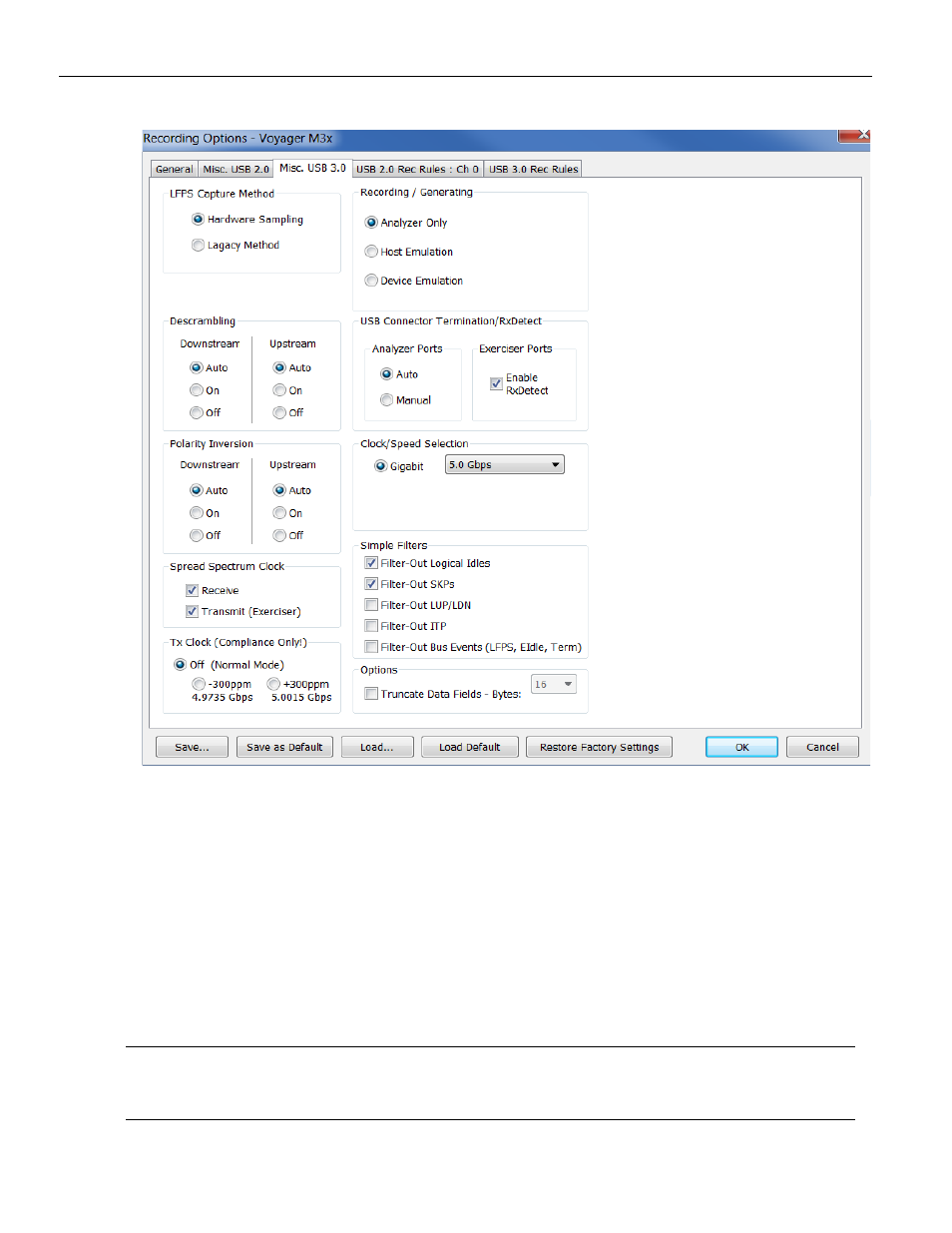

Figure 10.12: Recording Options - Misc. USB 3.0 for Voyager M3x
LFPS Capture Method ‐ The Voyager M3x has a special circuit designed to capture LFPS
with very accurate timing. If for some reason a device or host is found which is not
electrically compatible with this new design, the user can switch to the Legacy method
which is used on previous USB 3.0 analyzers (Voyager M3x only).
For Recording Ports, select USB 3.0 Connectors, MMCX, or 
Custom (DS:USB 3.0, US:USB 3.0). The custom option allows you to change the recording
channels to use a mix of MMCX and USB 3.0 connectors (Voyager M3/M3i only).
For Descrambling, Downstream and/or Upstream, select On, Off, or Auto.
For Polarity Inversion, Downstream and/or Upstream, select On, Off, or Auto.
Note: For Spread Spectrum Clock, select Transmit (Exerciser) to apply Spread Spectrum Clocking to the
transmitter. To adjust the receivers to be more tolerant to Spread Spectrum Clocking, select
Receive. The Transmitter and Receive commands are independent of each other.
