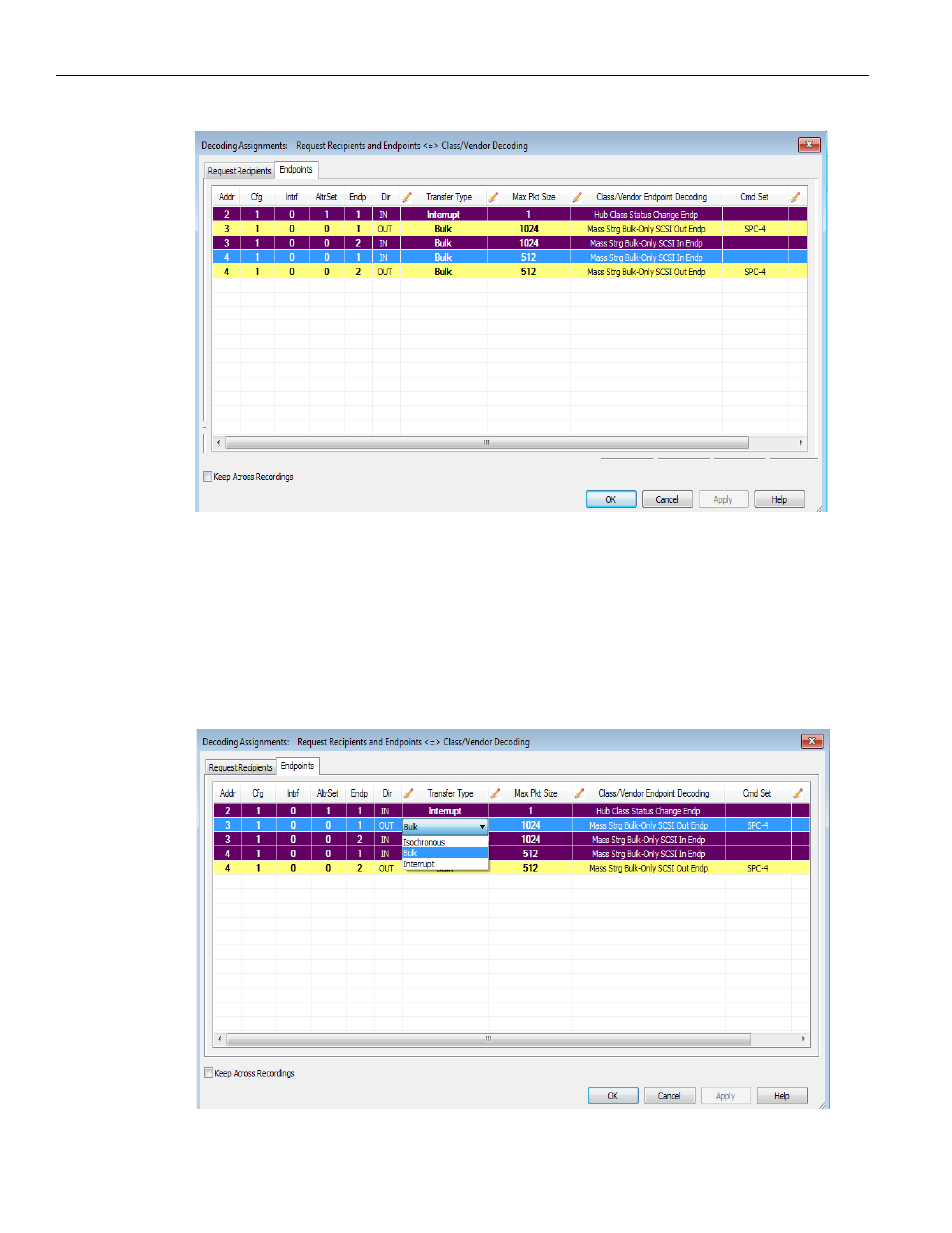

Figure 8.3: Request Recipients and Endpoints - Class/Vendor Decoding Endpoints Tab
The Endpoint field (Endp) shows all Endpoints found in the trace file. The displays
shows the Host, Address, and Direction for the recipient. On the right are the names
of Class/Vendor Endpoint Decoding groups currently assigned to endpoints. If blank,
no decoding is assigned for a recipient.
The Transfer Type field shows all transfer types found in the trace file.
4. Display the Transfer Type drop‐down menu:
Figure 8.4: Transfer Type Drop-down Menu.
