USB Protocol Suite User Manual

383

USB 3.0 Electrical Test Modes

Teledyne LeCroy Corporation

6. To display subsequent Compliance patterns, click the Send 1 Ping button once for

each advance to the next pattern. The following photos show the appearance of the
signals for each CP pattern, as captured by a Teledyne LeCroy oscilloscope. 
Use these photos as guides to verify that you are seeing expected patterns.

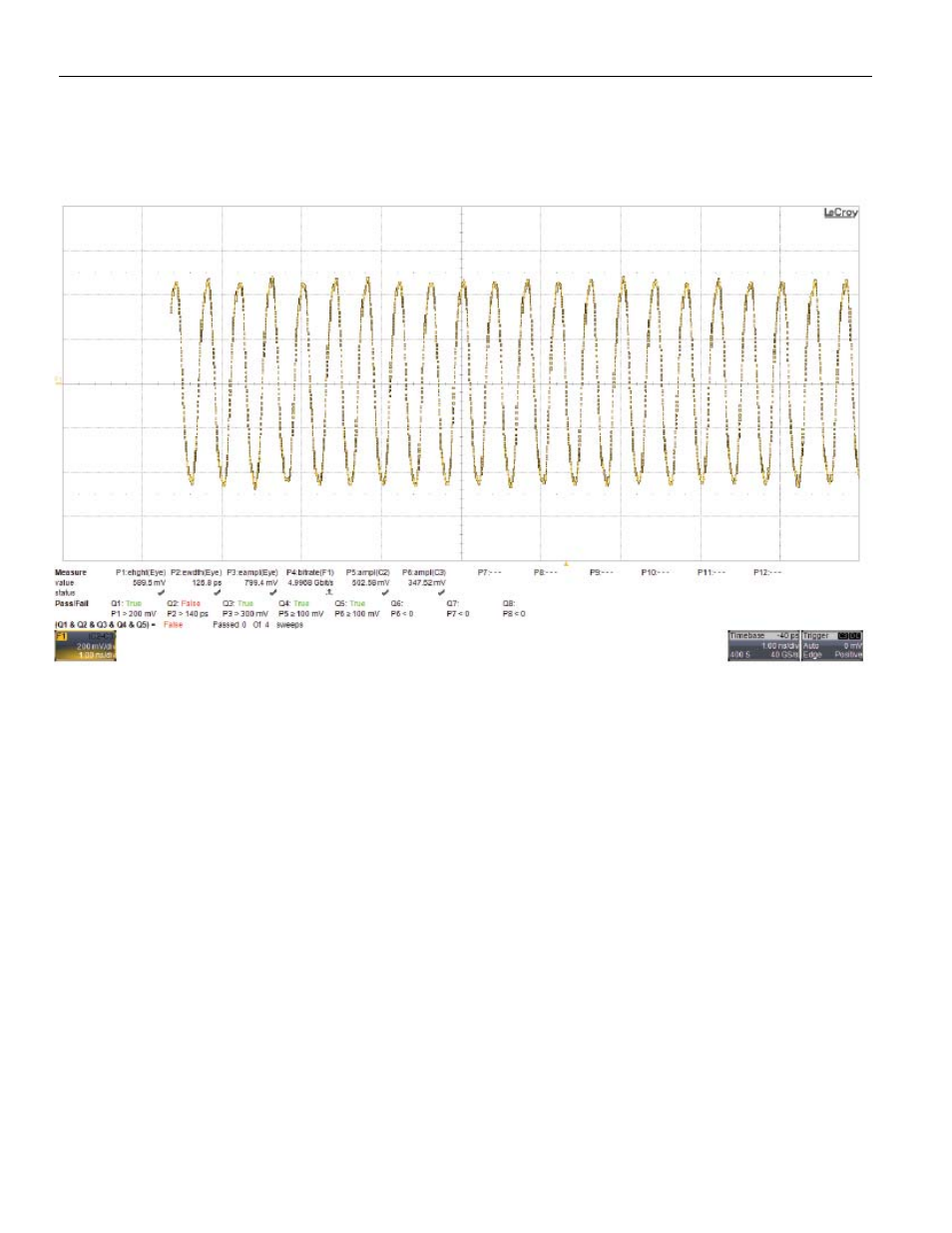

Figure 12.24: Typical CP1 Pattern
