Exclusion: Exclude packets matching any of the specified events. 
Exclusion works with the other two options: 
Select Union AND Exclusion (=Exclude packets with ANY of the following fields) or 
Intersection AND Exclusion (=Exclude packets with ALL of the following fields.)
6. Optionally set the search Direction and Origin.
7. Optionally check to Search in Hidden. This option looks for the selected items even
if you have currently hidden them.
8. Optionally check to Find All. This option opens a new Trace View window that
contains ONLY the items for which you are searching. Subsequent searches or
actions cannot modify this window, so it never contains any other packets. Use this
option only when you want to check how many packets a specific search criterion
puts in the Main Trace View.
9. Click OK.
After the search finishes, the program displays the packets meeting the search criteria.
The resulting item will be shown as selected in the view.
Packet Selection works with Find.
6.8.1 Data Pattern Mask and Match
If you select Data Pattern as the Event Group in the Find dialog, you can set the Bitmask,
Mask, and Match for each bit.

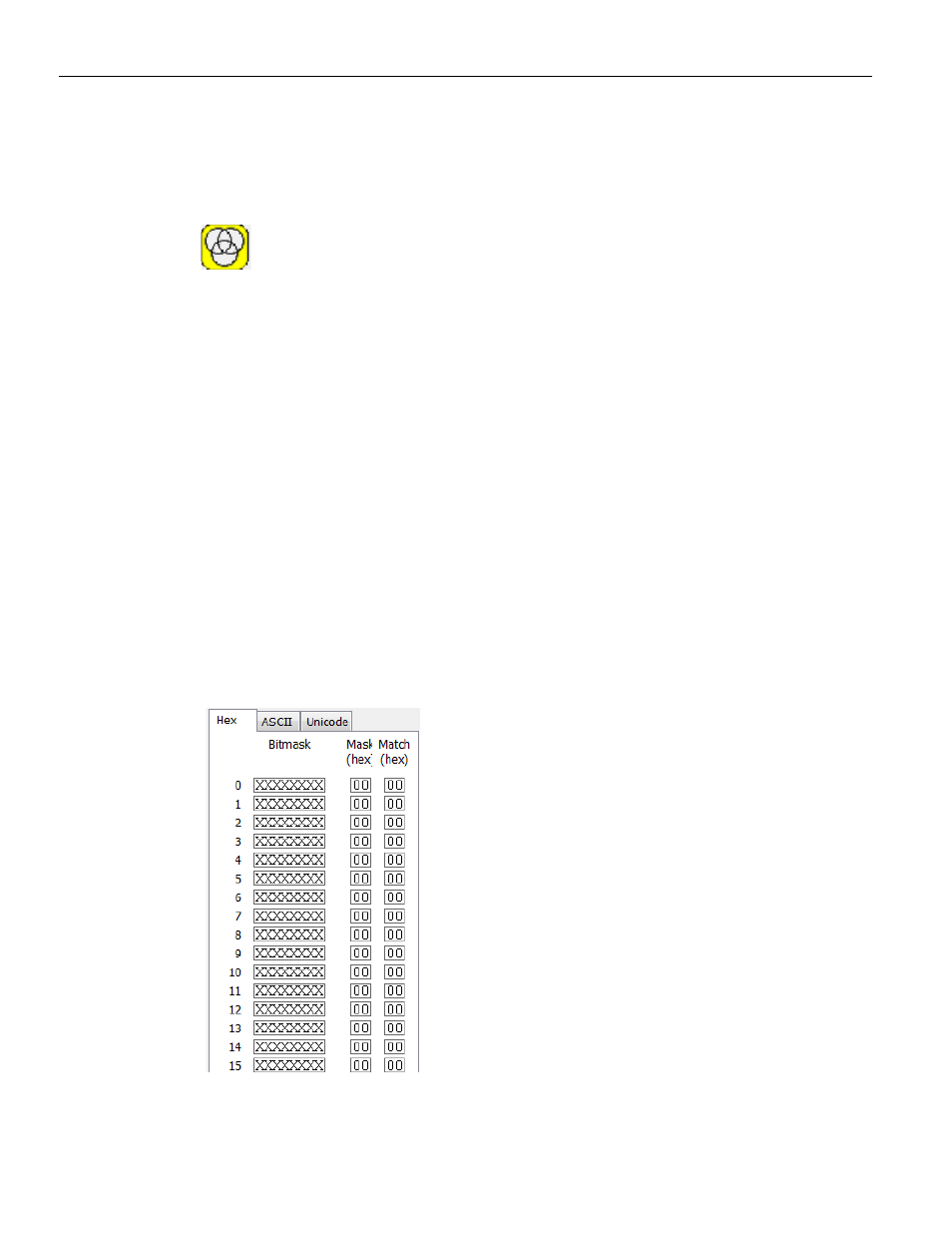

Figure 6.31: Data Pattern Mask and Match Dialog
Bitmask and Match always correlate. When you set Bitmask or Match. the other changes
to maintain their correlation.
